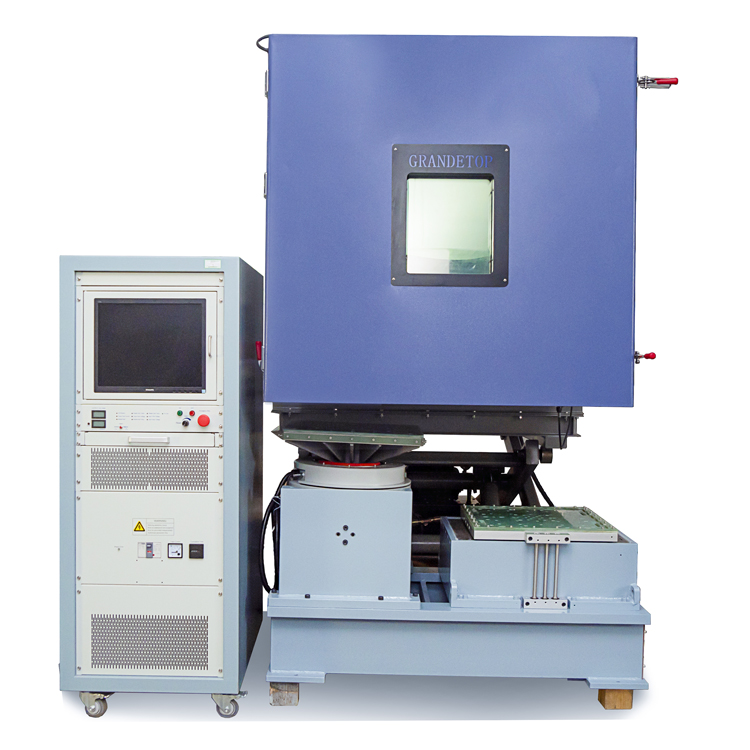

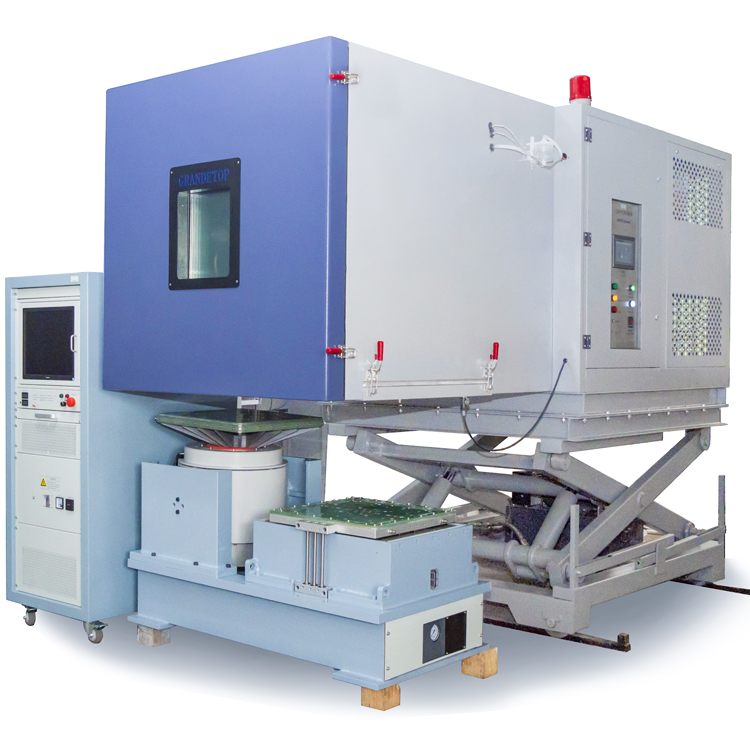

Integrated Temperature Humidity Vibration Chamber provides flexibility in your test lab. It can be used as a standalone temperature chamber or humidity chamber with thermal change rates from 5°C to 30°C per minute. An AGREE Chamber can also become a vibration chamber when interfaced with an electodynamic shaker or repetitive shock vibration table.
AGREE Chambers were originally designed for the military, defense, and aerospace industries to perform temperature, humidity, and vibration tests. AGREE Environmental Chambers have been adapted to perform reliability, qualification, and Environmental Stress Screening tests for a wide range of industries including electronics, automotive, and telecommunications industries.
This diversifies the chamber’s utility because it can be used as a standalone temperature environmental chamber or for combined environmental testing. Greandetop® AGREE Chambers were originally designed for the defense and aerospace industry to perform temperature, humidity, and vibration tests conforming to MIL-STD 781 and 883. Since then, AGREE Vibration Chambers have been adapted to perform reliability, qualification, and Environmental Stress Screening (ESS) for a wide range of industries including electronics, aerospace, automotive, and telecommunications industries.
Feature
1,Capacity: 63 L to 60000L
2,Temperature Range:-160℃,-150℃,-120℃,-100℃,-80℃,-70℃,-60℃,-40℃-20℃,0℃~+150℃,200℃,250℃,300℃,400℃,500℃
3,Humidity Range: 20%～98%R.H （10%～98%R.H；5%～98%R.H Optional）.
4,Cooling rate: 2-3℃/min (standard), 3°C/min, 5°C/min, 8°C/min, 10°C/min, 15°C/min, 20°C/min, 25°C/min, 30°C/min linear or nonlinear average as option Option Liquid Nitrogen Systems: The thermal chamber's conditioning system features vacuum-jacketed liquid nitrogen cooling and nichrome wire heating, resulting in ramp rates of 60 to 100˚C per minute.
5,Vibration: maximum up to 1,000kN 100,000kgf , 100g
1,Full-opening door with multi-panel heated window & interior light2,Chamber floor designed to be changeable to accommodate different “floor plugs” for vibration systems. Standard floor plug provided is “solid” for non-vibration applications (other floors optional). Embedded perimeter heaters in floor plugs to avoid condensation and freeze-up, plus Teflon glides in floor slot make floor replacement very easy.3,One 50mm cable port with flexible plug centered in the left hand wall (additional ports optional)
