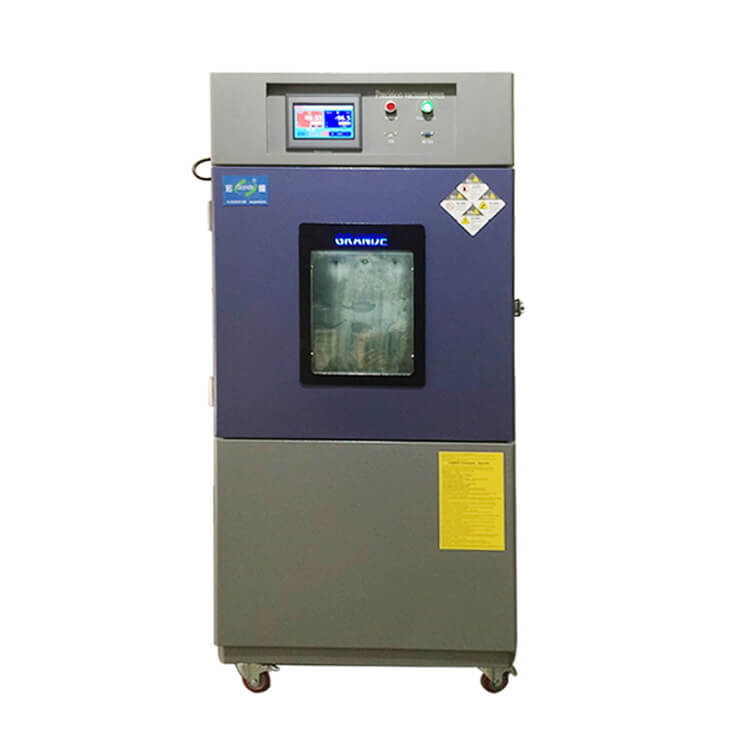

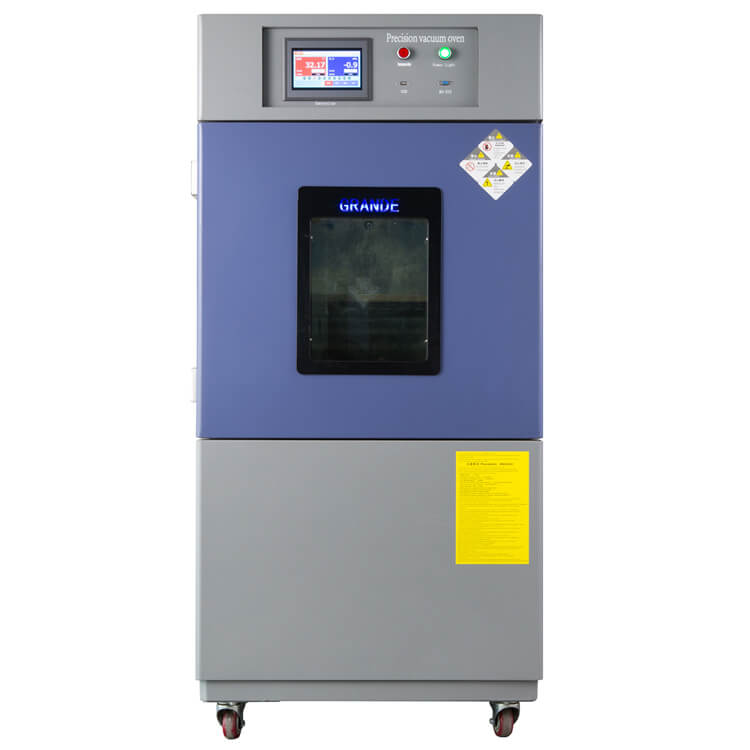

Class 100 Dust-Free Oven

Includes a HEPA filter to maintain cleanliness

These models are used extensively in heat treatment/drying or burn-in of semiconductor wafers, liquid crystals, disks,mining,medical,pharmacy,biology,electric,chemical industry,scientific research and other components and devices requiring clean air conditions.

Inquire Now Next Product

Product Details

Indoor temperature +10℃~50℃,100℃,150℃,200℃,250℃,300℃,350℃,500℃,600℃,700℃,800℃,900℃,1000℃,1200℃,1400℃,1600℃,1800℃,2000℃,Customization is available

Includes a HEPA filter to maintain cleanliness

It is applicable to such test as drying, cure melting, sterilizing in industrial and mining enterprises as well as in laboratory and scientific research institutes.

These units can also be prepared for installation in clean-room environments. Class 100 or Class 1000 cleanliness is achieved by employing a HEPA filter and a back-to-front laminar circulation system. The high-performance models (with MS suffix) provides stable performance even during heat-up or cooling.

Features

· Heat-resistant HEPA filter

· Clean meter indicates when filter needs replacement

· Compact vertical design

· SUS#304 Stainless steel interior

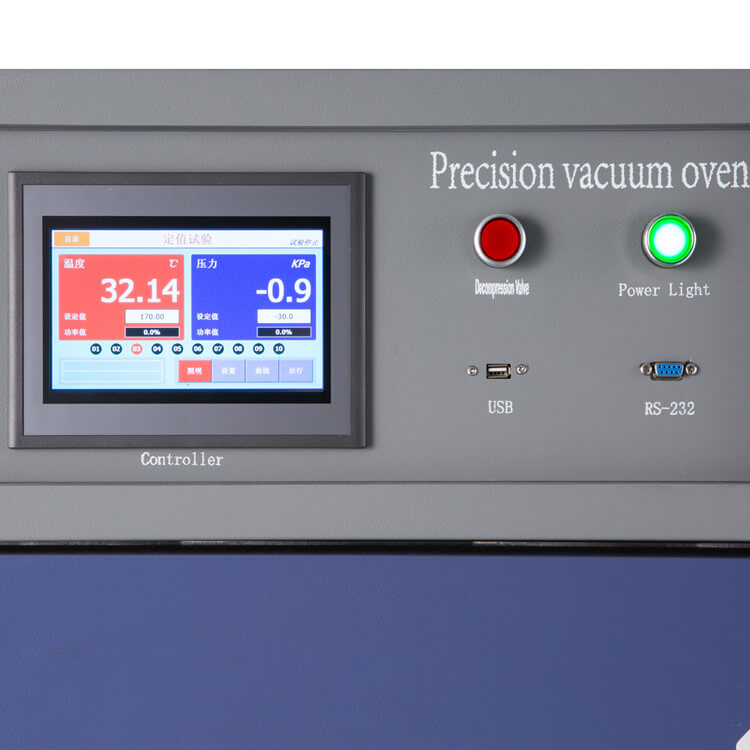

· Controller with large LED display

· Two-step programmability with functions for automatic start, stop, ramp, and repeat

· Visual and audible alarm with diagnostic fault code

· Two-step programmability with functions for automatic start, stop, ramp, and repeat

· Specimen power supply control terminal--turns specimen off if chamber faults

· Four-tiered safety system for overheat conditions

· Two shelves included standard, rated for 40 lbs. or more

Optional accessories

USB,RS-232 interface can be linked to Personal computer(PC) and achieve multi-level control & recording software management.

Technical parameters:

Model No		GIOC-072	GIOC-270	GIOC-480	GIOC-600	GIOC-1000
Volume(L)		72	270	480	600	720
Inner chamber size(mm)WHD		450400400	600900500	8001000600	10001000600	12001000600
Exterior chamber size(mm)WHD		9001050550	11001600650	12001700840	14001750840	17501750840
Temperature range		Indoor temperature +10℃～+200℃,300℃,500℃,600℃,700℃,Customization is available
Performance	Temperature fluctuation	±0.3℃
	Temperature Uniformity	±1℃
	Temperature resolution	0.1℃
	Dustproof class	Class 100,Class 1000
	Heating up tim	30min
Material	Exterior chamber materia	Stainless steel plate+ Power Coated
	Inner chamber material	SUS#304 stainless steel plate(SUS#201 when max temperature is below 200℃
	Filters	HEPA Filters
	Insulation Materia	PU& Fiberglass wool
System	circulation system	Sirocco fan
	Heating system	SUS#304 stainless steel high-speed heater
	Controller	Touch-screen controller or Omron E5AZ controller+ S.S.R.

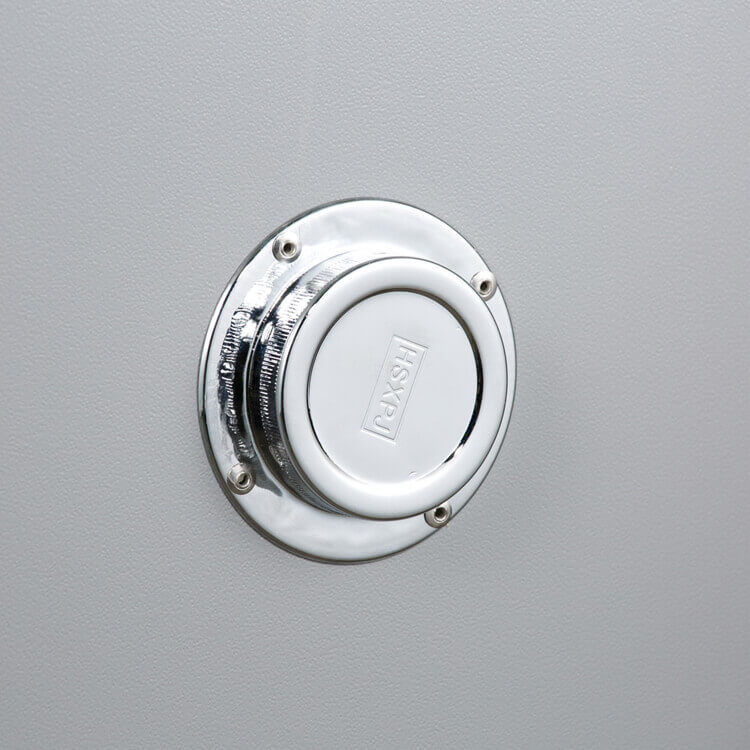

Other Components		Cable port(50mm), control status indicator lights, loading shelves(2pcs for free)
Safety protection device		Over-heat protection circuit breaker,Control system overload protection,Overload indicator lamp.
Power Supply		AC 1Ψ 110V;AC 1Ψ 220V;3Ψ380V 60/50Hz
Customized service		Welcome to Non-standard and Specail requirements,OEM/ODM orders.Customization of inner chamber size, tempreture&humidity range,ect.
The technical information will be subjected to change without notice

Class 5 cleanliness level

Class 5 cleanliness level is achieved by employing HEPA filters and a back-to-front horizontal laminar circulation system which produces uniform high-temperature airflow.

Distance of airflow in the chamber is shortened,resulting in smooth air delivery is between specimens and uniform heat treatment.Additionally,it prevents dust generated from specimens placed upstream from flowing downstream.

The upright design with instrumentation,heater,and other mechanisms gathered on the upper side saves installation space.
