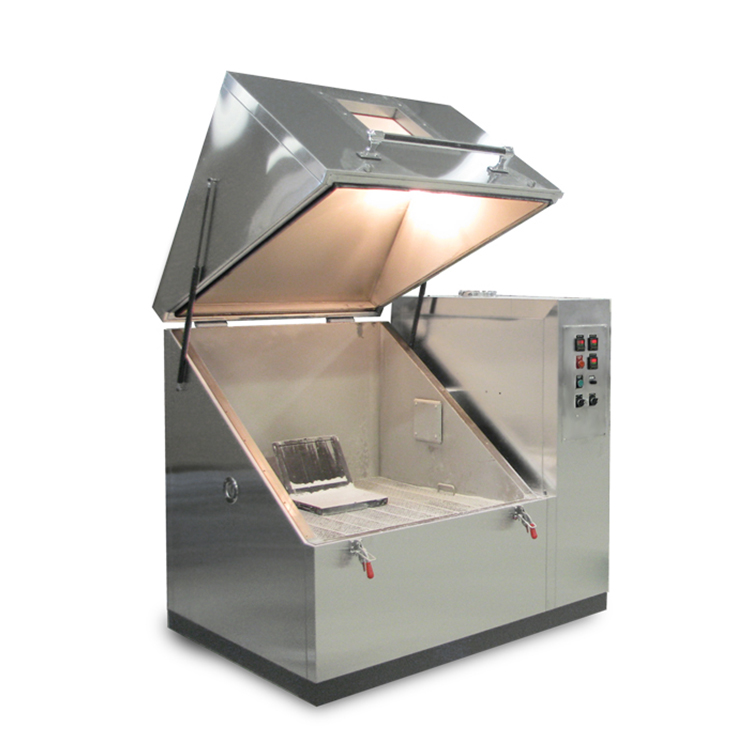

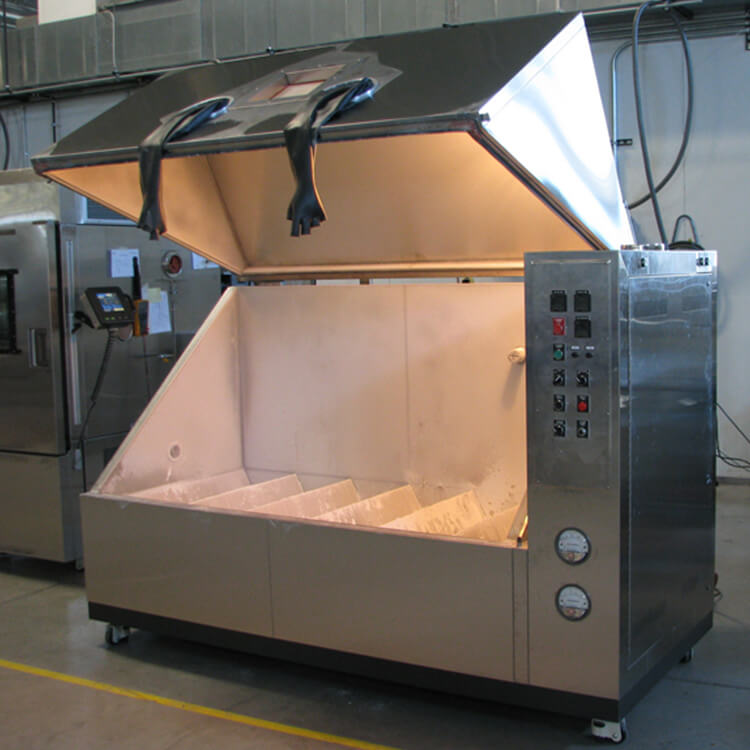

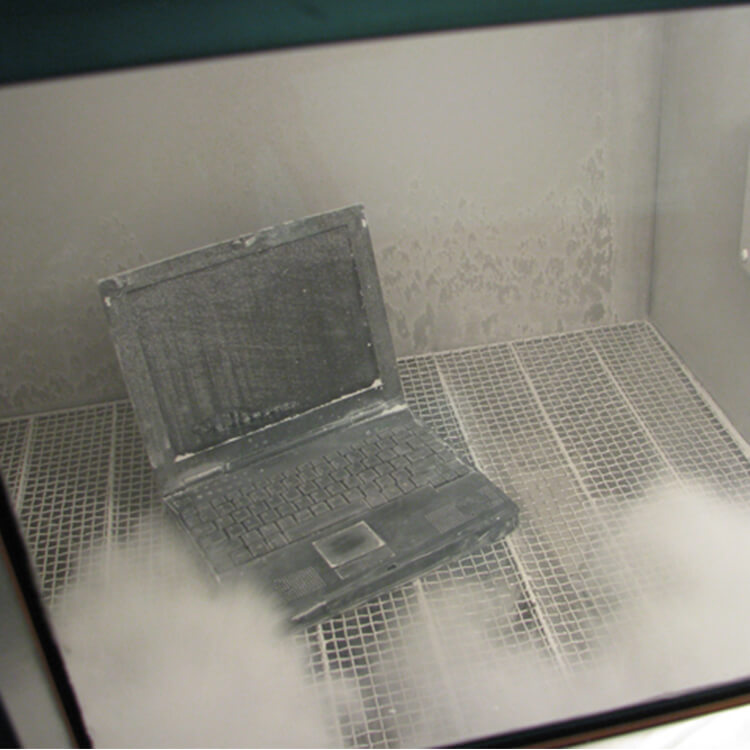

Dust resistance test chamber is designed for sealing performance test and reliability test, widely used in electrical, electronics, automobile, motorcycle, LED and other products. It is suitable for the work ability test on the shell sealing performance, product in dust free settlement, in the environment without apparent air flow or with a strong blast air and a large amount of sand dust, and similar conditions.
Applications:
Dust resistance test chamber is designed for sealing performance test and reliability test, widely used in electrical, electronics, automobile, motorcycle, LED and other products. It is suitable for the work ability test on the shell sealing performance, product in dust free settlement, in the environment without apparent air flow or with a strong blast air and a large amount of sand dust, and similar conditions.
Specifications:
Dust proof test machine
1. We are manufacturer, offer reasonable price for you.
2. Customization of non-standard models are available.
3. Major parts adopt imported brands.
Features:
• Temperature Range: environmental temperature + 5~50℃ (Adjustable)
• Humidity Range: 45%~75% (Adjustable)
• Metal net standard nominal line diameter: 50μm
• Airflow velocity in the chamber: 1.5m/s (adjustable range 0~4.99m/s)
• Environmental air pressure: 85Kpa~106Kpa
• Test dust: dry talcum powder, portland cement, smoke ash and etc.
• Line spacing between the standard: 32μm, 75μm and 250μm (There are three Metal nets)
• Selecting dust concentration control instrument: get sample through the optical principle, show the dust concentration and automatic control powder quantity that entering into the Cabinet according to the concentration of the set: (needed cleaning compressed air source configuration, require the pressure: 1~3 kg/cm³)
• Power supply: 380V 3phases 50 Hz/60Hz
Besides dust proof test machine, our business range also covers:
Thermal shock chamber, Temperature humidity chamber, Ramp rate temperature chamber, Walk-in climatic chamber, Solar radiation test chamber, Ozone test chamber, Salt spray chamber, Industrial hot air oven, Dustfree hot oven, Temperature humidity control cabinet, Rain spray test chamber, Automatic glue dispensing machine, Climate and vibration combined chamber, Burn-in aging test room, Steam aging test chamber, Ventilation aging chamber, Vibration tester, Drop tester, Tensile tester, etc.
Grande Electronics is one of the largest ce certified dust test chamber manufacturers and suppliers in China and also known as one of the famous chamber brands. Our discount product is mainly featured by good performance and flexibility and low price. Welcome to order the customized and cheap chamber made in China with our factory.
Technical parameters:
| Model No | GDT-216-F | GDT-500-F | GDT-1000-F | GDT-1000-C(IEC-529) | ||||||
| Working room(L) | 216 | 500 | ||||||||
| Inner chamber size(mm)W*H*D | 600*600*600 | 800*800*800 | 1000*1000*1000 | 1000*1000*1000 | ||||||
| Exterior chamber size(mm)W*H*D | 1050*1550*1050 | 1250*1750*1250 | 1350*1950*1350 | 1350*1950*1350 | ||||||
| Packaging volume(CBM) | 4 | 5 | 6 | 6 | ||||||
| G.W.(KGs) | 300 | 320 | 380 | 380 | ||||||
| Testing Type | F1 | F2 | F3 | IEC60529 | ||||||
| C1 | C2 | |||||||||
| Concentration of dust(mg/m3) | >60,000 | >3000 | >100 | >5,000 | >100 | |||||
| Testing Temp. | 20℃±15℃ | |||||||||
| Humidity.Range | 45%RH～85%RH | |||||||||
| Flow rate of dust(M /S) | Not specified | 5m/s | 10m/s | |||||||
| Testing Time | Swirl time | 5s | No | |||||||
| Rest time | 15Mins | |||||||||
| Total time | 5H | 8H | 8H | 2H | 6H | |||||
| Material | Inner chamber material | SUS#304+Powder Coated | ||||||||
| Exterior chamber material | SUS#304 | |||||||||
| Other Components | Chamber lamp,Wiper,Casters with adjusters | |||||||||
| Power Source(K.W.) | C 1Ψ 110V;AC 1Ψ 220V;3Ψ380V 60/50Hz 4KW | |||||||||
| Customized service | Welcome to Non-standard,Specail requirements,OEM/ODM orders. | |||||||||
| Customized service | Welcome to Non-standard,Specail requirements,OEM/ODM orders. | |||||||||
| The technical information will be subjected to change without notice | ||||||||||
