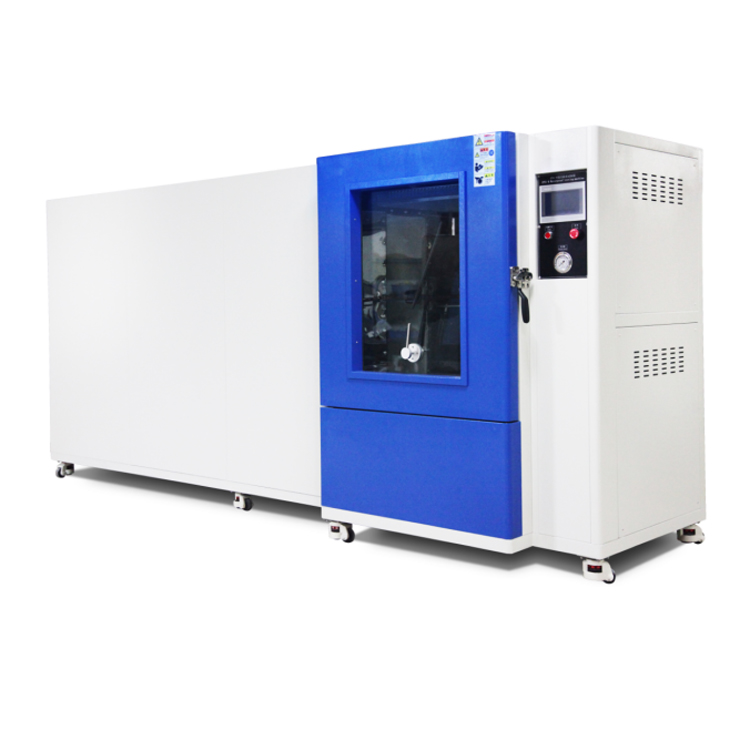

IPX1-6/9K Comprehensive Waterproof Test Chamber

IPX1-6/9K Comprehensive Waterproof Test Chamber

Application Background: The destruction of products and materials by natural water (rain, sea water, river water, etc.) causes economic losses that are difficult to estimate every year. The damage caused mainly includes corrosion, fading, deformation, strength decline, expansion, mold, etc., especially electrical products due to rain caused by short circuit and easy to cause fire. Therefore, it is an essential key procedure to carry out the shell protection water test for specific products or materials.

Technical Parameters:

1, Description	IPX1-6/9K Comprehensive Waterproof Test Chamber
2, Model	IPX1-6/9K-R400
3, Pictures For Reference	For Reference Only
4, Gereral Introduction	Application Background: The destruction of products and materials by natural water (rain, sea water, river water, etc.) causes economic losses that are difficult to estimate every year. The damage caused mainly includes corrosion, fading, deformation, strength decline, expansion, mold, etc., especially electrical products due to rain caused by short circuit and easy to cause fire. Therefore, it is an essential key procedure to carry out the shell protection water test for specific products or materials.General Application: outdoor lighting, household appliances, auto parts and other electronic and electrical products.
	Equipment Function: The main function of this equipment is to test the physical and other related properties of electronic and electrical products, lamps and lanterns, electric cabinets, electrical components, automobiles, motorcycles and their parts under the weather conditions of simulating rain, splashing and spraying. After the test, the performance of the product is judged to meet the requirements through verification, so as to facilitate the design, improvement, verification and delivery inspection of the product.
5, Executive Standard	IEC60529:1989 +A1:1999 +A2:2013《Degrees of protection provided by enclosures(IP Code)》14.2.1, 14.2.2, 14.2.3, 14.2.4 clauses and requirements of Figures 3&4, and EN60529, GB/T 4208, DIN40050-9, ISO26053, IEC60529, etc.
6, Feature	l Suitable for IPX1, IPX2, IPX3, IPX4, IPX5, IPX6, IPX9, IPX9K waterproof grade test.l The external chamber is made of SUS304# stainless steel plate, and the surface is sprayed with baking paint.l Rain drop board, turntable, swing pipe and so on are made of SUS304# stainless steel plate processing, to ensure long time use without rust.l Box type structure; With water tank, recycling water; The water storage tank is equipped with high and low water level alarm detection, temperature control and protection devices.l Transparent observation window on the door (tempered glass material). LED lights are installed in the inner chamber to facilitate observation of internal testing.l Flow and pressure gauge: waterproof professional customization, more accurate flow and pressure; It is measured by a national third-party measurement organization.l The nozzle contact position is brass tapered design, and the needle can be replaced without tools; A stainless steel mesh protective cover is installed under the needle to effectively prevent the test operator's head from accidentally touching the test needle.l IPX3-4: The swing tube drive adopts domestic high-quality stepping motor, and the swing tube speed and angle are accurate and adjustable.l IPX5-6: Made according to the specifications of IEC60529 (as shown in the figure below): l IPX9, 9K: The nozzle and pressure calibration system are manufactured according to the specifications of IEC60529 (as shown in the following figure): l Filtering measures: standard high-precision filter can effectively filter impurities in tap water; The filter element can be replaced regularly.l Turntable drive: domestic high-quality stepping motor is used, and the speed and angle can be set on the touch screen (adjustable); It is accurate and stepless within the standard range, and can automatically control the positive and negative rotation (positive and negative rotation: suitable for power on test with samples to prevent winding).l The test chamber is equipped with a sample power socket (AC220,10A). The power on and power off time of the sample power can be controlled through the program: power off (0-999min) - power on (0-999min) - power off (0-999min), which is applicable to the power on and power off of the sample during the test.l The test time can be set on the touch screen, and the setting range is 0-999min (adjustable).l UI intelligent core control system adopts 7-inch touch control system+Panasonic PLC, and electrical components adopt imported brands such as LS and Omron.
