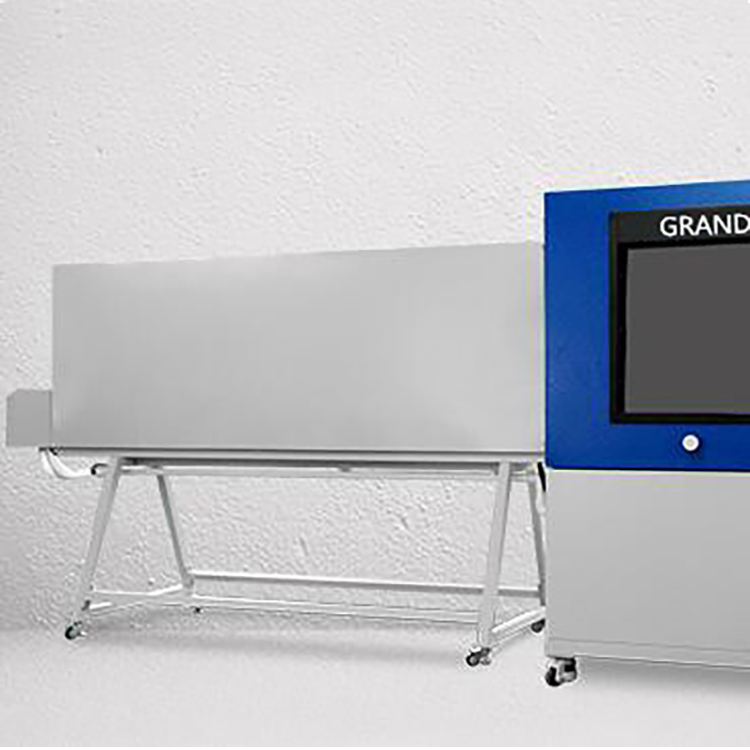

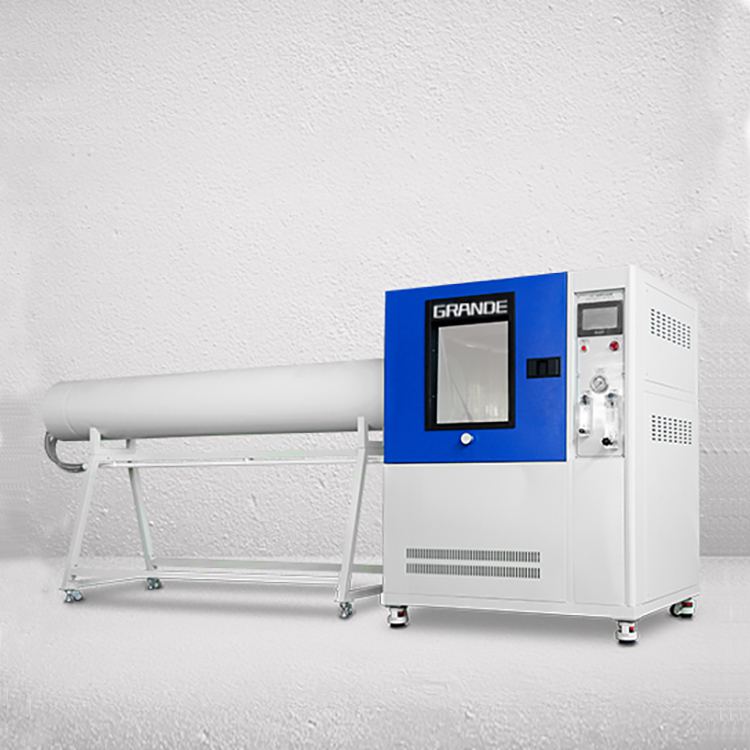

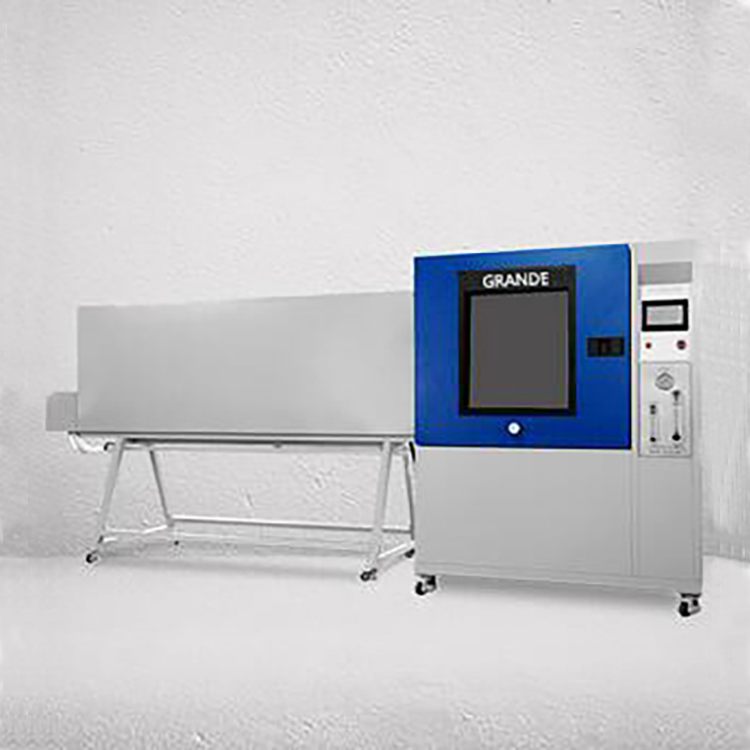

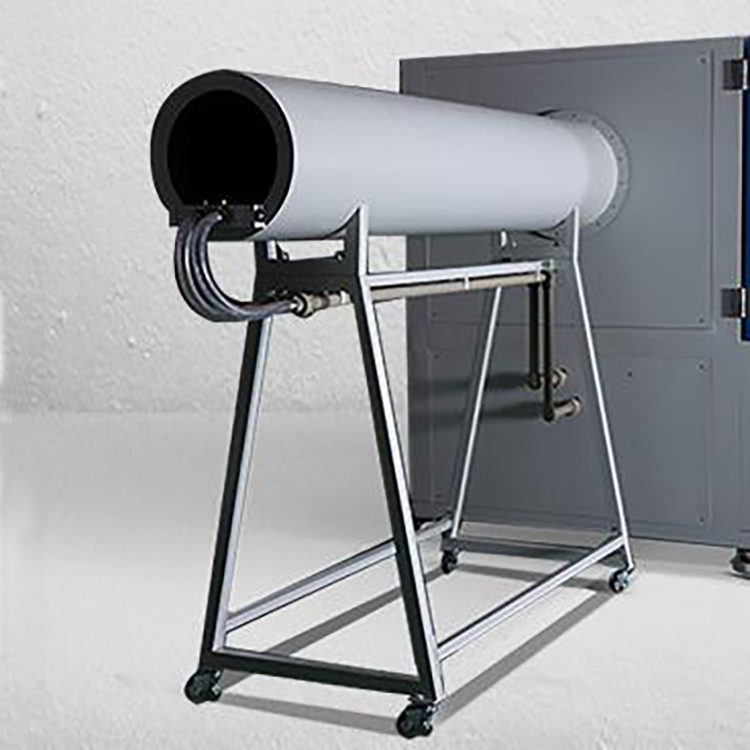

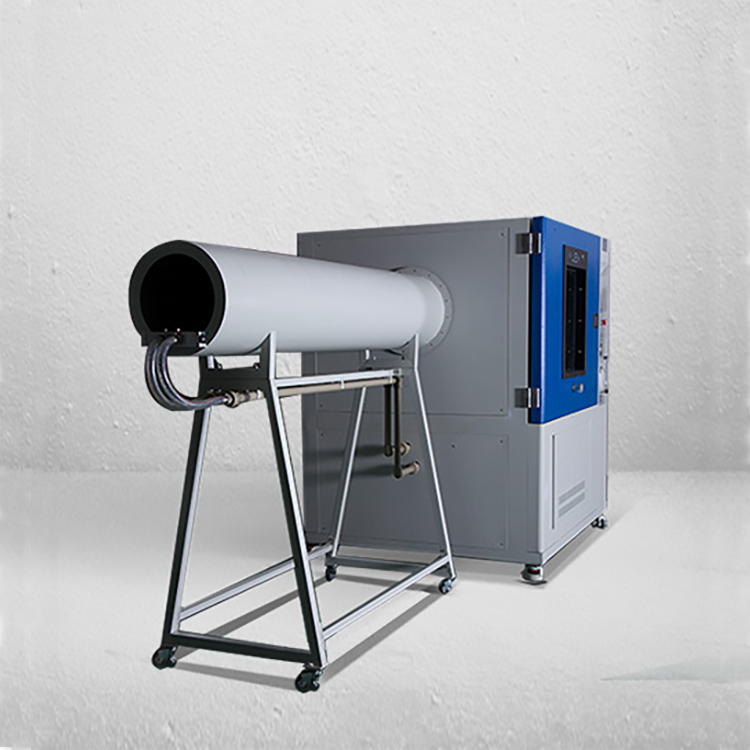

IPX123456 Rain and Splash Water Test Equipment

1. Meet GB4208-2008/IEC60529:2001 and GB 7000.1-2015/IEC 60598-1:2014 Part 9 (Dustproof,Antisolids and waterproof) which is waterproof test standard of IP65.
2. The test sample will be put or installed on the center of the half-round sinuous pipe and make the bottom of the test samples and the oscillating axis in a horizontal position. During test, the sample would spin around the center line.
3. Can manual default the test parameters, complete testing automatically shut off the water supply and pendulum pipe angle automatic zeroing and automatic eliminate seeper, avoid scale blockage needle tip.
4.  PLC, LCD panel test procedure control box, stainless steel curved pipe, alloy aluminum frame, stainless steel shell.
5. Servo drive mechanism, guarantee the pendulum pipe angle of precision, the overall pendulum tube structure for hang a wall.
6. Best after sales service: One year free parts maintenance.
7. Customization is available & welcomed.

Compound integrate IPX3 IPX4 Rain Test Equipment

According to International Protection Marking IP CODE GB 4208-2008/IEC 60529:2001,IPX3 IPX4 Rain Test Equipment are designed by and made by GRANDE,and reference to GB 7000.1-2015/IEC 60598-1:2014 Part 9(Dustproof,Anti-solids and Waterproof) Waterproof test standard.

Introduction&Application:
Box rain test chamber/ IP Rain spray test chambers

Configured for your specific tests

Grande makes rain and spray testing easier by offering a standard chamber capable of published and OEM proprietary test methods.

The standardized design can be configured for the rain/spray tests you need, eliminating the guesswork in buying a chamber. The system is based on the specification requirements, and can also accomplish individual automaker’s tests, as well as electrical-enclosure tests.

Our Design

Grande's modular design allows you to add on additional features, depending on the number and type of tests required. One possible choice is to integrate the spray system with a regular temperature and humidity chamber to save money and floor space, while also creating an opportunity to simulate actual operating conditions your product may experience.

Our system uses multiple control solenoids to vary the water's spray volume/pressure. A holding tank prepares the water to the desired temperature, if required. A pump ensures the water is delivered in the proper pressure range. The water is fed to a motorized manifold that rotates the spray arms. Each spray arm has an adjustable valve to allow finer control of the spray.

Testing capabilities

The specification is modeled after and doesn’t differ greatly. Details about the nozzle types and the rotating nature of the spray arms and product table are also included in the requirements. Additionally, drip and car wash tests are also specified.

Heavy splash/shower

· S1 Spray room temperature water with 40 nozzles at 14.2 psi (1 kgf/cm2) for 30 minutes. The flow rate of the water shall be 6.5 gallons/min. (24.5 L/m).

· S2 Spray room temperature water with 40 nozzles at 42.7 psi (3 kgf/cm2) for 60 minutes. The flow rate of the water shall be 10.3 gallons/min. (39.2 L/m).

Light spray/rain

· R1 Spray room temperature water with two nozzles at 4.3 psi (0.3 kgf/cm2) for 10 minutes. The flow rate of the water shall be 0.8 gallons/min. (3.2 L/m).

· R2 Spray room temperature water with two nozzles at 1.4 psi (0.1 kgf/cm2) for 10 minutes. The flow rate of the water shall be 0.5 gallons/min. (1.9 L/m).

Dripping Water

Examples of OEM automotive manufacturers' requirements

· Heat the sample to a temperature above boiling, then spray with cold water for about two minutes. Repeat cycle.

· Heat the sample to boiling temperature, then spray with room temperature water for about fifteen minutes. Repeat cycle.

· Simulate a car wash by using high pressure spray.

Features

· Rotating rain and spray nozzles designed to JIS specifications

· Speed control for the rotating spray nozzles

· Stationary product shelf - A rotating shelf is optional: see options

· Water pressure regulators, gauges and flow meters

· Special high-volume floor drain system to rapidly drain water out of the chamber

· Interior chamber size is the smallest possible area using the JIS specified nozzles

Applicable Test Methods

· JSA JIS (Japanese Industrial Standard) D 0203 "Method of Moisture, Rain and Spray Test for Automobile Parts"

· SAE (Society of Automotive Engineers) J2245 "Recommended Practice for Splash and Spray Evaluation"

· SAE J575 "Test Methods and Equipment for Lighting Devices and Components"

"The cabinet shall be equipped with a nozzle(s) which provides a solid cone water spray of sufficient angle to completely cover the sample device. The centerline of the nozzle(s) shall be directed downward at an angle of 45 degrees to the vertical axis of a rotating test platform... The device shall be rotated about its vertical axis at a rate of 4.0 ± 0.5 rpm... The water spray test shall continue for 12 hours." ref: SAE J575.

Optional/additional test capabilities:

· Temperature/humidity controlled rain chamber:  Includes -20 to 150°C and 20 to 98%RH capabilities

· Water recirculation:  Allows re-use of the treated rain water

· Water conditioning:  Allows the water to be cooled (5 to 20°C) prior to spray

· High pressure spray:  Adds capability to meet car wash test requirement

· Drip nozzle:  Adds capability to meet drip test requirement

· Rotating table:  Rotates the sample for full exposure to spray

Features

1、 IP65 Waterproof test chamber is applied for workshops,labs.,etc,to proceed with waterproof test of 【IPX5】/【IPX6】.

2、 Perfect designs,constitute test chamber and water inlet pipe,cycling use of water,energy conservation and environment protection,save the cost of construction test room.

3、 Built-in storage tank,water level float valve automatically controls water and Low-water alarm device,to prevent water pump to be broken since lack of water.

4、 Controller:Korea SAMWON TEMI880

5、 Spray gun(Airbush) can swing up and down,and the rotary table rotate,it can meet full spray on samples.

6、 IPX5/IPX6 spray flow is adjusted by flow meter，manual adjustment.

7、Inner installment have sample power socket（AC220V,10A；IP66 waterproof grade），sample power on/off time can controlled by program：power off（0-999min） —power on（0 -999min）— power off（0-999min ），apply to power on/off when sample is testing.

8、 Inner chamber installed waterproof LED light，convenience customers to observe the status of testing.

9、 Testing time can setting on touch pannel，time setting range：0-999min（adjustable），testing over，automatic stop.

10、 Added“remote operation”function：user can process parameters setting、start、stop、clear data,etc. action on mobile phone or computer。（download corresponding software）.

Material description

1、 ip65 waterproof testing chamber-out box：high quality stainless steel plate，surface spray paint，attractive and durable。

2、 ip65 waterproof testing chamber-inner box and turntable：manufacture by SUS304#，insure rustless for long time using.

3、 Control system：use colours 7〞 touch screen+Panasonic PLC（software program independent developoment by GRANDE）.

4、 Electrical apparatus element：use like LG、OMRON, etc. import brand(The wiring process meets national standard ）。

5、Water pump ：“LINGXIAO”stainless steel multistage water pump.

Model Explain：G-IPX56BS-500L

Technical parameters:

Packing list:

1,IP123456 Waterproof test chamber 1set (Standard configuration)

2,Standard parts:Water inlet pipes

3,Certificate of qualification

4,Detailed list

5,Delivery Order

Main configuration:

 Package:

(1). Strong standard wood case, inner plastic films wrapped for temperature and humidity test chamber

(2). Usually we delivery the equipment by air,by sea or by express. it depends on customer.
