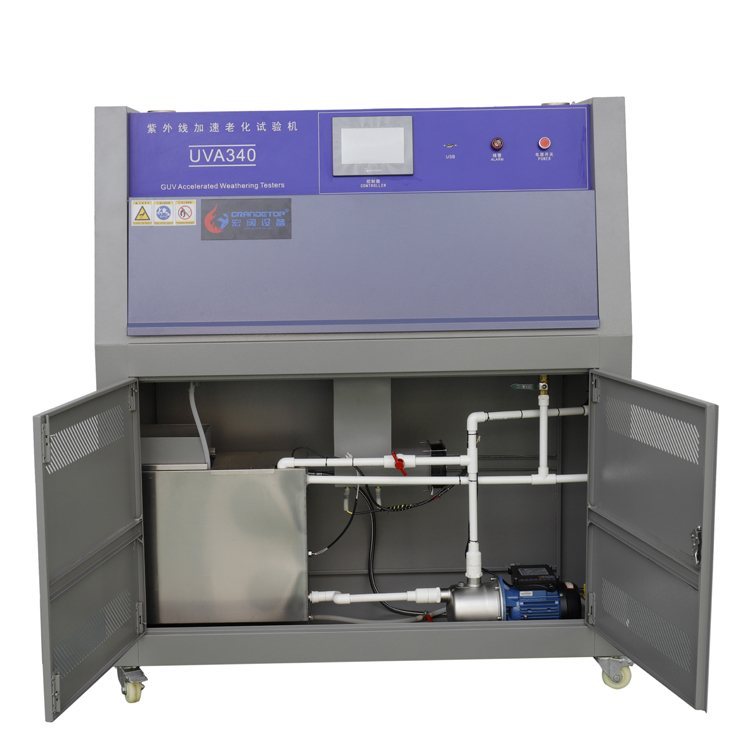

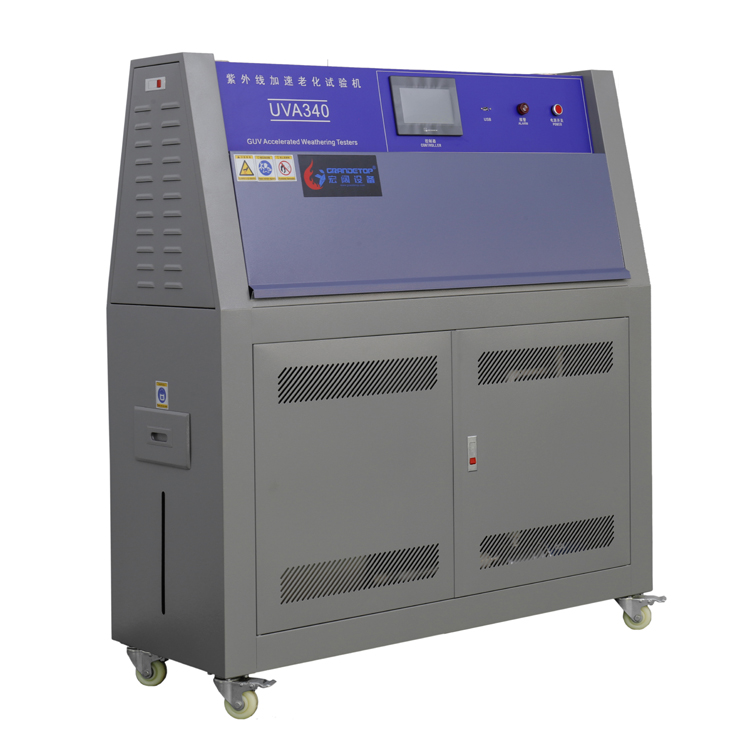

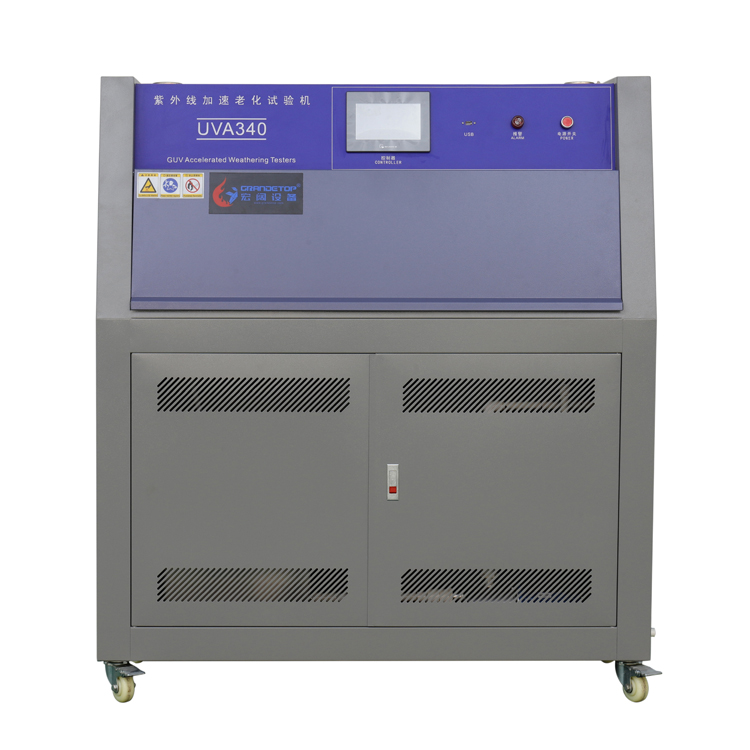

The UV Accelerated Weathering Test Chamber simulates the effect of sunlight with fluorescent ultraviolet(UV) lamps and carry out these circles automatically. While it simulates rain and dew with condensing humidity or waterspray. In a few days or weeks,the UV can reproduce the damage that occurs over months or years outdoors.

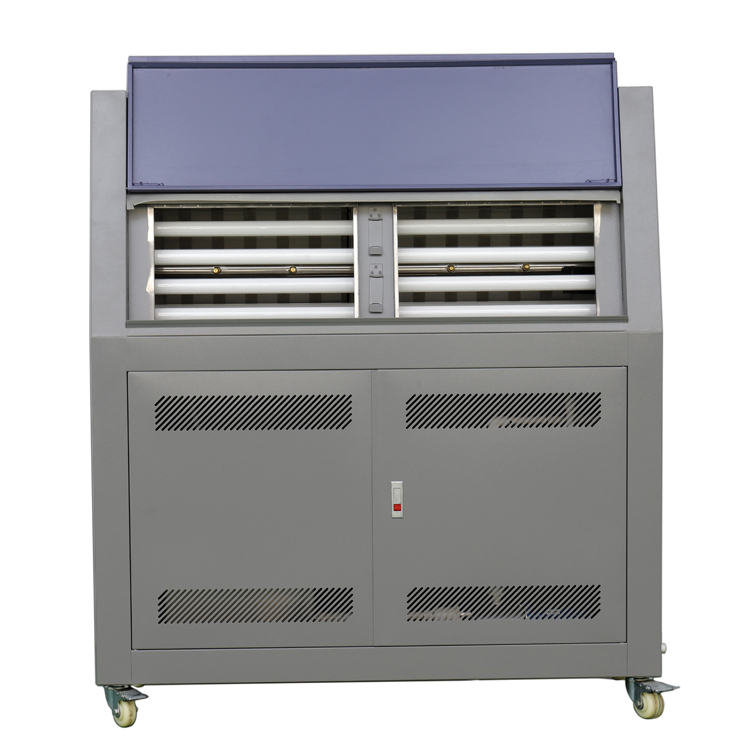

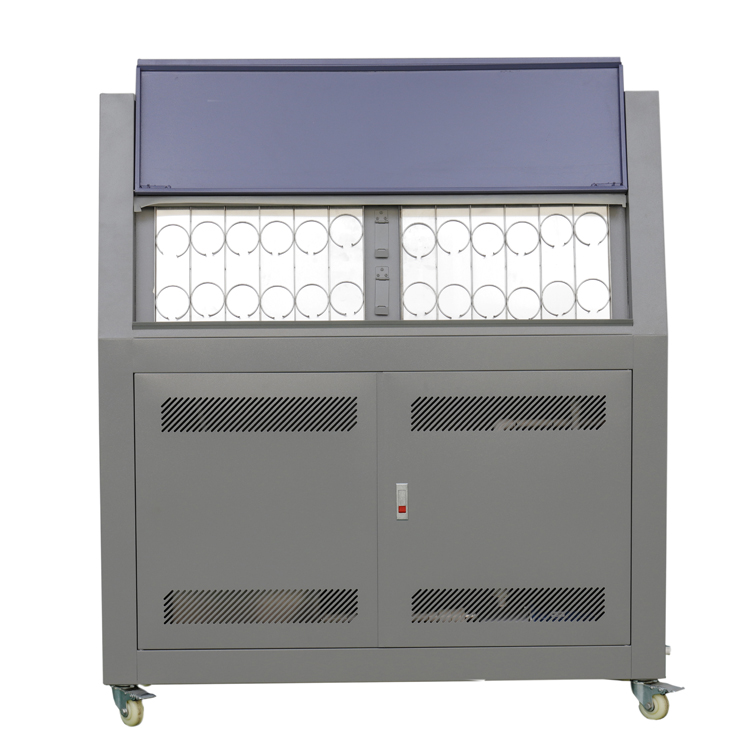

The UV aging test chamber simulates the effect of sunlight with fluorescent ultraviolet(UV) lamps and carry out these circles automatically. While it simulates rain and dew with condensing humidity or waterspray. In a few days or weeks,the UV can reproduce the damage that occurs over months or years outdoors. The damages include fading, color change, chalking, cracking, crazing, embrittlement, strength loss.,etc. The test data can help you to select the new materials or improve the performance of materials. Chamber cover introduces the two-way flip type for easy opening and closing. Test specimen and the shelf constitute the trapezidal inner wall of the chamber.
Experimental Methods:
Fix the samples on shelves and face the fluorescent lamp.There are not enough samples for selves,please fill it with black board to make sure the test chamber sealed.Testing temperature:can adopt 50，60 or 70℃.Recommend 60℃ for test,temperature of condensation is 50°C,temperature fluctuation is ±3°C.The cycle of condensation includes two cycles:1, 4 hour UV lamp and 4 hour condensation; 2, 8 hour UV lamp and 4 hour condensation.
Corresponding Standard:
ASTM G154-00A Accelerated aging test
GB/T16422.3-1997 Plastic exposure to sunlight test
ISO-4892,ASTM-4587,D4799,SAE-J2020
Technical parameters:
| Model No | GUV-178-1 | GUV-178-2 | GUV-178-3 | GUV-150-1 | GUV-150-2 Anti-yellowing bulb | GUV-230 | ||||||||
| Working room(L) | Standard | Standard | Standard | 150 Square | 150 Square | 230 Square | ||||||||
| Inner chamber size(mm)W*H*D | 500*500*600 | 700*300*1100 | ||||||||||||
| Exterior chamber size(mm)W*H*D | 1370*530 *1350 | 1050*970*1750 | ||||||||||||
| Packaging volume(CBM) | 3 | 3 | 3 | 2.5 | 2.5 | 3.5 | ||||||||
| G.W.(KGs) | 136 | 136 | 136 | 250 | 250 | 300 | ||||||||
| Performance | Exposure | √ | √ | √ | √ | √ | √ | |||||||
| Condensation | √ | √ | √ | √ | √ | |||||||||
| Irradiance display | √ | √ | √ | √ | ||||||||||
| adjustadble Irradiance | √ | √ | √ | √ | √ | √ | ||||||||
| Spray | √ | √ | √ | √ | √ | |||||||||
| Recorder | Optional | |||||||||||||
| CR-10 Calibration Radiometer | Optional | |||||||||||||
| Temperature range | RT+10℃～70℃ | |||||||||||||
| Humidity range | ≥95%RH | |||||||||||||
| UV temperature | +40～+85℃ | +40～+95℃ | +40～+85℃ | +40～+85℃ | ||||||||||
| Condensation temperature | +40～+60℃ | +40～+60℃ | +40～+60℃ | |||||||||||
| Test capacity | 48pieces(75×150mm）or （75*300mm) ,can be customized to your nonstandard request. | Customized to your nonstandard request | ||||||||||||
| Water source & consumption | Purified water or distilled water 8L/day | |||||||||||||
| Required QTY of UV lamps each year | Approx 24 pcs/year | |||||||||||||
| UV lamp optional | Optional 4pcs | Optional 8pcs | ||||||||||||

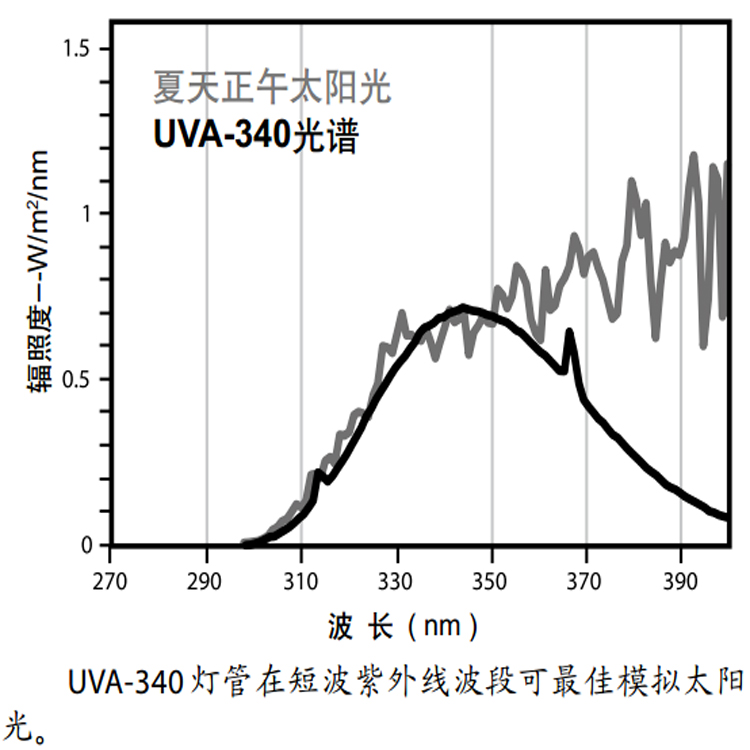

| Model of UV lamp | UVB313L、UVA340 American original imported UV313L,UVA340 | |||||||||||||
| Remarks | Regarding to UV lamps,we provide Q-labUVA340 and UVB313,in principle,UVB-313 has more advantage of accelerating aging,but UVB-340 takes more advantage of weather-proof.So it depends on your requests to make the choice. | |||||||||||||
| Power supply | AC 1Ψ 110V;AC 1Ψ 220V;3Ψ380V 60/50Hz | |||||||||||||
| Power(KW) | 1.8 | 1.5 | 1.8 | 1.8 | 1.8 | 1.8 | ||||||||
| Customized service | Welcome to Non-standard,Specail requirements,OEM/ODM orders. | |||||||||||||
