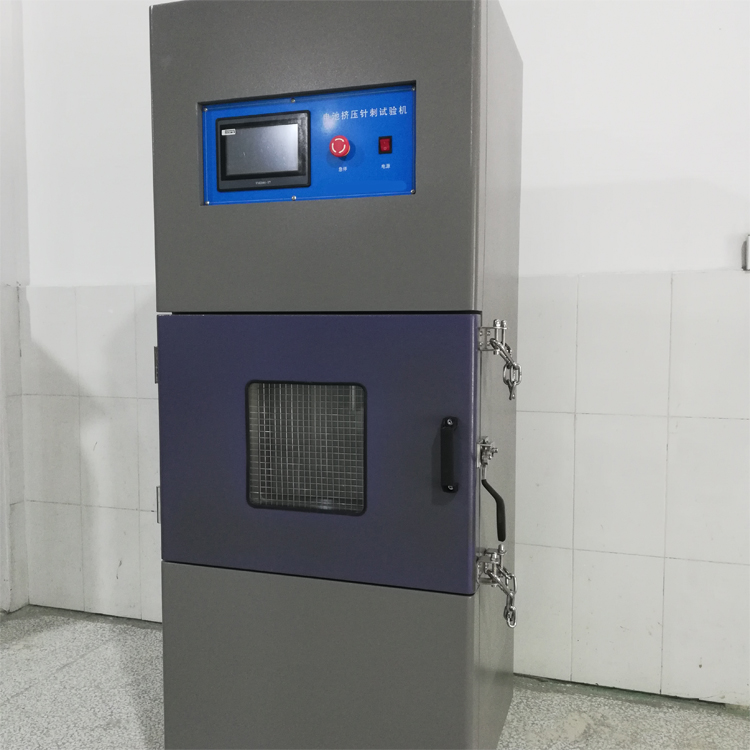

Battery Crush Squeeze Test Chamber

Standard Compliance

UN38.3 These tests simulate mechanical abuse from an impact or crush that may result in an internal short circuit.

MT/T 1051-2007 Lithium-ion batteries for cap lamp --Crush Test

UL 1642 Lithium Batteries --Crush Test

UL 2054 Lithium Batteries

GB/T 2900.11-1988 Terminology of (secondary) cell or battery

YD 1268- 2003 The safety specification and test method for lithium batteries and charger--crush test

SJ/T 11169-1998 Standard for lithium batteries crush test

GB/T 8897.4-2002Primary batteries: Safety of lithium batteries --crush test

SJ/T 11170-1998 Standard for household and commercial batteries --crush test

YDB 032-2009 Back-up Lithium-ion battery for telecommunications

QB/T 2502-2000  General specification of lithium-ion battery --crush test

Specifications

1. Factory direct sale

2. Certificate:ISO

3.Can be customized

4.Good after-sale service

5.Warranty: 24 months

Features

1. The wire enclosed with metal fire-proof cover, which is available to prevent the flame during testing process.

2. Lighting system is designed to observe the internal testing process;

3. Nail Penetration/Crush Force controllable within range from 250N to 13KN ,meet different standards;

4.Wire hole provides a possibility to test internal temperature or air pressure while vent hole with air blower can discharge the exhaust air.

5.Control system employs independent control cabinet & separated with the test chamber with a distance 1-2 meter, which can reduce the noise and improve safety.

Technical Parameters

Model:GBE-020/200

Pressure(KN) 20/200

Max. Displacement(mm) 200,300,500

Additional Function(Optional) Voltage, Temperature Sampling, Camera Monitoring system, Fire-extinguishing system, explosion-proof system, smoke evacuation system Crush Speed 0 ~ 40mm/min(Controllable )

Testing Space (mm) 200X200X200MM, 300X300X300MM or Customize

External Dimension W680 X D570 X H1740

Optional Function

Power 0—10V,0--100V

Temp. Sampling Range 0 ~ 1200℃

Power, Temperature Accuracy ±1%FS

Voltage Resolution 1mV

Temp. Resolution 0.1℃

Main Technical Parameters

Speed 0 ~ 40mm/min(Controllable )

Crush Range 0—300MM optional

Structure Vertical&horizontal (select according to actual size)

Testing Condition Applied force of 13KN, once the maximum pressure has been obtained it is to be released.

Crush Method Vertical, Horizontal

Crush Deformation No (Computerize can be customized)

Crush Remaining Time 0~99 hours 99 mins 99 seconds

Driven Method Hydraulic

Crush Accuracy ±1%

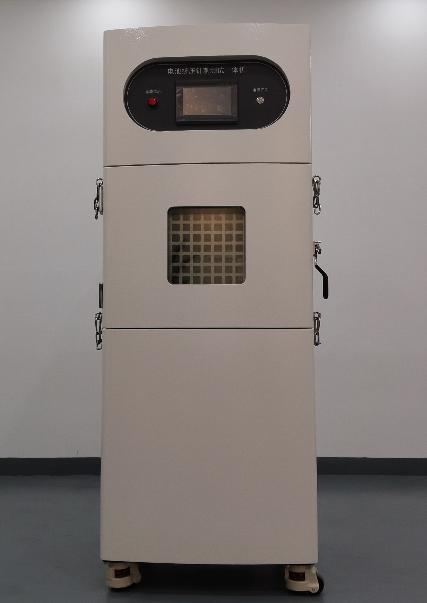

Structure

Cabinet Independent vertical & horizontal test machine and control system Communication No (Computerize can be customized)

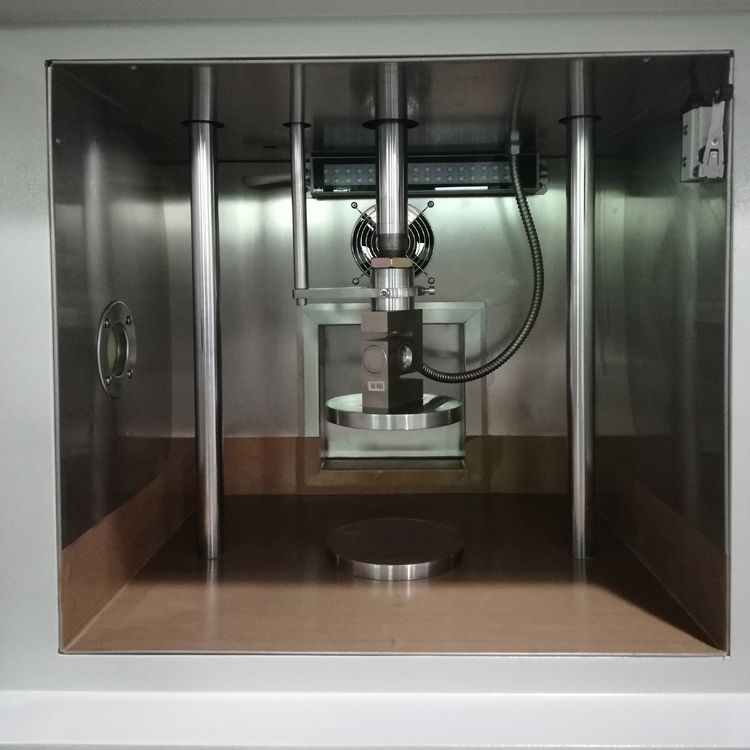

Crush Clamps Planer crush tray, fixtures in different size upon the different standard

Data Capture Module Independent remote sampling, multi voltage, temp.,current acquisition channels (optional );

Standard Channel Quantity 2-channel,4-channel,8-channel,various data acquisition system (optional )

Camera  Monitoring System Test zone installed with high definition camera monitoring system in remote control with explosion-proof (optional).

Standard Configuration  Crush machine 1 set, control cabinet 1 set, crush tray/1 pcs

Testing Clamp  Customize according to actual operating condition.

Power AC230V/380V 50HZ/60Hz 3 Phase 5 Wire

Working Condition 0℃~45℃
