Battery Burning Tester Battery Projectile Burning Test Chamber
GRANDE’s battery projectile / burning test chamber is suitable for testing the flame resistance and flammability of various consumer batteries, such as mobile phones and notebook computers.
Application
GRANDE battery projectile / burning test chamber is suitable for testing the flame resistance and flammability of various consumer batteries, such as mobile phones and notebook computers. Easy to operate, safe and reliable, it is an ideal battery burning test equipment.Related Standard Test Requirements.
1. UL1642
2. GB31241-2014
Technical Parameters
| Model | GBB-800 |
| Structure | All-in-one structure, the door uses explosion-proof lock and explosion-proof chain |

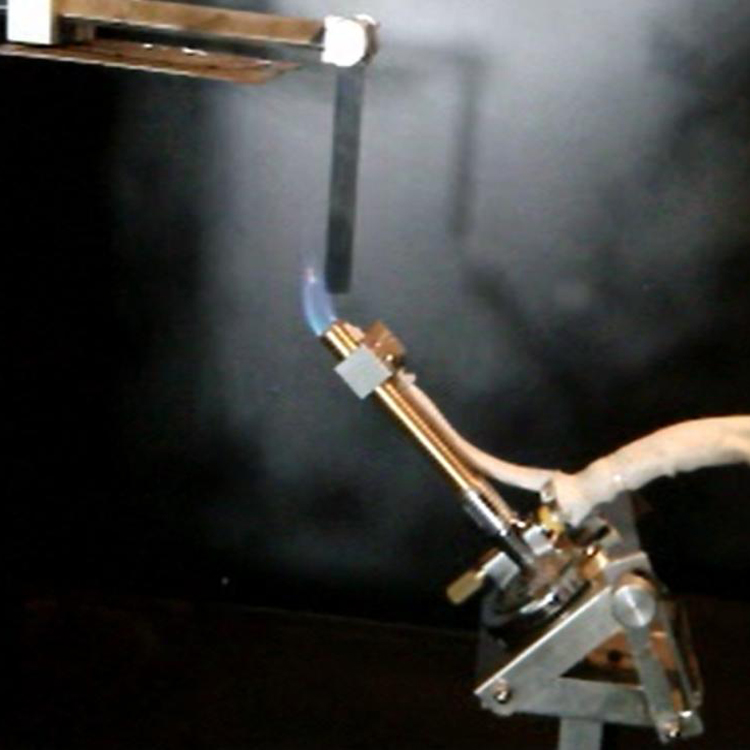

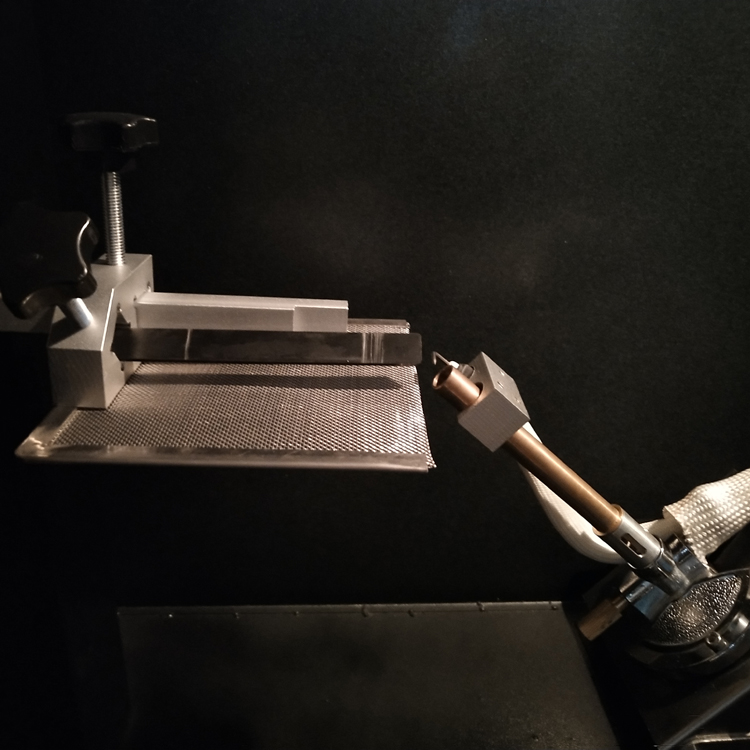

| Burner | Bunsen burner with inner diameter of 0.375 inch (9.5mm) and length approx. 100mm |
| Flame Application Time | 99H 59M 59S |
| Flame Height | *10～75±2mm（Adjustable） |
| *Mesh should be placed approx. 38mm above the flame (GB31241-2014) | |
| Test Rod Diameter | 1/4inch（6.35mm）× 14inch(355.6mm) |
| Octagon Shape Stainless Steel Mesh Enclosure | Distance between each parallel sides: 24 inches (610mm) |
| Height: 14 inches (305mm), | |
| Angle iron : spec. 12.7mmX12.7mm | |
| Mesh Top Cover | Square shape with length approx. 650mm |
| Test Aluminum Mesh Specification | 0.010inch (0.25mm) 16 grit x16 grit |
| Test Round Hole Surface Diameter | 102mm |
| Ignition Device | Automatic ignition |
| Display Mode | PLC touch + Remote control |
| Observation window | 390x360mm (20mm thick explosion-proof glass, install explosion-proof stainless steel mesh) |
| Control Method | Remote control, automatic control through the entire test. |
| Combustion Gas Requirements | High purity liquefied petroleum gas. (Prepared by user) |
| Data Output | Test data can be output by USB flash disk directly . |
| Safety Protection | Explosion-proof pressure relief device, smoke exhaust device, fire extinguishing system, electronic door lock system, safety stop switch |
| Options | Temperature acquisition system, voltage acquisition system, video monitoring system |
