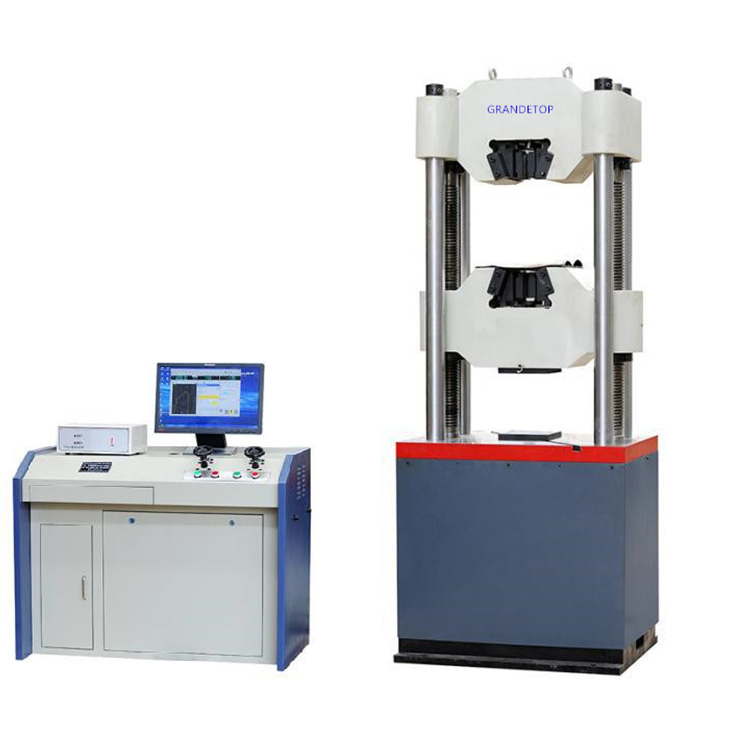

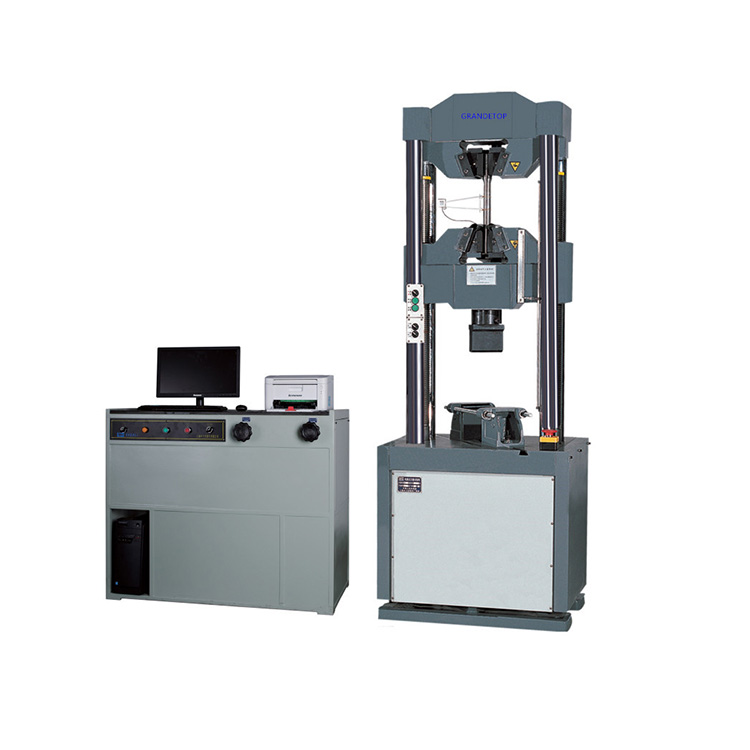

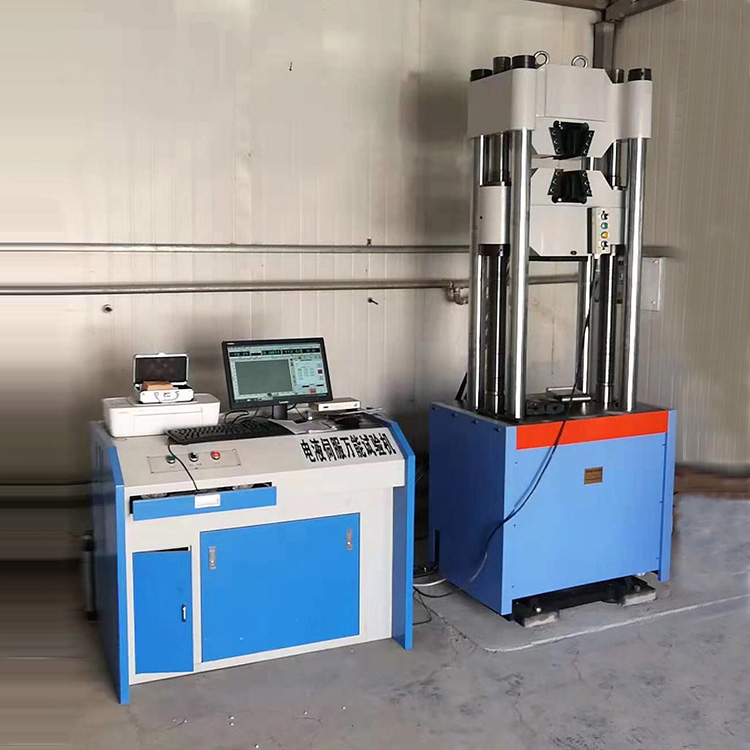

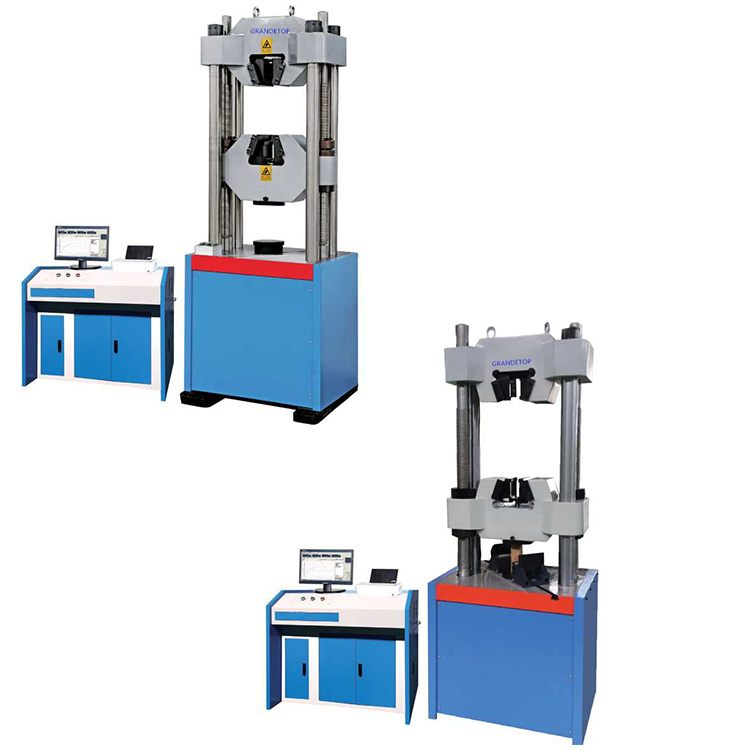

1.Application:
Servo Hydraulic Universal Tensile Tester is mainly used for metal and non metal materials tensile, the test of mechanical properties of compression,bending and shear,tension,
compression,bending,shearing,peeling,tearing and other tests by adding different test fixture for metal and non-metal materials. It is widely used in inspection department,
engineering area, laboratories, universities and institutes for material properties research and quality control.
2.Standards
ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards
3.Technical parameters:
| Model | GTT-100 | GTT-300 | GTT-600 | GTT-1000 | GTT-2000 |
| Max load (kN) | 100 | 300 | 600 | 1000 | 2000 |
| Structure | Six columns chain transmission oil cylinder underneath type | ||||
| Control way | computer control loading process | ||||
| Test class | 1 class ( 0.5 class optional) | ||||
| Test range(FS) | 2%-100% (0.4%-100% optional) | ||||
| Test value error(%) | ≤±1% ( ≤±0.5% optional) | ||||
| Force resolution | 0.01kN | ||||
| Deformation effective test range (FS) | 2%~100% | ||||
| Deformation value relative error(%) | ≤±0.5 | ||||
| Displacement resolution (mm) | 0.01 | ||||
| Displacement error(%) | ≤±0.5% | ||||
| Max piston stroke(mm) | 200 | 250 | |||
| Max piston moving speed (mm/min) | 0.5-50 Stepless speed adjusting | ||||
| Beam adjust speed(mm/min) | 270 | ||||
| Max tensile space (mm) | 650 (can customize) | 900 | |||
| Max compression space (mm) | 500 | 450 | 500 | 800 | |
| Effective space between columns (mm) | 420 | 470 | 520 | 760 | |
| Clamp way | Hydraulic clamp | ||||
| Round sample clamp diameter (mm) | Φ10-Φ32 | Φ13-Φ40 | Φ13-Φ50 | φ15-70 | |
| Flat sample clamp thickness(mm) | 0-15 | 0-15mm | 0-30mm | 0-60 | |
| Flat sample clamp width (mm) | 75 | 85 | |||
| Compression plate size (mm) | φ160 | Φ240 | |||
| Bending grip | Three points mode | ||||
| Bending roller distance (mm) | 450 | ||||
| Bending roller width (mm) | 120 | 160 | |||
| Bending roller upper and lower diameter(mm) | 3×Φ30 | 3×Φ50 | |||
| Compression grip (mm) | Φ160 spherical surface Automatic alignment mode compression grip | Φ240 | |||
| Power supply | 380V/50Hz/three phrase four wire system | ||||
4.Features:

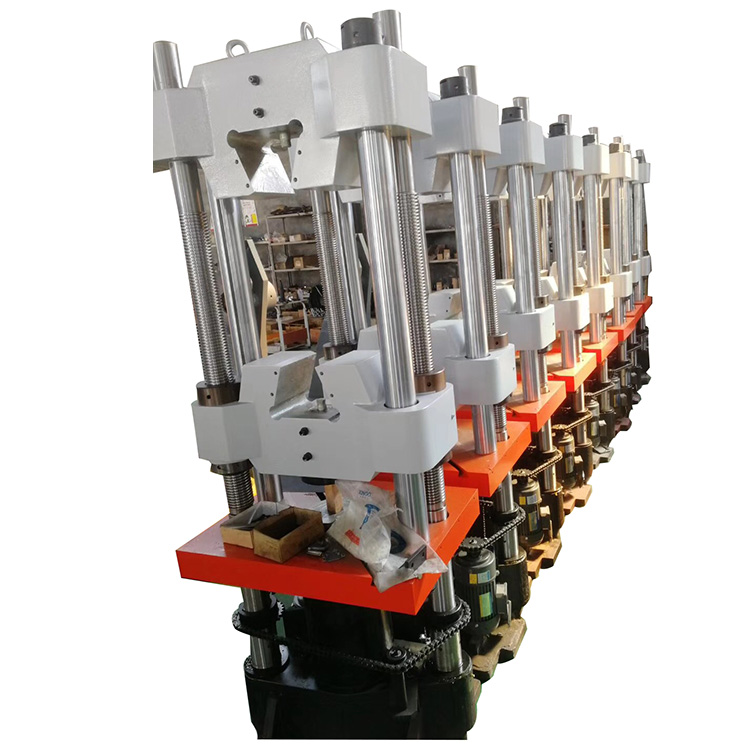

1. It has three parts: Host & oil source &measurement control system
2. Automatic rise, down, test and stop
3. Deepen jaw seat can prevent trumpet-shaped deformation as non-uniform stress in the test, can improve the soundness and life, make holding more firm and smooth
4. Between the jaw seat and jaw plate added wear-resisting backing board, protect the jaw seat and card plate, making the jaw seat more flexible
5. Between the host base and screw using the cone bearing which make screw rotation more stable and reliable, while solved the gap influence in the test progress
6. The middle cross bar adopt the adjustable gap nut mechanism, eliminated the gap and improve the measuring performance
7. All inclusive type host designed to ensure that its super stiffness to resist loads trace deformation
8.Dual control modes: PC control and manual control
9.Silent internal high pressure gear pump with noise below 65db under max. load. With pressure follow-up technology, the hydraulic system pressure follows the working pressure in oil cylinder for all the time to save energy
10.Dual test space design with oil cylinder at the bottom; Compact structure with four-column and two-ball screw
11.Hydraulic grips for easy gripping of specimens with no slippage and special grips can be ordered for shoulder s pecimen, threaded specimen or steel strand specimen
12.Chroming columns for long service life
13.Manual hand control box for convenient and flexible operation
14.High precision spoke type load cell to measure load with high anti-lateral and anti-impact ability
15.Silent internal high pressure gear pump with noise below 65db under max. load. With pressure follow-up technology, the hydraulic system pressure follows the working pressure in oil cylinder for all the time to save energy
16.Advanced and reliable PCI interface technology speeds up data acquisition, control signal response and raises control accuracy. The PC can automatically judge the specimen characteristic to finish a perfect test easily
