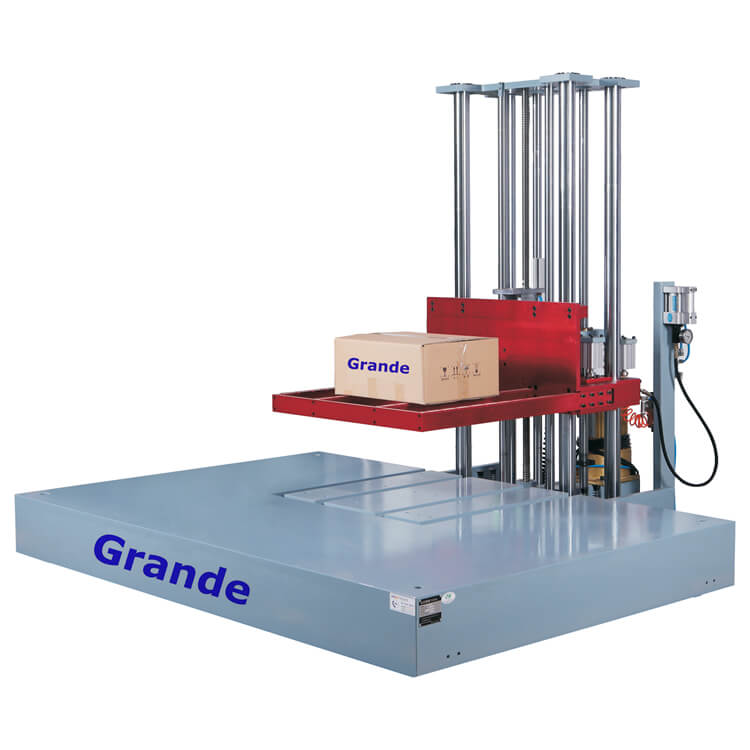

Drop Tester for Heavy Package
  • Drop Tester for Heavy Package
Drop Tester for Heavy Package

Drop Tester for Heavy Package

For large packaging with high mass. the vertical drop height during transport will be low and therefore they need drop test with relatively low drop height. Zero Height Drop Tester is mainly used for drop test of big package. It uses an E-shaped fork that can move downward quickly as a bracket and the specimen is placed in balance according to test requirement(surface, edge or corner drop test). During testing, the bracket moves downwards quickly ahead of specimen with acceleration greater than 3G to ensure the separation of bracket and specimen and achieve free fall. The standard fall distance is ranged between 2.54cm-120cm.


Product Details

Technical Parameters:

ModelDT020DT030DT050
Drop Height(mm)0~12000~12000~1200
Payload Capacity(kg)200300500
Package Size(mm)1200×1200×12001200×1200×12001200×1200×1200
Drop ModeFree Fall Drop
Machine Size(mm)2100×1700×28002100×1700×28002100×1700×2800
Machine Weight(kg)210023002300
Power/Air Supply3Ф AC380V, 50Hz(compressed Air)0.5~0.7Mpa
Applicable StandardsISO2248-72(E)GB/T4857.5 JISZ0202-87 IEC68-2-27
