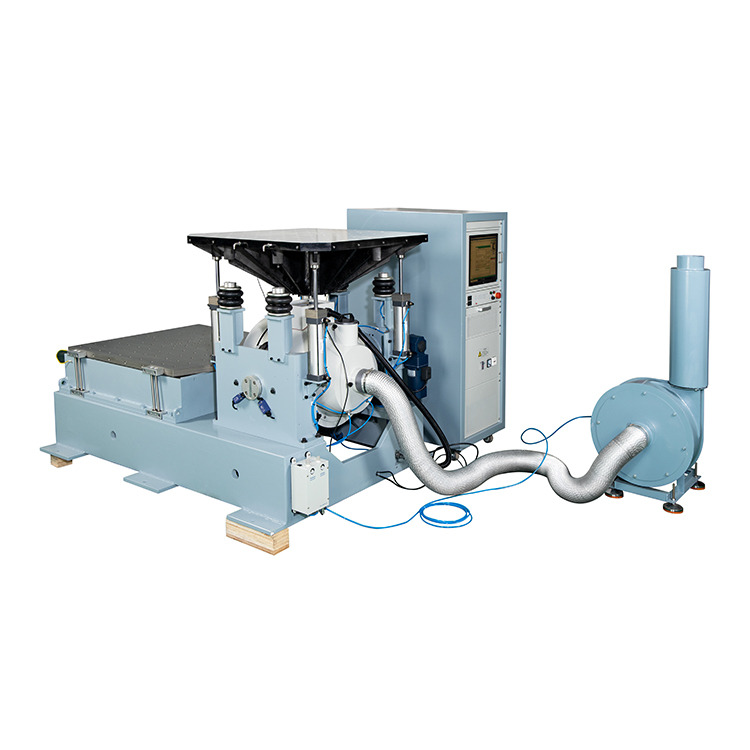

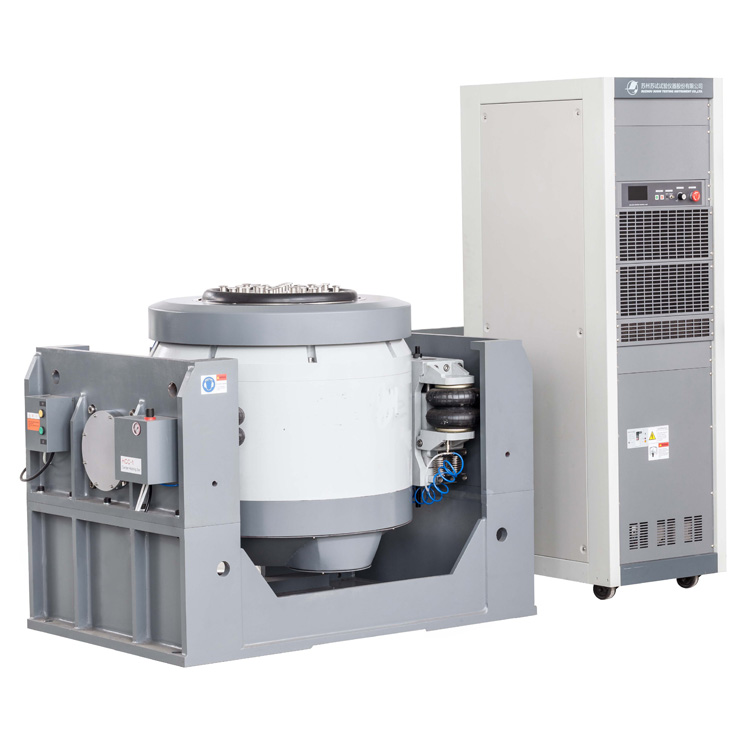

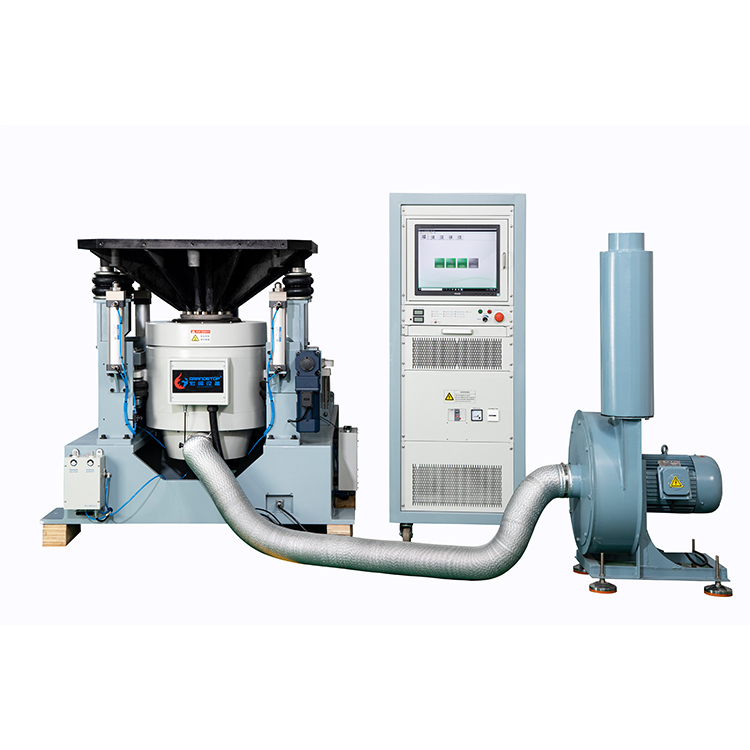

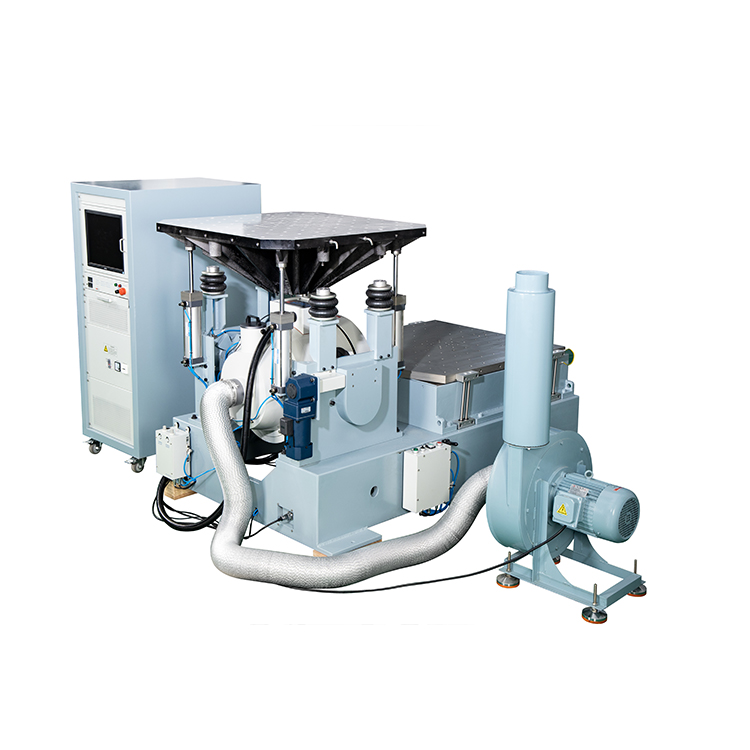

Air Cooling Vibration Test Systems

Air Cooling Electromagnetic Test System takes the advantages of wide frequency range,reliability,small in size,easy to move,easy operation.,etc.We are providing a lots of models for your options.Sine force range is from 1KN to 70KN,the loading capacity is from 70KGs to 1000KGs.We are also providing the integrated climatic simulations and mechanical test equipment.

Inquire Now Next Product

Product Details

Features

1,Sine force range：1kN~70kN

2,High quality Spring,Excellent performance for Low Frequency.

3,Ratio of Random and Since force:1：1

4,Excellent Magnetic Uniformity.

5,Expand 2 times Sinusoidal Excitation Force.(Option 3 Times）

6,Sine,Random,Shock.,etc test.

7,Max Displacement(P~P（mm）):25mm,40mm,51mm,76mm or 100mm

8,Excellent performance of Blower,low noise and long life.

9,Optimization design of Armature：Light，Excellent Resistance Vibration

Technical parameters:

Model	ES-1-150	ES-1S-150	ES-2-150	ES-2-230	ES-3-150	ES-3-230	ES-6-230	ES-10-240	ES-10d-240
	Φ60Φ120Φ15013×MB				Φ100Φ200Φ23017×MB	Φ60Φ120Φ15013×MB	Φ100Φ200Φ23017×MB	Φ100Φ200Φ23017×MB	Φ100Φ200Φ24017×MB10
Rated random excitation force/Sinusoidal excitation force(KN)	1	1.5	2	2	3	3	6	10	10
Shock Force（KN）	2	3	4	4	6	6	12	20	20
Frequency Range（Nz）	5-4500	5-4500	5-4500	5-2500	5-4000	5-2500	5-3500	5-3000	5-5000
Max Acceleration（m/s²）	500	750	1000	250	1000	350	1000	1000	1000
Max Speed（m/s）	2	2	2	1.5	2	1.5	1.8	1.8	1.8
Max Displacement P~P（mm）	25	25	25	40	25	40	51	51	51
Max Loading（kg）	70	70	70	140	120	140	300	300	300
Shaker Model	ET-1	ET-1.5	ET-2	ET-2	ET-3	ET-3	ET-6	ET-10	ET-10d
Equivalent Mass of Moving parts(kg)	2	2	2	8	3	8.5	6	10	10
Size of head expander(Working table)（mm)	150	150	150	230	150	230	230	240	240
Weight（kg）	395	395	395	430	480	430	590	900	900
Size L×W×H（mm）	3	3	3	3	3	3	3	2.5	2.5

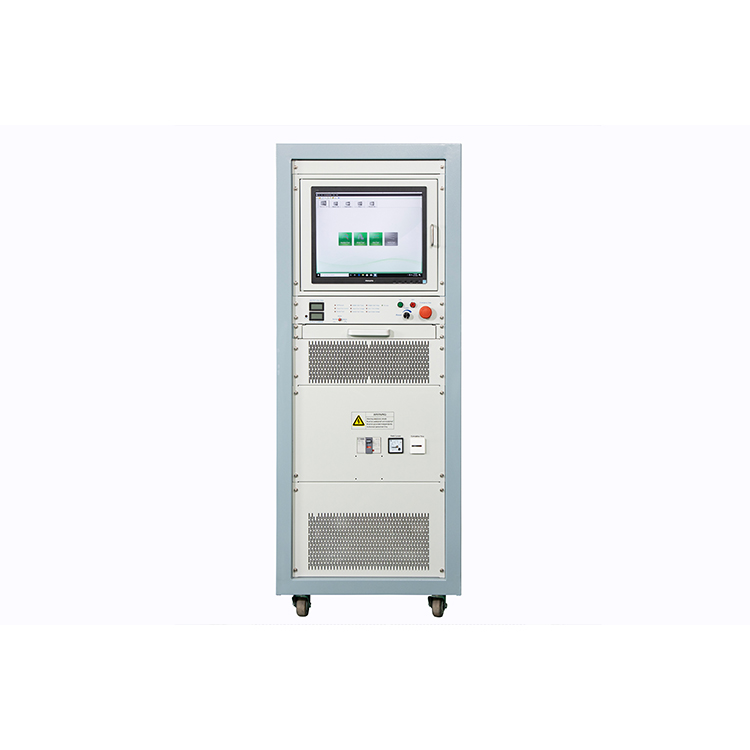

Power Amplifier Model	SDA-1	SDA-1S	SDA-2	SDA-2	SDA-3	SDA-3	SDA-6	SDA-10	SDA-10
Power Amplifier（KVA）	1	1.5	2	2	3	3	6	10	10
Power Supply（KVA）	4	4.5	5.5	5.5	6.5	6.5	16	21	21
Weight（kg）	160	160	200	200	200	200	240	400	400
Size L×W×H（mm）	607×820×1593
Cooling Method	Forced air cooling
Blower Model	B-200	B-200	B-200	B-200	B-200	B-200	B-1000	B-1000	B-1000
Power（KW）	0.75	0.75	0.75	0.75	0.75	0.75	4	4	4
Rate of flow（m³/s）	0.1	0.1	0.1	0.1	0.1	0.1	0.33	0.33	0.33
Pressure（kpa）	1	1	1	1	1	1	3.5	3.5	3.5
Weight（kg）	30	30	30	30	30	30	115	115	115

Model	ES-20-320	ES-20-445	ES-30-370	ES-30-550	ES-40-370	ES-40-445	ES-50-445	ES-60-445	ES-20LS3-3
	Φ120Φ250Φ32017×M10	Φ200Φ400Φ44517×M10	Φ150Φ300Φ37017×M10	Φ200Φ300Φ400Φ500Φ55033×M10	Φ150Φ300Φ37017×M10	Φ200Φ250Φ32017×M10			Φ100Φ200Φ300Φ34021×M10
Rated random excitation force/Sinusoidal excitation force(KN)	20	20	30	30	40	40	50	60	60
Shock Force（KN）	40/60*	40/60*	60/90*	60/90*	80/120*	80/120*	100/150*	120/180*	40/60*
Frequency Range（Nz）	5-3000	5-2800	5-2800	5-2000	5-2800	5-2700	5-2700	5-27700	5-3000
Max Acceleration（m/s²）	1000	700	1000	500	1300	800	1000	1000	800
Max Speed（m/s）	2	2	2	2	2	2	2	2	2
Max Displacement P~P（mm）	51	51	51	51	51	51	51	51	76
Max Loading（kg）	300	300	500	500	500	800	800	800	800
Shaker Model	ET-20	ET-20	ET-30	ET-30	ET-40	ET-40	ET-50	ET-60	ET-20LS3
Equivalent Mass of Moving parts(kg)	20	28	30	55	35	50	50	60	25
Size of head expander(Working table)（mm)	320	445	370	445	445	445	445	445	340
Weight（kg）	1695	1700	2490	2540	2490	4500	4500	4500	1695
Size L×W×H（mm）	1222×760×1052		1328×854×1140	1328×854×1158	1328×854×1140	1730×1139×1272			1222×760×1067
Power Amplifier Model	SDA-20	SDA-20	SDA-30	SDA-30	SDA-40	SDA-40	SDA-50	SDA-60	SDA-20
Power Amplifier（KVA）	20	20	30	30	40	40	50	60	25
Power Supply（KVA）	44	44	54	54	73	73	82	95	44
Weight（kg）	450	450	500	500	500	550	550	700	450
Size L×W×H（mm）	620×1010×2106								607×820×1593
Cooling Method	Forced air cooling
Blower Model	B-2000LN	B-2000LN	B-3000	B-3000	B-5000	B-5000	B-5000	B-7000	B-2000LN
Power（KW）	7.5	7.5	7.5	7.5	1.5	1.5	1.5	22	7.5
Rate of flow（m³/s）	0.46	0.46	0.46	0.46	11	11	11	1.6	0.46
Pressure（kpa）	3.5	3.5	8.8	8.8	7.7	7.7	7.7	8	3.5
Weight（kg）	140	140	180	180	255	255	255	340	140

Model	ES-30LS4-445	ES-40LS4-445	ES-50LS3-445	ES-60LS3-445	ES-50LS4-445	ES-60LS3-445	ES-50LS4-445
	Φ200Φ400Φ44517×M10		Φ200Φ400Φ44517×M12			Φ200Φ300Φ400Φ500Φ55033×M12
Rated random excitation force/Sinusoidal excitation force(KN)	30	40	50	60	50	60	70
Shock Force（KN）	60/90*	80/120*	100/150*	120/180*	100/150*	120/180*	140/210*
Frequency Range（Nz）	5-2600	5-2600	5-2600	5-2600	5-2600	5-2500	5-2500
Max Acceleration（m/s²）	750	900	900	1000	900	730	850
Max Speed（m/s）	1.8	1.8	2	2	2	1.8	1.8
Max Displacement P~P（mm）	100	100	76	76	100	76	76
Max Loading（kg）	500	500	800	800	800	1000	1000
Shaker Model	ET-30LS4	ET-40LS4	ET-50LS3	ET-60LS3	ET-5OLS4	ET-60LS3	ET-70LS3
Equivalent Mass of Moving parts(kg)	40	45	55	55	56	82	82
Size of head expander(Working table)（mm)	445	445	445	445	445	550	550
Weight（kg）	2540	2540	4500	4500	4500	7300	7300
Isolation Frequency（Hz）	2.5	2.5	2.5	2.5	2.5	2.5	2.5
Size L×W×H（mm）	1328×854×1213		1730×1139×1293		1730×1139×1348	1820×1297×1373
Power Amplifier Model	SDA-30	SDA-40	SDA-50	SDA-60	SDA-50	SDA-60	SDA-70
Power Amplifier（KVA）	30	40	50	60	50	70	70
Power Supply（KVA）	54	73	82	95	82	95	108
Weight（kg）	500	550	550	700	550	550	700
Size L×W×H（mm）	620×1010×2106
Cooling Method	Forced air cooling
Blower Model	B-3000	B-5000	B-5000	B-7000	B-5000	B-7000	B-7000
Power（KW）	7.5	15	15	22	15	22	22
Rate of flow（m³/s）	0.46	11	11	1.6	11	1.6	1.6
Pressure（kpa）		7.7	7.7	7.5	7.7	7.5	7.5
Weight（kg）	180	180	255	340	255	340	340
