We are always focused on the latest development of reliable testing technologies, and also value the importance of upgrading the technologies of the equipment. Requirement for“Environment Simulation” also helps the clients to realize the importance of vibration platform and test chambers provided by supplier. We can provide broad range of combined environment testing system according to the clients’ requirements. For example:3 to 4 integrated testing setup shock(air-cooled vibration test system complimented by low pressure test chamber), multi-axis vibration test and latest testing technologies.
| Main environment | Temperature, Humidity & Vibration |
| Vibration exciting force | 300kg.f~5000kg.f |
| Chamber Size | 500×750×600 1000×1000×800 1000×1000×1000 |
| Temperature range | -160℃,-150℃,-120℃,-100℃,-80℃,-70℃,-60℃,-40℃，-20℃,0℃~+150℃,200℃,250℃ |
| Humidity range | 20~98%R.H (10%RH ～98%RH or 5%RH ～98%RH) |
| Type of vibration test | Sine vibration, random vibration, classical shock, resonant and dell, sine plus random, random and random, etc. |
■Features
The Integrated Environmental Test System is a combination of test chamber and vibration test system, whereby different temperature(high/low temperature), humidity, vibration(sinusoidal/random) and electrical stress is applied on the specimen according to the preset period to perform“Environment Simulation” of temperature, humidity and vibration. As compared to single element test, this test can simulate the transport and use environment of the products more realistically. It is an important methodology to assess and evaluate the adaptation of product towards environmental changes, to expose the flaw in the products and also to assist in development of new product, appraisal and mass production.
●Independent control system: can complete high temperature, low temperature, constant temperature, constant humidity, vibration test and integrated test.
●Adopts portable track design to perform integrated or single element test easily
●Our vibration test system are compatible with international test chambers of different brands. Labtone is in charge of assembly and provide the clients with integrated environment test system of different specifications and performance.
■Shaker and The Environmental Chamber Connection

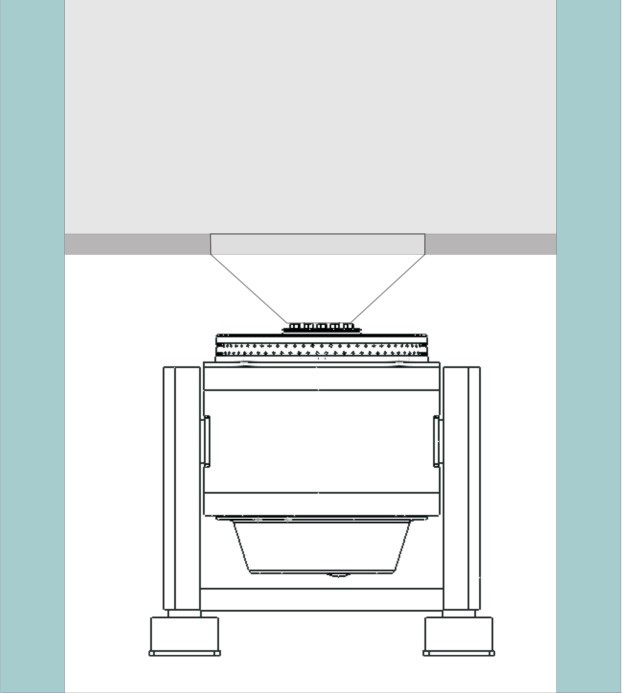

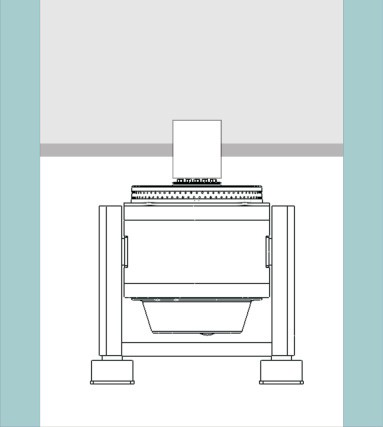

Shaker connected with chamber directly Shaker connected with chamber by a transition connector

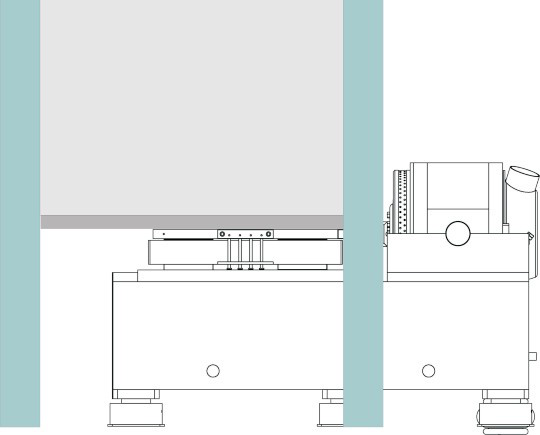

Shaker connected with chamber by a table Vibration horizontal direction connected with chamber
| Main environment | Temperature, humidity vibration |
| Vibration exciting force | 300kg.f~5000kg.f |
| Ambient box size | 500×750×600 1000×1000×800 1000×1000×1000 |
| Temperature range | -70~150C(max) |
| Humidity range | 20~98%R.H(max) |
| Type of vibration test | Sine vibration, random vibration, classical shock, resonant and dell, sine plus random, random and random, etc. |
Remarks: the above are standard specifications, please consult with us if you have special request.
