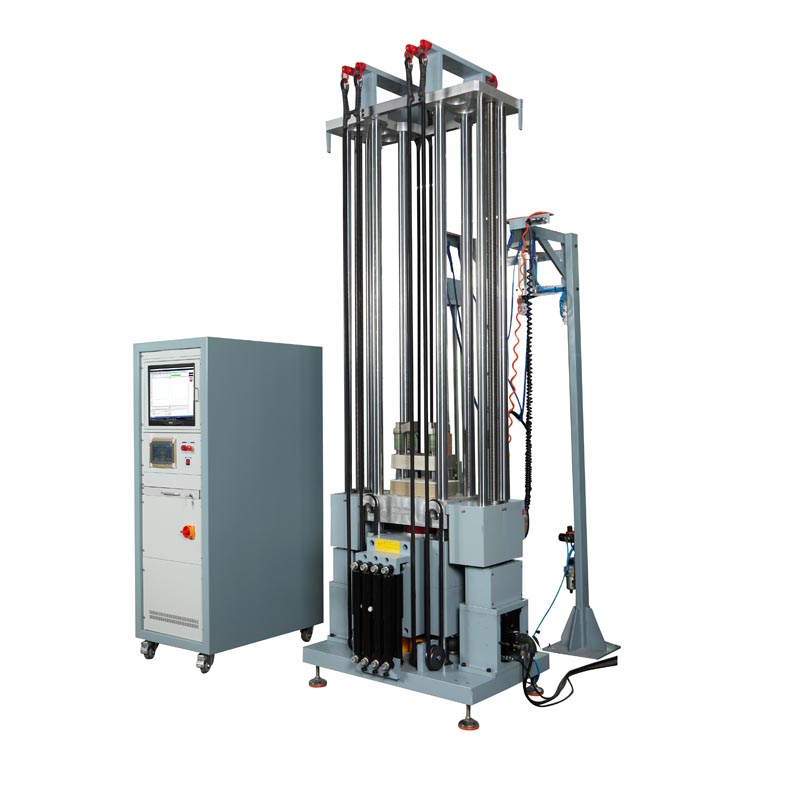

High Speed Shock Test Systems
Main applications: mobile phones, computer components, optical components, connectors, etc, also to test the shock absorbance ability of materials.
Model | HSKT10 | HSKT30 | HSKT30A |
| Table Size(mm) | 200×250 | 400×400 | 300×300 |
| Max. Payload(kg) | 10 | 30 | 30 |
| Shock Pulse | Half Sine Wave | Half Sine Wave | Half Sine Wave |
| Acceleration Range(G) | 20~1500（bare table） | 20~1500（bare table） | 20~10000（bare table） |
| Pulse Duration(ms) | 0.2~18 | 0.2~18 | 0.2~18 |
| Max.Drop Height(mm) | 1500 | 1200 | 1200 |
| (W*D*H)MachineDimension(mm) | 660×700×2380 | 1350×1250×3300 | 1350×1250×3300 |
| Power Supply | AC220V 50Hz, Compressed Air: more than 0.5Mpa | ||
| Machine Weight(kg) | 820 | 650 | 1850 |
| Standards | GB/T2423-2008GJB1217GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA ULMIL-STD-810GMIL-STD 883, Method 2002MIL--STD-202, Method 214 | ||
Dual Mass Shock Amplifier(DMSA)
| Shock Pulse | Half Sine Wave | |
| Table Size(mm) | 150×150 | 180×180 |
| Max. weight of specimen(kg) | 3 | 5 |
| Acceleration Range（G） | 300~50000 | 300~50000 |
| Pulse Duration(ms) | 0.1~0.5 | 0.1~0.5 |
