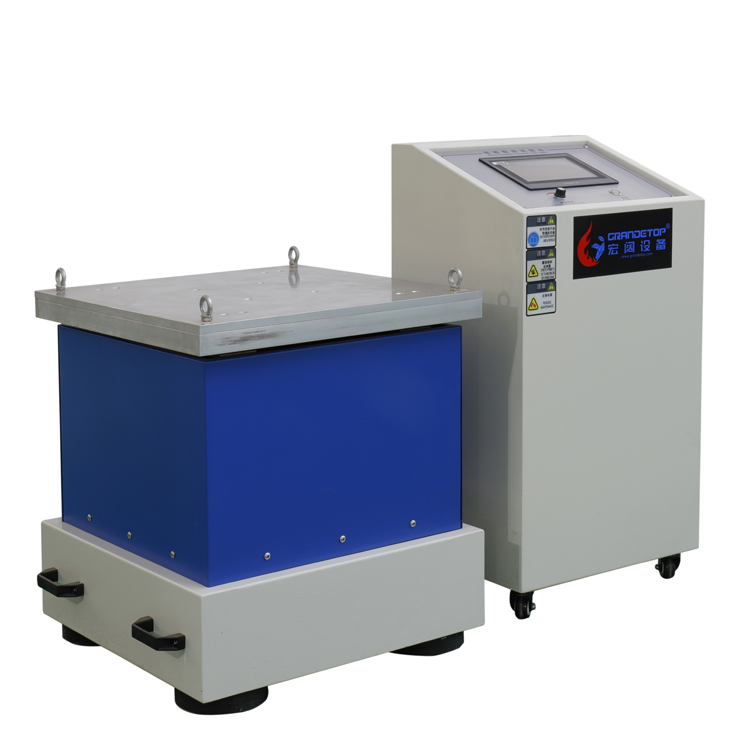

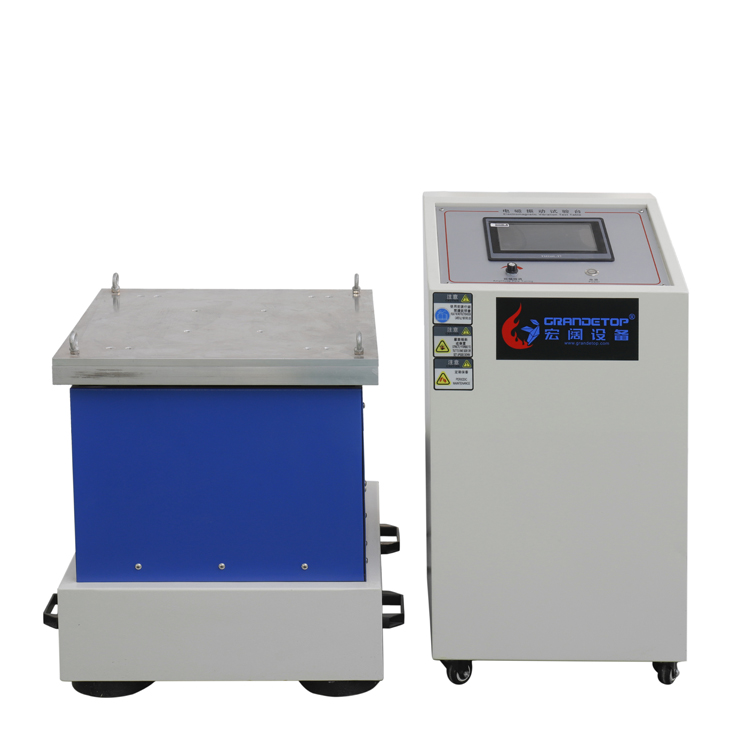

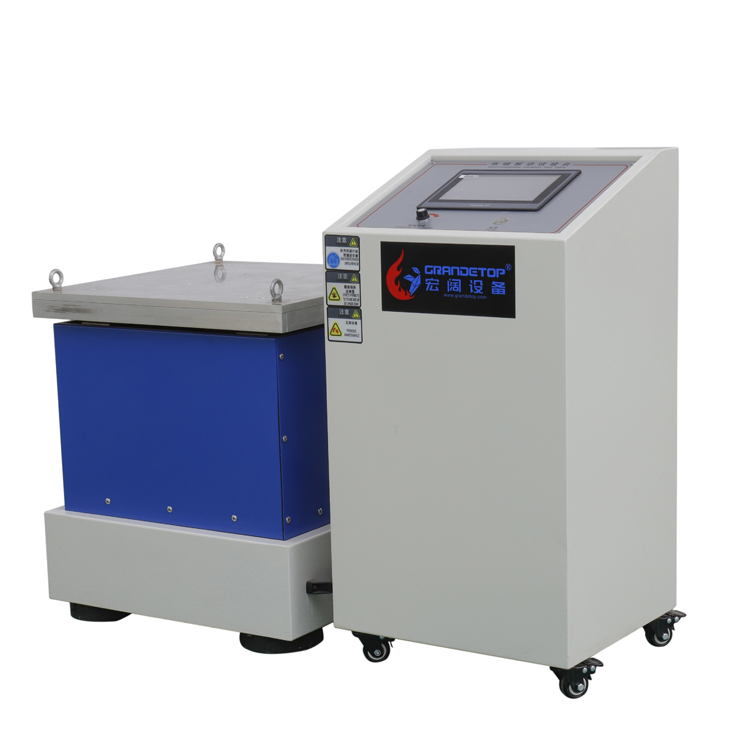

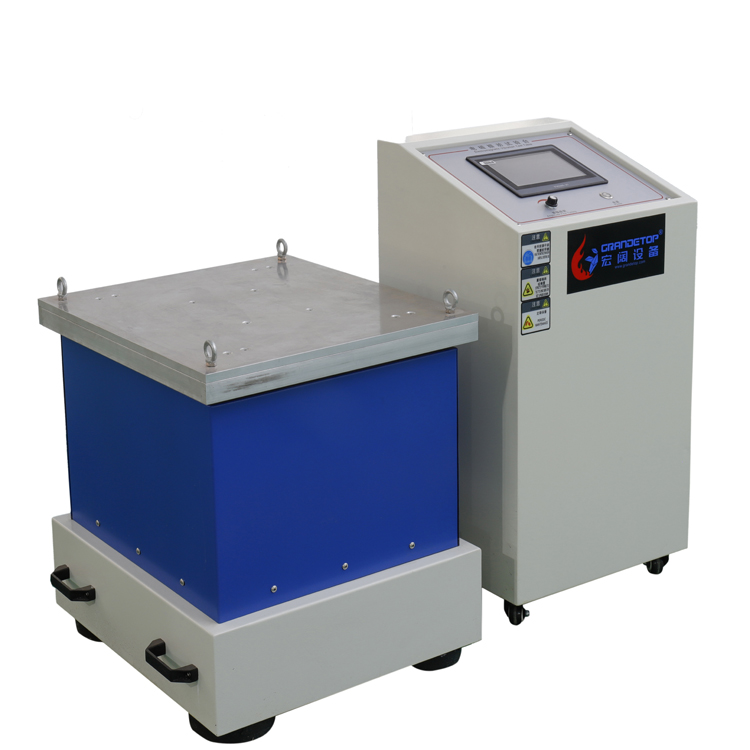

Mechanical vibration tester simulates vibration during transport for electronic products, components and spare pats, mechanical and electrical products, instrumentation, etc. Its vibration tests comply to the GB、UL，IEC and other standards.
Features
Apply centrifugal excitation, low mechanical noise;
Adopts synchronous reverse movement, even platform;
Stepless amplitude adjustment, satisfies test requirements of different products;

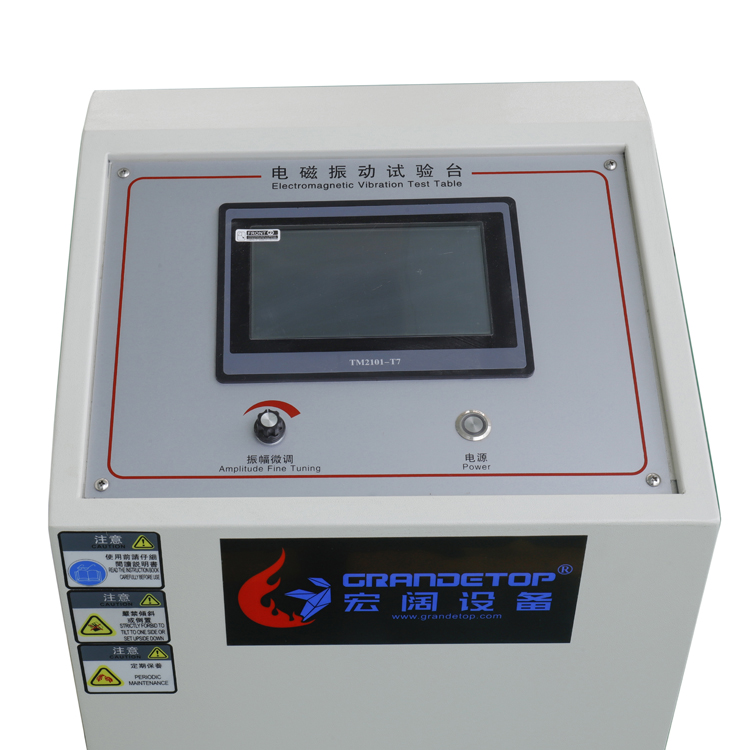

Windows standard control interface in Chinese and English, printable reports, simple operation ;
Comes with damping airbag(caster), on need of special foundation.
Technical Parameters:
| Model | VB60 | VB60 |
| Table Size L x W | 600×500mm | 1000×800mm |
| Frequency Range | 5~100Hz | 10~60Hz |
| Amplitude Range (mmp-p) | 0~3mmp-p | 0~2.6mmp-p |
| Acceleration Range | 0~11G | 0~11G |
| Max. Payload(kg) | 130 | 300 |
| Control Interface | （compatible interface）IBM PC Serial port Rs232 9P/USB port | |
| Test Method | Fixed frequency, sweep frequency(linear/logarithm), multi-stage random | |
| Waveform | Sine Wave | |
| Vibration Direction | Vertical | |
| Power Supply | AC 1Ψ 110V;AC 1Ψ 220V;3Ψ380V 60/50Hz | |
| Size(mm) | 750×550×690 | 1000×800×655 |
| Weight(kg) | 250 | 500 |
