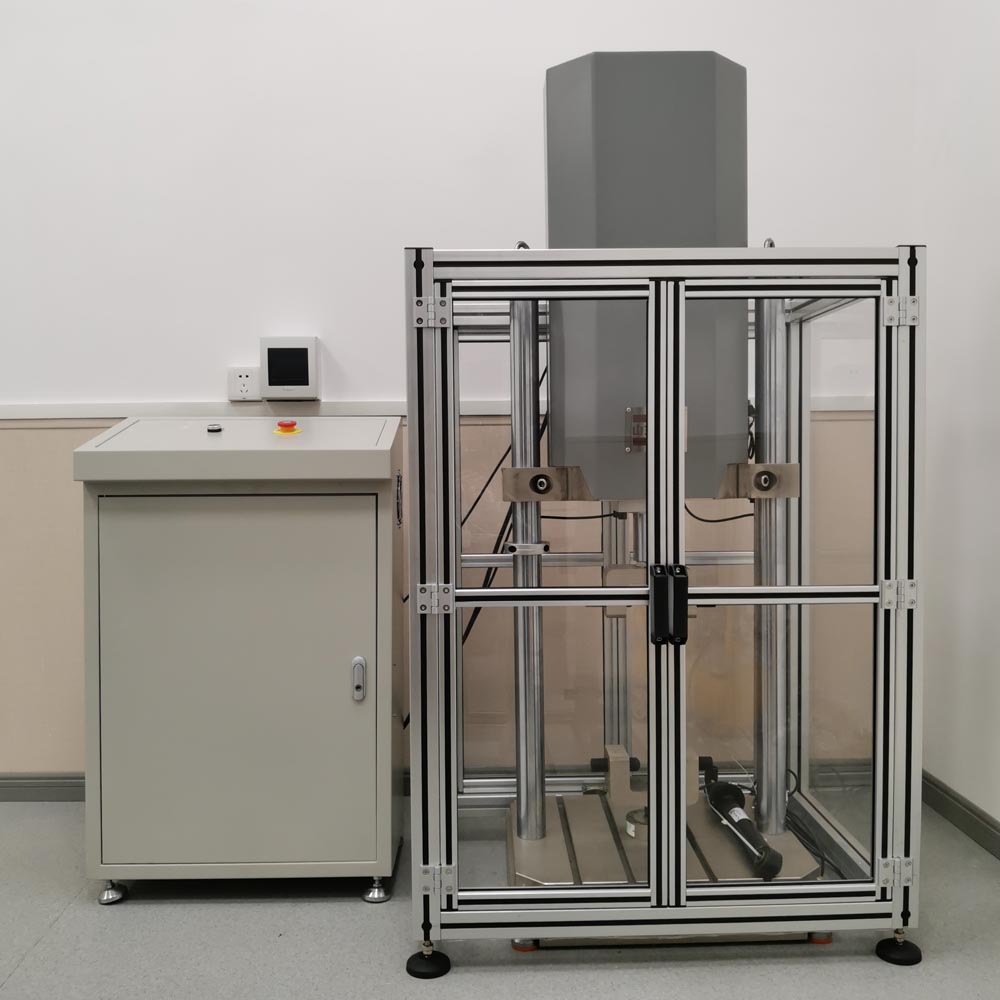

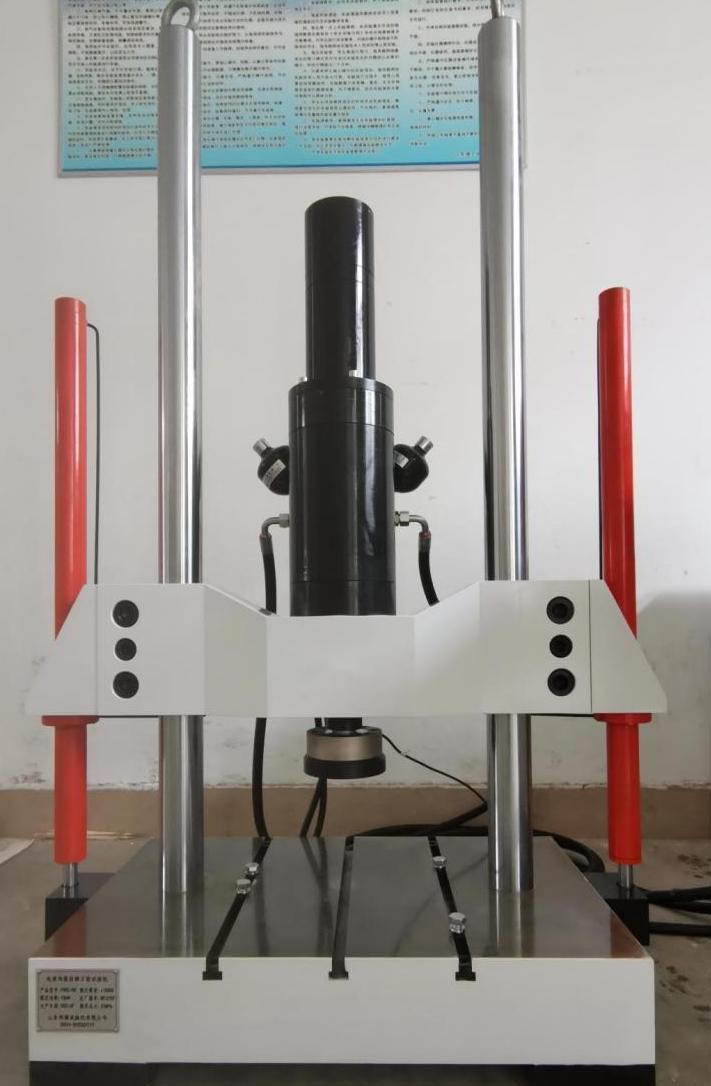

General Purpose Hydraulic Fatigue
Servohydraulic Dynamic and Fatigue Test Systems are the workhorse of any laboratory. They can perform a wide variety of low and high cycle fatigue, crack propagation, fracture toughness and other dynamic tests. Each system can be readily configured with appropriate sized servo valve, manifold and hydraulic power unit to suit the particular application.
All systems are equipped with the advanced features of the Controller, Console Software and Grande’s unique fatigue-rated load cells. 2 Dynamic Testing Software provides the backbone for running many dynamic tests. Other application specific software modules, such as Grande’s Fracture Mechanics Suite, allows other standardized tests to be run.These dynamic systems, when combined with GRANDE Software and appropriate accessories, are ideal for running a variety of static tensile, compression, flexure, peel, tear and friction tests.
Technical Parameters:
| Model | G800 | G801 | G802 | G803 | G804 | G805 | G806 | G806+ | G807 | G808 | G808+ |
| Maximum static test force (kN) | ±5 | ±15 | ±30 | ±50 | ±100 | ±300 | ±500 | ±750 | ±1000 | ±3000 | ±5000 |
| Maximum dynamic test force(kN) | ±5 | ±10 | ±20 | ±35 | ±70 | ±200 | ±350 | ±500 | ±700 | ±2000 | ±3500 |
| Test force Accuracy | ±0.5% or ±1.0%（Measuring range：±2%-100%FS） | ||||||||||
| Amplitude(mm) | ±50 or ±75, can be customized | ||||||||||
| Displacement accuracy | ±0.5%FS | ||||||||||
| Optional test accessories | Standard optional configuration: hydraulic forced clamping chuck; All kinds of accessories can be customized. | ||||||||||
| Frequency range(Hz) | 0.01-5 or 0.01-100 | ||||||||||
| Test waveform | Sine wave, triangular wave, square wave, oblique wave and so on. Optional: file wave, random wave, PDS power spectral density wave, road spectrum, etc | ||||||||||
| Column spacing (mm) | 500 | 500 | 500 | 600 | 600 | 750 | 760×580 | 760×580 | 960×6200 | 定制 | 定制 |
| Test space (mm) | 550 | 700 | 700 | 750 | 750 | 900 | 1050 | 1050 | 1050 | 定制 | 定制 |
| Main engine dimensions (mm) | 620×450×1550 | 670×620×2200 | 670×620×2200 | 970×620×2700 | 970×620×2700 | 1050×750×3050 | 1100×1050×3400 | 1100×1050×3400 | 1400×1100×3150 | 定制 | 定制 |
| Optional range of pumping stations | 10L/min, 30L/min, 50L/min, 70L/min, 90L/min/110L/min, 220L/min, 280L/min etc. Can be customized. | ||||||||||
| Reference stiffness of main engine（N/m） | 3.0×10 | ||||||||||
| Main engine weight (About) (kg) | 400 | 500 | 550 | 900 | 950 | 2000 | 5000 | 7500 | 10000 | ||
