Mainly used in repeating impact, unloading or jump test that comply to ISTA, ASTM, TAPPI, ISO MIL-STD, FED-STD, UN, DOT and other industrial and government standards. Frequency range is 2~5Hz with fixed displacement of 1 inch(25.4mm)and maximum acceleration of 1.25G;

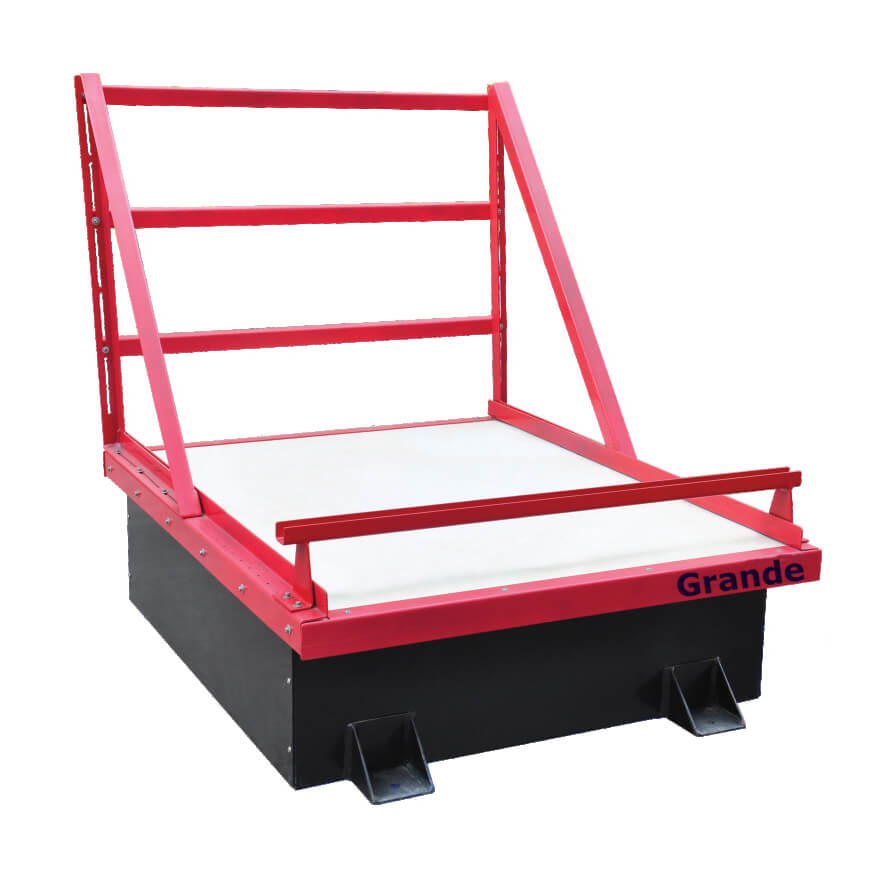

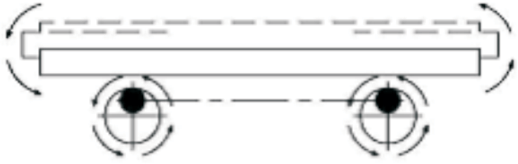

GYST series vibration platforms apply eccentric cam principle to achieve rotation (marquee), vertical and non-synchronized(30°unbalance vibration) vibration modes.
■Features

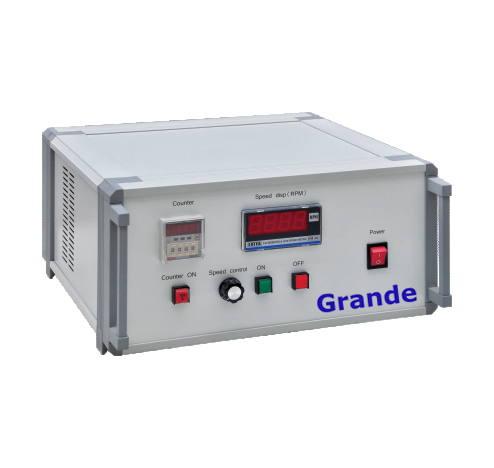

●Adjustable frequency;
●Fixed amplitude;
●Convenient installation, operation and maintenance;
●High fence for the back side.
■Technical parameters:
| Model | GYST100 | GYST200 | GYST500 | GYST1000 | GYST2000 | |
| Max. Payload(kg) | 100 | 200 | 500 | 1000 | 2000 | |
| Table Size（mm） | 1000×1200 | 1200×1200 | 1200×1500 | 1500×1500 | 1500×1500 | |
| Frequency Range | 2~5Hz(120~300)RPM | |||||
| Displacement | 1 Inch Fixed | |||||
| Test Motions | ）Rotary(Synchronous) | |||||
| Power Supply | AC110/220V±10% 50/60Hz | 3Ф220V/380V±10% 50/60Hz | ||||
