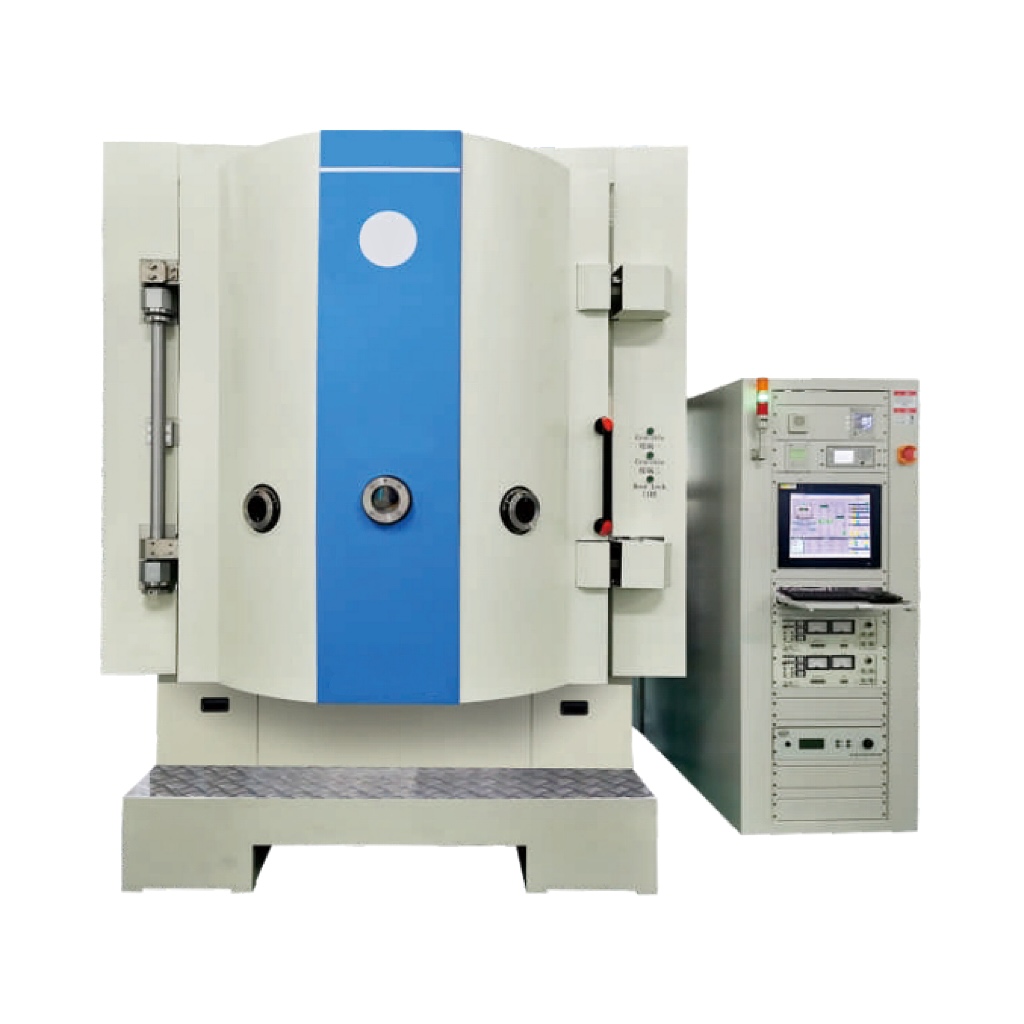

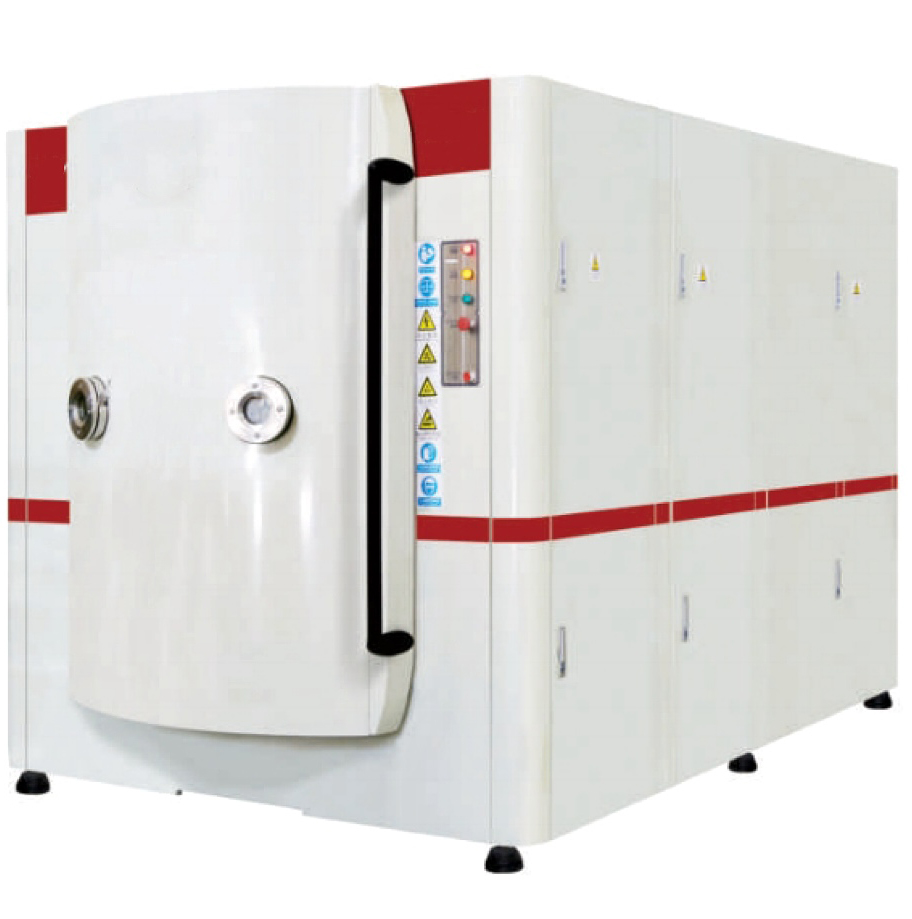

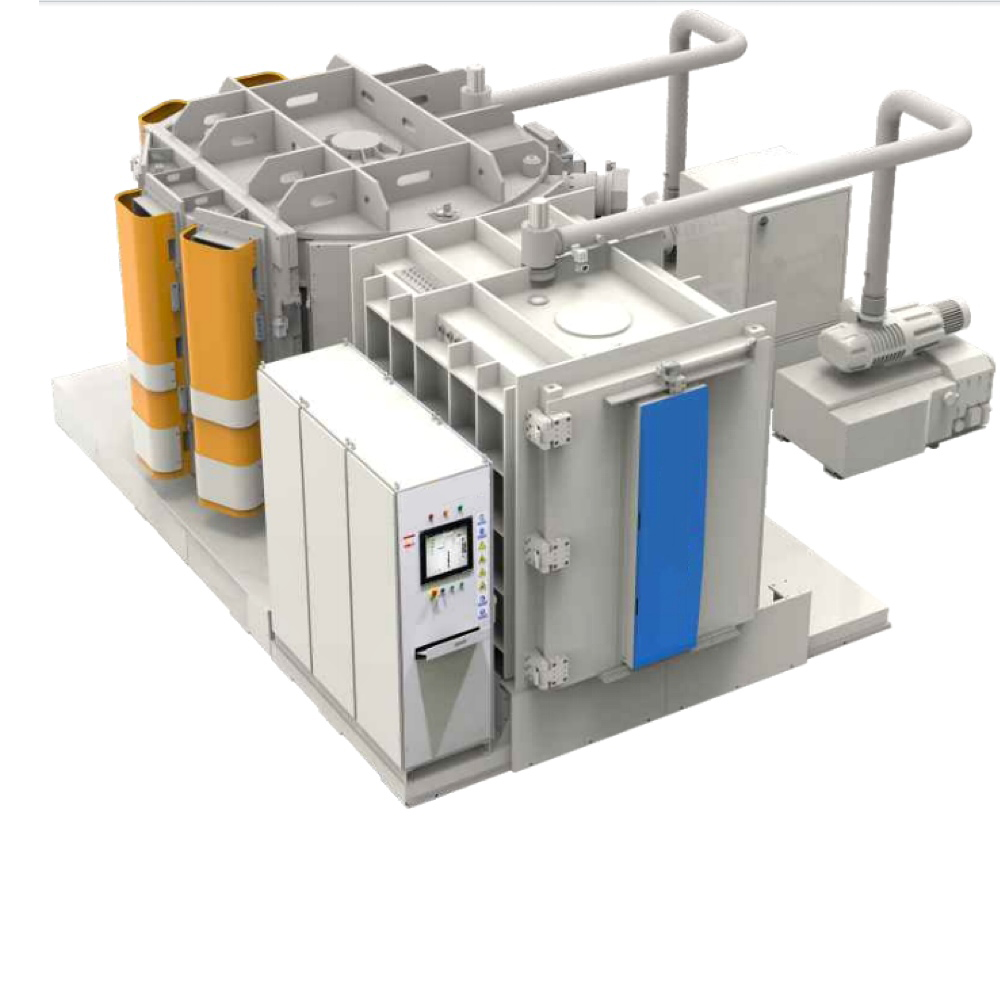

Cathode Arc Ion Vacuum Coating Equipment is a high efficiency, harmless and pollution-free machine. It has features of fast deposition rate, great ionization rate, large ion energy, easy operation, low cost and large productive capacity etc.
The principle of vacuum electric arc ion coating is based on cold cathode, self-sustained arc discharge plasma evaporation, ionization material, combine pulsed bias technical to improve the energy and activity of deposited particles, and enhance the properties of coating. It can deposit coatings on the surface of metal as well as non-metal.
It can be used for metal film, TiN, TiC, ZrN, CrN,Nickle,Cr and Cu ect. Other compounds film, multi-layer super-hard film, multi-compounds film and titanium nitride with gold film as well. This machine is extensively used for super-hard coating on tools and mould, decorative coatings on car wheel, golf, watches, hard wares, lamp, glasses frame, ceramic and glass.
PRODUCT ADVANTAGE.
Cathode Arc Ion Vacuum Coating Equipment includes the following key capabilities:
1, Uniformity: Uniform deposition rate in the whole chamber
2, Effective: High deposition rate, high ionization rate and high yield
3, Simple: Easy to operate and maintain
4, Simple: Easy to operate and maintain
5, Remote access: Provide factory remote diagnostics
6, Environment: Green production, no pollution
Technical Parameters:
| Model | GCAI-1200 | GCAI-1600 | GCAI-1600 | GCAI-1800 |
| Size | Ф1200×H1500mm | Ф1600×H1800mm | Ф1600×H1900mm | Ф1800×H2000mm |
| Coating | Gold Titanium Nitride, black titanium carbide, rainbow titanium oxide, wear-resisting coating, super-hard coating, diamond coating, metal decorative coating and so on. | |||
| Power supply | DC power supply, MF power supply, electrical arc power supply, filament (power) supply, active power supply, plused bias power supply . | |||
| Target | Multi-arc, MF twin targets or flat target can be choiced | |||
| Structure | Vertical single(side front) door(double water jacket type water cooling or sink type cooling), pump system postposition | |||
| Pump system | Molecular pump (diffusion pump) + Roots pump + Mechanical pump+Holding pump (optional: turbo pump,poly cold system) or Cryopump | |||
| Heating system | Room temperature to 350 ℃ adjustable and controllable(PID control) , heating by stainless steel heater pipe | |||
| Air system | Mass flow controller(1-4road) | |||
| Ultimate Vacuum | 6×10﹣4 Pa(no-loading,clean chamber） | |||
| Pumping Time | No-loading from air to 5×10﹣3 Pa＜13mins | |||
| Pressure-keeping rates | 1h≤0.6pa | |||
| Work piece rotary | Top rotary/bottom rotary+public rotation and self-rotations frequency conversion stepless controllable and adjustable,0-20 shift/min | |||
| Control mode | Manual + semi-automatic + Automatic integration/touch screen + PLC | |||
| Customized Service | Welcome to Non-standard and Special requirements,OEM/ODM orders.Customization of inner chamber size, temperature&humidity range,etc. | |||
| The technical information will be subjected to change without notice | ||||
