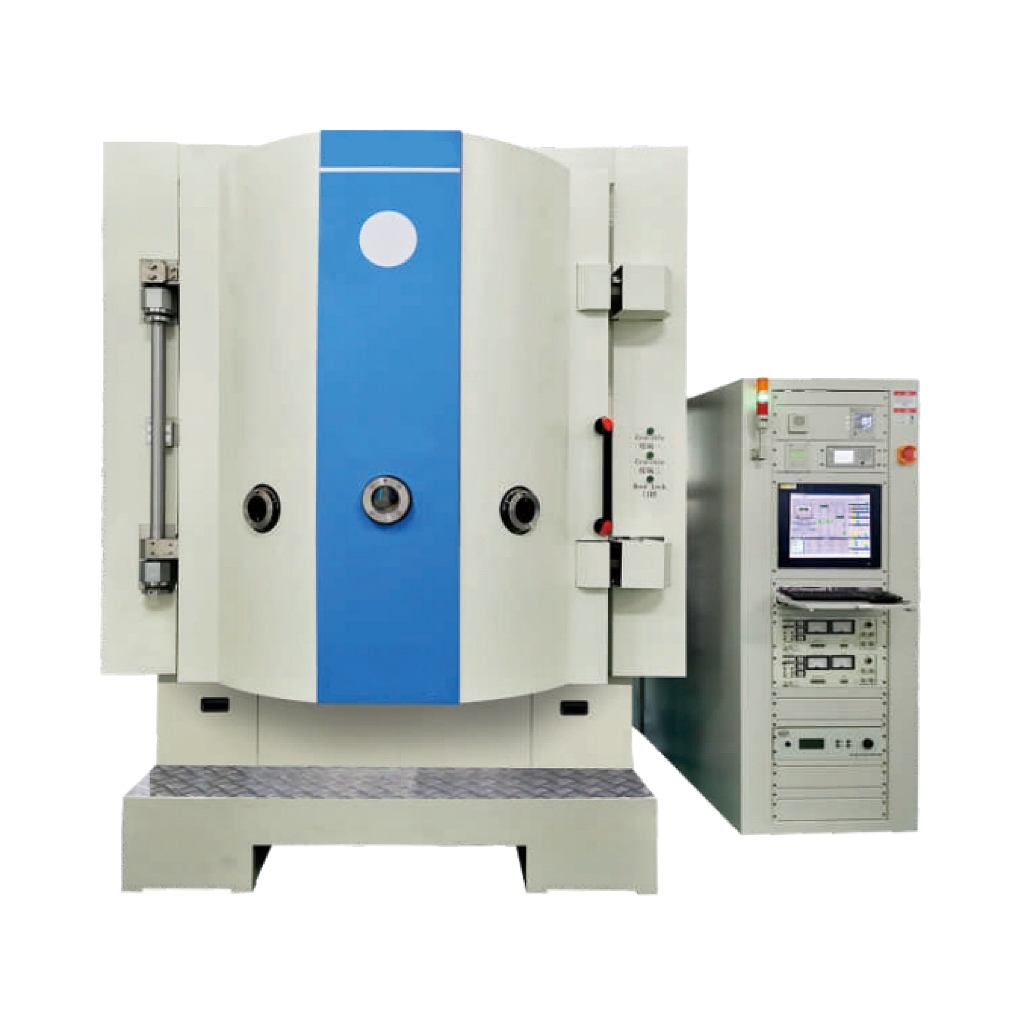

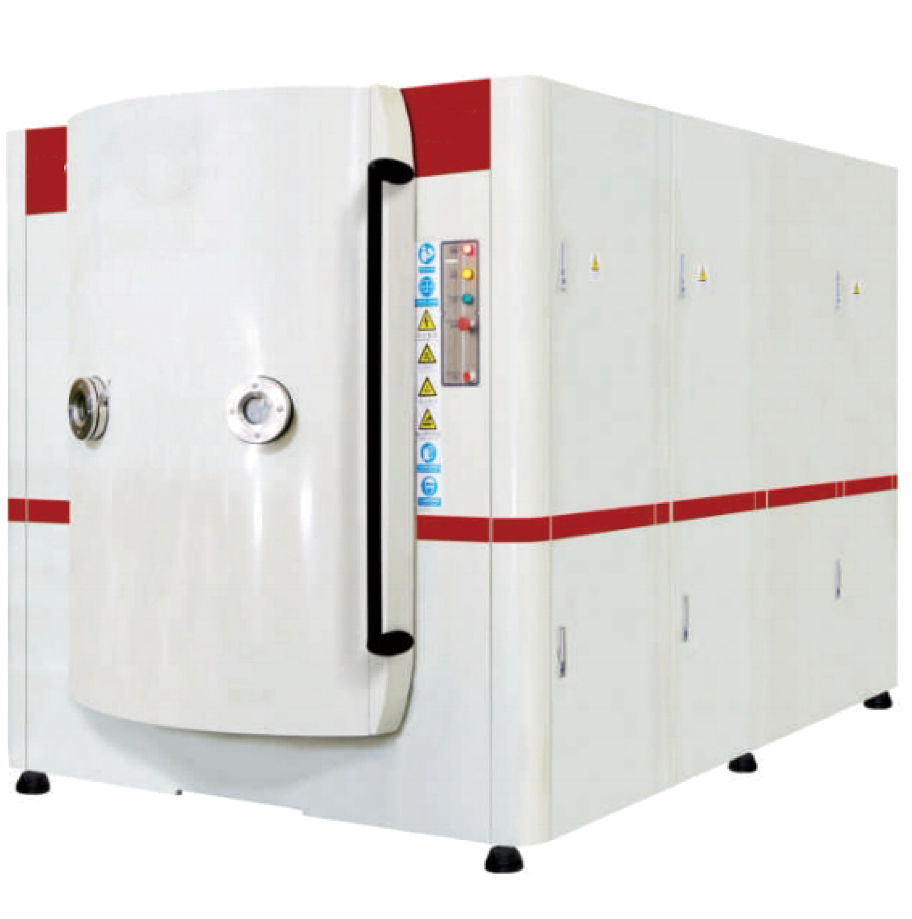

The machine adopts the resistance heating in the vacuum chamber, to melt and vaporize the metal wire (aluminum wire) cling to the resistance wire. The vaporized metal molecule deposit on the substrates, to gain the smooth film as well as high reflectivity. Thus the surface of the items can be decorated and beautified.
Characteristic: reasonable structure, even film, good-quality film forming, quick pumping speed, the cycle of short, high efficiency and easy operation, low energy consumption and performance advantages of stability.
Applied industry: Widely used in automotive, audio and various small appliances, computers, clocks and watches, toys, cell phones, reflective Cup, cosmetics, toys, tableware, sanitary ware, shoe heel, ABS, PS, PP, PC, PVC, PET, nylon, metal, Boli, glass, ceramics, TPU, etc. Electroplating effects: general electroplating-face, dumb-(semi-mute, all dumb), the electroplating process wrinkles, lampworking, raindrops, seven colors;
Coating color: gold, silver, red, blue, green, purple, multi color, and so on.
We can make design the dimension of the vacuum chamber according to your requirement. We can also design and configure the vacuum unit and electric controlling system according to your requirement.
PRODUCT ADVANTAGE.
Cathode Arc Ion Vacuum Coating Equipment includes the following key Features:
1, High yield: Large chamber, 6 / 8 axis rotating frame, high efficiency increase production
2, Simple:Easy to operate and maintain
3, Low cost: Low cost of single piece coating
4, Repeatability:Fully automated repeatable coating process
5, Remote access: Provide factory remote diagnostics
6, Environment: Green production, no pollution
Technical Parameters:
| Model | GEVC-2000 | GEVC-1800 |
| Size | Ф2000×H2200mm | Ф1800×H2000mm |
| Coating | Semitransparent film, non-conducting film, gold, silver, red, blue, green, purple, seven color, etc | |
| Power supply | Thermal evaporation power, ion bombard power, RF power | |
| Target | Multi-arc, MF twin targets or flat target can be choiced | |
| Structure | Vertical double/single door, horizontal single door, pump system postposition | |
| Pump system | Molecular pump (diffusion pump) + Roots pump + Mechanical pump+Holding pump (optional: turbo pump,poly cold system) or Cryopump | |
| Heating system | Room temperature to 350 ℃ adjustable and controllable(PID control) , heating by stainless steel heater pipe | |
| Air system | Mass flow controller(1-4road) | |
| Ultimate Vacuum | 6×10﹣4 Pa(no-loading,clean chamber） | |
| Pumping Time | No-loading from air to 5×10﹣2 Pa＜6 mins | |
| Pressure-keeping rates | 1h≤0.6pa | |
| Work piece rotary | 6 axis/8 axis/9 axis Public rotation/Frequency control | |
| Control mode | Manual + semi-automatic + Automatic integration/touch screen + PLC | |
| Customized Service | Welcome to Non-standard and Special requirements,OEM/ODM orders.Customization of inner chamber size, temperature&humidity range,etc. | |
| The technical information will be subjected to change without notice | ||
