This series machine is safety, environmental friendly, process stability, rich color film, color uniform, abrasion-resistant, corrosion, high temperature, good adhesion and is not easily fade.It can coat TiN titanium gold film; TiC, CrC gun black, black, gray series films; ZrN zirconium gold, champagne gold, brass color series film; TiCN rose gold, rose red, burgundy, brown color series layer; TiO sapphire blue, green, pink, rainbow color series films etc.
It is widely used in stainless steel sheet, stainless steel pipe (up to 6 m), stainless steel display rack, stainless steel LOGO, locks, handles, bathroom hardware, stainless steel utensils and plastic plating parts, ceramics and other surface coating processes.
PRODUCT ADVANTAGE.

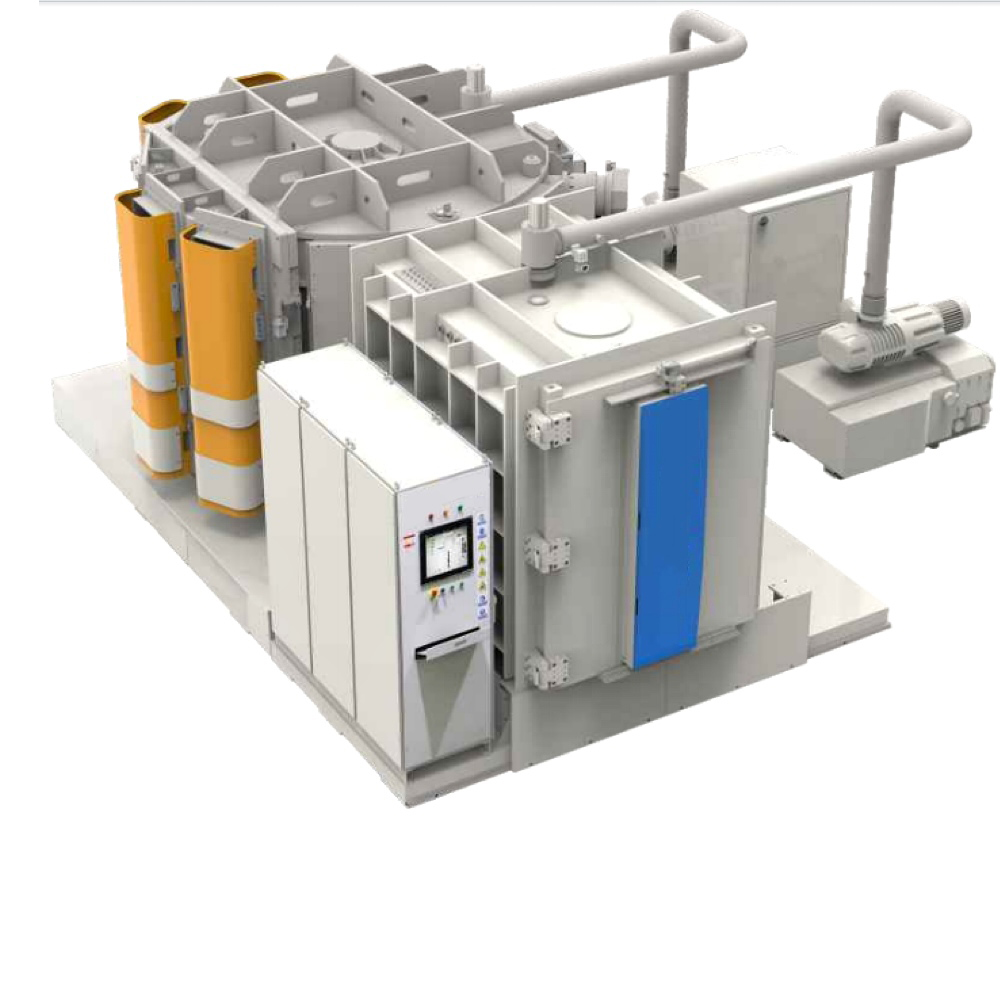

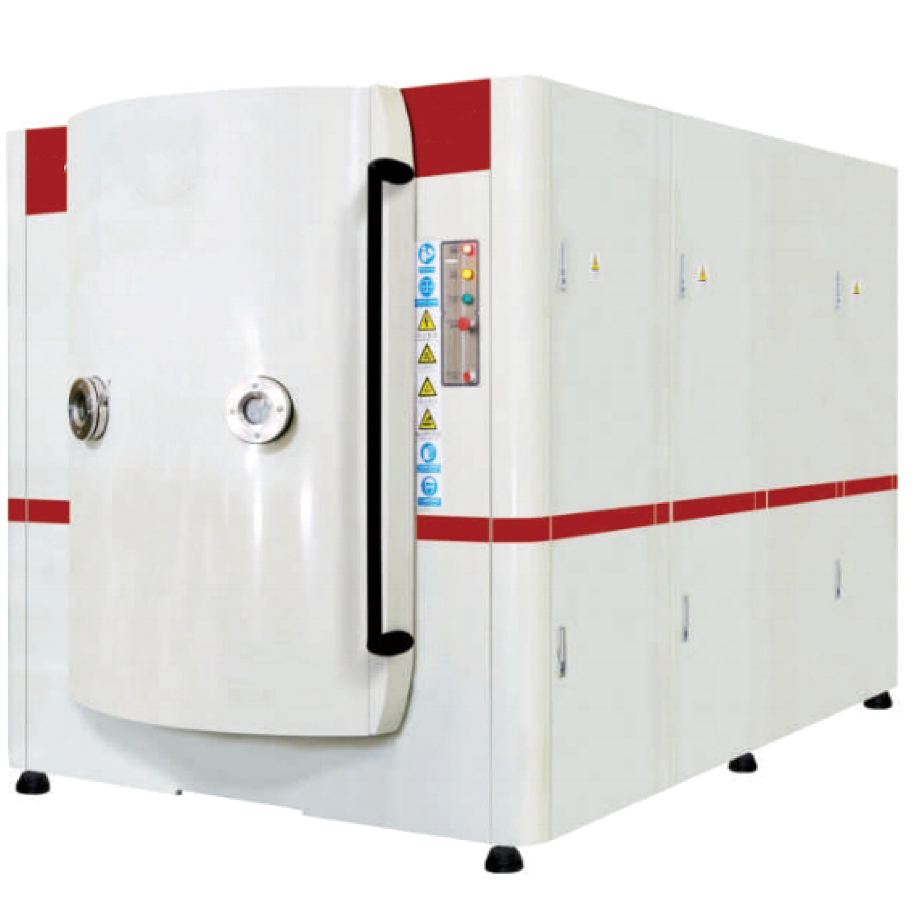

Horizontal Large-sacel Ion Vacuum Coating Equipment includes the following key Features:
1, Repeatability: Accurate parameter control, automatic control and repeatable coating process
2, Decorative: Multi color, uniform and bright surface
3, Effective: Large cavity space, short process, friendly software control
4, Strong combination: Reactive technology with high ionization rate and plasma density
5, Remote access: Provide factory remote diagnostics
6, Environment: Green production, no pollution
Technical Parameters:
| Model | GHIV-3600 | GHIV-4000 | GHIV-2300 | GHIV-2500 |
| Size | Ф2200×H4200mm | Ф2200×H7000mm | Ф2800×H5200mm | Ф3000×H4200mm |
| Coating System | Arc evaporation source,coating auxiliary ion dedicated power supply | |||
| Inflation system | Mass flowmeter | |||
| Power supply | DC power supply, intermediate frequency power supply, pulse power supply (bias power supply, arc power supply) | |||
| Target | Multi-arc, MF twin targets or flat target can be choiced | |||
| Structure | Vertical front door structure is equipped with air extraction system and water cooling system | |||
| Pump system | Molecular pump (diffusion pump) + Roots pump + Mechanical pump+Holding pump (optional: turbo pump,poly cold system) or Cryopump | |||
| Vacuum Measurement System | Pirani + cold cathode + film gauge | |||
| Ultimate Vacuum | 5 ×10﹣4 Pa(no-loading,clean chamber） | |||
| Pumping Time | No-loading from air to 5×10﹣3 Pa＜13mins | |||
| Pressure-keeping rates | 1h≤0.6pa | |||
| Arc Source | 22 set -28 set | |||
| 200A-300A | ||||
| Bias power supply | 60kW / set | |||
| Working rotation mode | Multi axis planetary public rotation, frequency control (controllable and adjustable) | |||
| Working baking temperature | Normal temperature to 450 ℃ controllable and adjustable (PID temperature control) | |||
| Process gas | Automatic filling system for 3 or 4-way process gas flow control and display system | |||
| Argon, nitrogen, oxygen, acetylene, etc | ||||
| Cooling mode | Water cooling cycle mode, with industrial cooling tower or industrial chiller (refrigerator) or cryogenic system. (provided by customer) | |||
| Control mode | PLC + touch screen operation or computer control, manual, semi-automatic, automatic mode | |||
| Supply index | Pressure 0.5-0.8MPa、Water temperature ≤25℃、Hydraulic pressure ≥0.2MPa | |||
| Alarm and protection | Alarm for water shortage, over-current, over-voltage, open circuit and other abnormal conditions of pump and target, and implement corresponding protection measures and electrical interlocking function | |||
| Total power | 185-200KW | |||
| Output frequency | The voltage is 380V ± 5%, and the frequency is 50 Hz (it can be configured according to the customer's national electricity standard) | |||
| Area | 35～55㎡ | |||
| Control mode | Manual + semi-automatic + Automatic integration/touch screen + PLC | |||
| Customized Service | Welcome to Non-standard and Special requirements,OEM/ODM orders.Customization of inner chamber size, temperature&humidity range,etc. | |||
| The technical information will be subjected to change without notice | ||||
