This series machine is safety, environmental friendly, process stability, rich color film, color uniform, abrasion-resistant, corrosion, high temperature, good adhesion and is not easily fade.It can coat TiN titanium gold film; TiC, CrC gun black, black, gray series films; ZrN zirconium gold, champagne gold, brass color series film; TiCN rose gold, rose red, burgundy, brown color series layer; TiO sapphire blue, green, pink, rainbow color series films etc.
It is widely used in stainless steel sheet, stainless steel pipe (up to 6 m), stainless steel display rack, stainless steel LOGO, locks, handles, bathroom hardware, stainless steel utensils and plastic plating parts, ceramics and other surface coating processes.
PRODUCT ADVANTAGE.

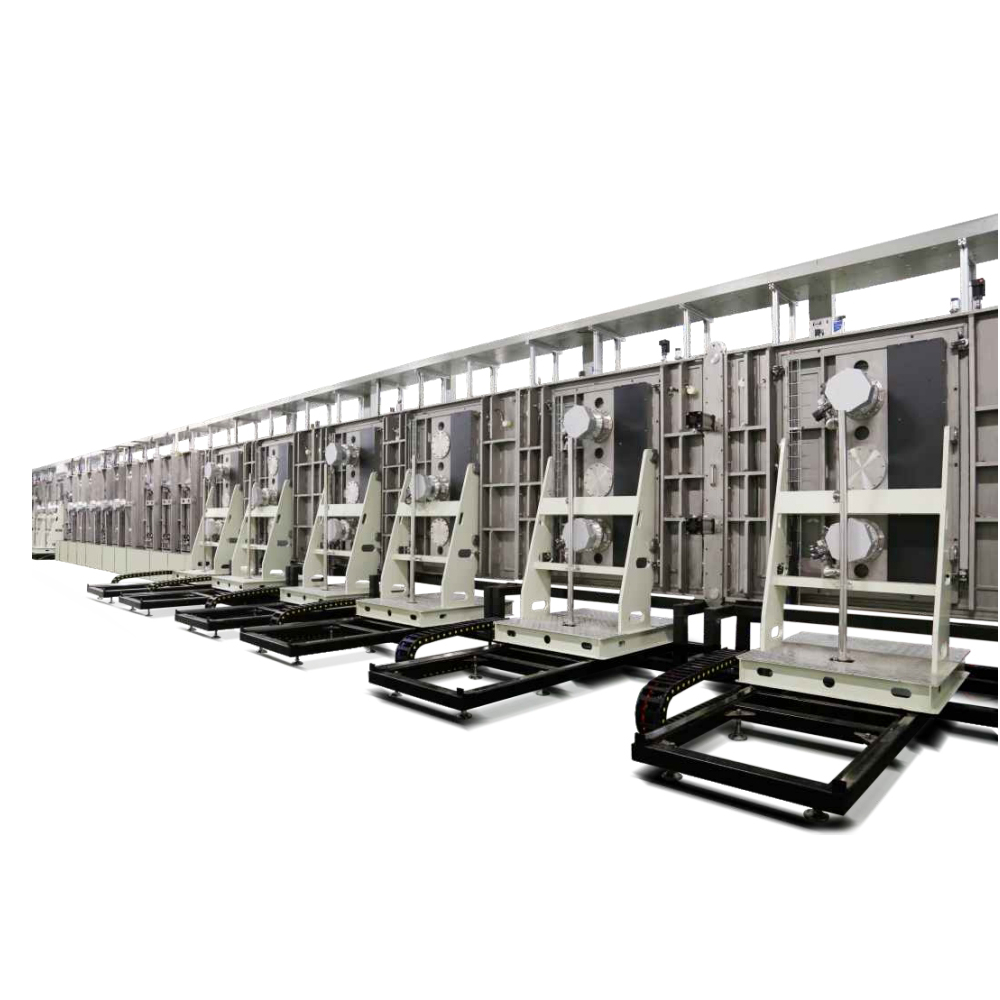

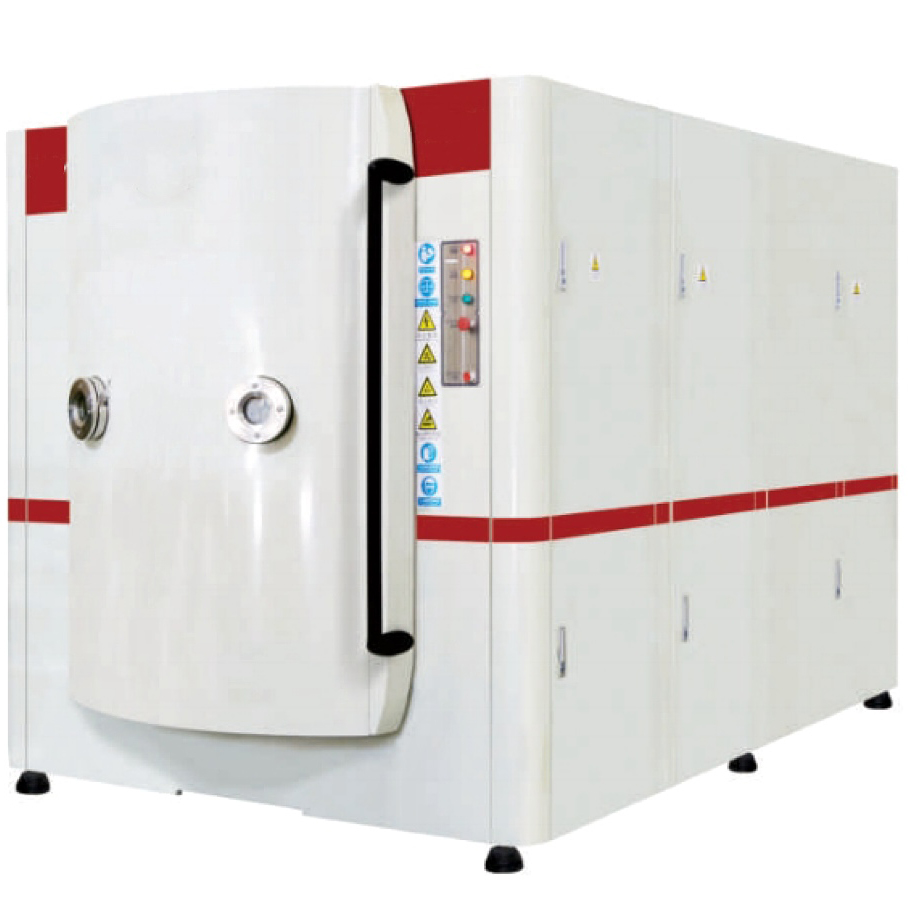

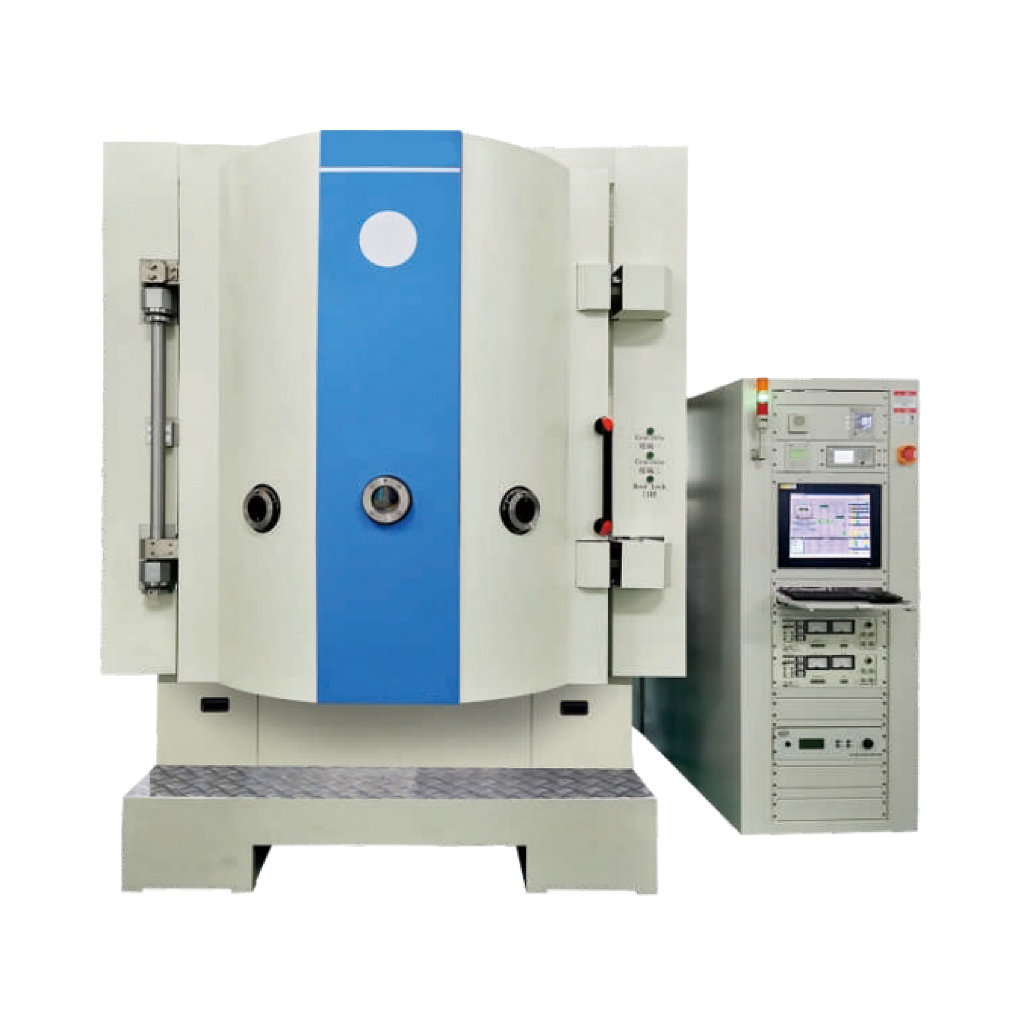

Cathode Arc Ion Vacuum Coating Equipment includes the following key Features:
1, Repeatability: Accurate parameter control, automatic control and repeatable coating process
2, Decorative: Multi color, uniform and bright surface
3, Effective: Large cavity space, short process, friendly software control
4, Strong combination: Reactive technology with high ionization rate and plasma density
5, Remote access: Provide factory remote diagnostics
6, Environment: Green production, no pollution
Technical Parameters:
| Model | GVHI-3600 | GVHI-4000 | GVHI-2300 | GVHI-2500 | GVHI-2800 | GVHI-3300 | GVHI-4000 |
| Size | Ф2200×H3600mm | Ф2200×H4000mm | Ф2300×H4500mm | Ф2500×H4500mm | Ф2800×H2000mm | Ф3300×H3000mm | Ф4000×H2000mm |
| Coating System | Arc evaporation source,coating auxiliary ion dedicated power supply | ||||||
| Inflation system | Mass flowmeter | ||||||
| Power supply | DC power supply, intermediate frequency power supply, pulse power supply (bias power supply, arc power supply) | ||||||
| Target | Multi-arc, MF twin targets or flat target can be choiced | ||||||
| Structure | Vertical front door structure is equipped with air extraction system and water cooling system | ||||||
| Pump system | Molecular pump (diffusion pump) + Roots pump + Mechanical pump+Holding pump (optional: turbo pump,poly cold system) or Cryopump | ||||||
| Vacuum Measurement System | Pirani + cold cathode + film gauge | ||||||
| Ultimate Vacuum | 5 ×10﹣4 Pa(no-loading,clean chamber） | ||||||
| Pumping Time | No-loading from air to 5×10﹣3 Pa＜13mins | ||||||
| Pressure-keeping rates | 1h≤0.6pa | ||||||
| Arc Source | 22 set -28 set | ||||||
| 200A-300A | |||||||
| Bias power supply | 60kW / set | ||||||
| Working rotation mode | Multi axis planetary public rotation, frequency control (controllable and adjustable) | ||||||
| Working baking temperature | Normal temperature to 450 ℃ controllable and adjustable (PID temperature control) | ||||||
| Process gas | Automatic filling system for 3 or 4-way process gas flow control and display system | ||||||
| Argon, nitrogen, oxygen, acetylene, etc | |||||||
| Cooling mode | Water cooling cycle mode, with industrial cooling tower or industrial chiller (refrigerator) or cryogenic system. (provided by customer) | ||||||
| Control mode | PLC + touch screen operation or computer control, manual, semi-automatic, automatic mode | ||||||
| Supply index | Pressure 0.5-0.8MPa、Water temperature ≤25℃、Hydraulic pressure ≥0.2MPa | ||||||
| Alarm and protection | Alarm for water shortage, over-current, over-voltage, open circuit and other abnormal conditions of pump and target, and implement corresponding protection measures and electrical interlocking function | ||||||
| Total power | 185-200KW | ||||||
| Output frequency | The voltage is 380V ± 5%, and the frequency is 50 Hz (it can be configured according to the customer's national electricity standard) | ||||||
| Area | 35～55㎡ | ||||||
| Control mode | Manual + semi-automatic + Automatic integration/touch screen + PLC | ||||||
| Customized Service | Welcome to Non-standard and Special requirements,OEM/ODM orders.Customization of inner chamber size, temperature&humidity range,etc. | ||||||
| The technical information will be subjected to change without notice | |||||||
