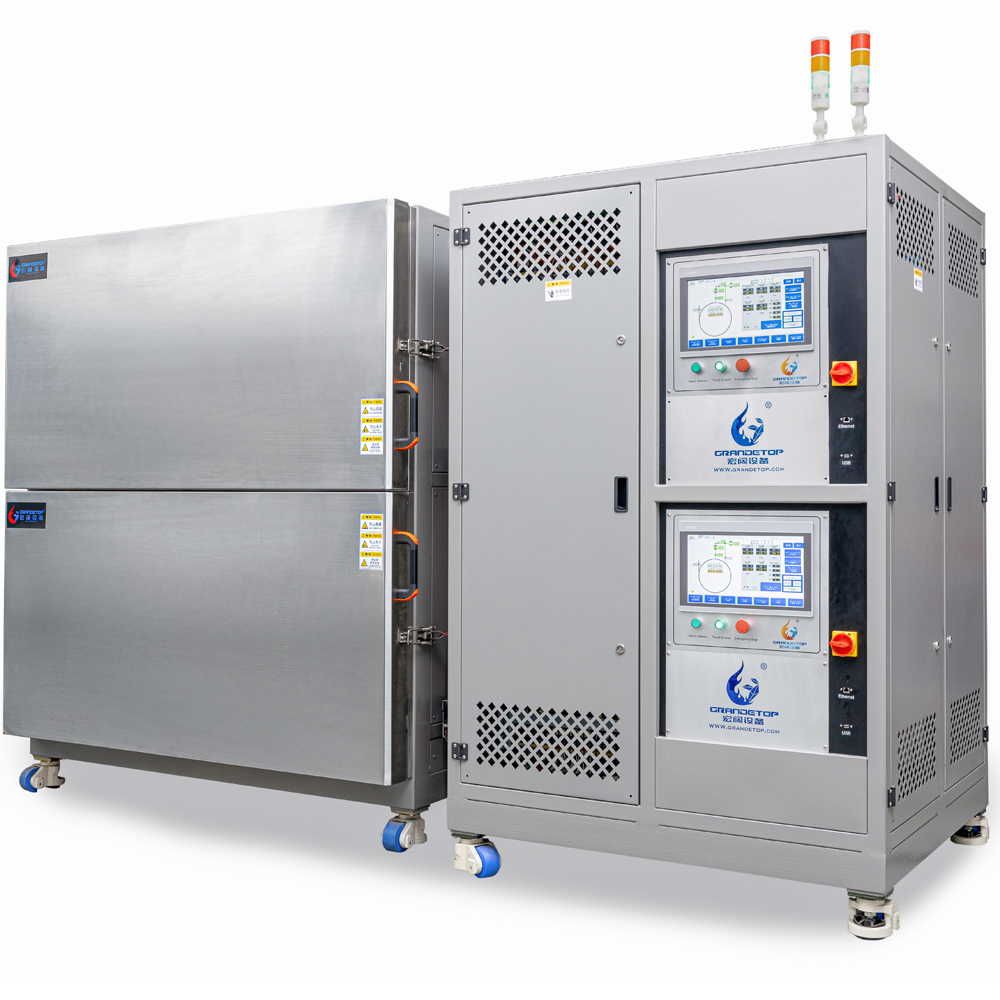

Diamond Vacuum Brazing Furnace

Mainly used for vacuum brazing and heat treatment of diamond tool base and diamond. Vacuum brazing of diamond tools such as diamond cutting tools, grinding tools and diamond drilling tools. Due to the special nature of diamonds, our company has developed this vacuum furnace for the diamond brazing industry. Also used in stainless steel, high temperature alloys, titanium alloys, non-ferrous metals, hard alloy vacuum brazing.

Inquire Now Next Product

Product Details

Technical Parameters:

Model	Inner Size(mm)	Max Temp（℃）	Ultimate Vacuum(Pa)	Temp Uniformity(℃)	Leak Rate Pa*L/S	Loading Capacity（Kg）
VBF009	200 * 200 * 300	1300	2* 10^–3	±4	1.0*10^﹣⁶	30
VBF028	300 * 300 * 400	1300	2* 10^–3	±4	1.0*10^﹣⁶	80
VBF075	400 * 400 * 600	1300	2* 10^–3	±4	1.0*10^﹣⁶	200
VBF140	500 * 500 * 700	1300	2* 10^–3	±4	1.0*10^﹣⁶	350
VBF260	600 * 600 * 900	1300	2* 10^–3	±4	1.0*10^﹣⁶	500
VBF460	700 * 700 * 1200	1300	2* 10^–3	±4	1.0*10^﹣⁶	700
VBF760	800 * 800 * 1500	1300	2* 10^–3	±4	1.0*10^﹣⁶	1000
Power Supply:AC 1Ψ 110V;AC 1Ψ 220V;AC 3Ψ 220V;3Ψ380V; 3Ψ400V; 3Ψ480V＋N＋G, 60/50Hz.
The technical information will be subjected to change without notice
Customized Service:Welcome to Non-standard, Special requirements,OEM/ODM orders.

ADVANTAGES

1. When the diamond brazing vacuum furnace is brazed, the whole component is uniformly heated, the thermal stress is small, and the deformation amount can be controlled to a minimum limit, which is particularly suitable for brazing products.

2. The diamond brazing vacuum furnace does not use brazing flux, and there are no defects such as voids and inclusions, which can save the cleaning process of residual flux after brazing, save time, improve working conditions and environment.

3. A diamond brazed vacuum furnace can simultaneously braze multiple adjacent welds or braze multiple components in the same furnace. High welding efficiency

4. The low pressure around the base metal and the brazing filler metal can eliminate volatile gases and impurities released at the brazing temperature, improve the properties of the base metal, and achieve very bright bonding.

PRODUCT PROPERTIES

Our special handling of pumping rate and process makes this equipment suitable for diamond brazing. For special products, user-friendly, it is also possible to design a built-in furnace (upper or lower discharge structure)Product:Diamond particles embedded in the matrix of the carcass

Effective heating zone:Minimum 200*200*300; maximum 800*800*1500 (can be customized)

Operating temperature:Up to 1300 ° C

Ultimate vacuum:2 * 10-3 (Pa)

Pressure rise rate:≤0.67 (Pa/h)

Temperature Controller:GRANDE5600;

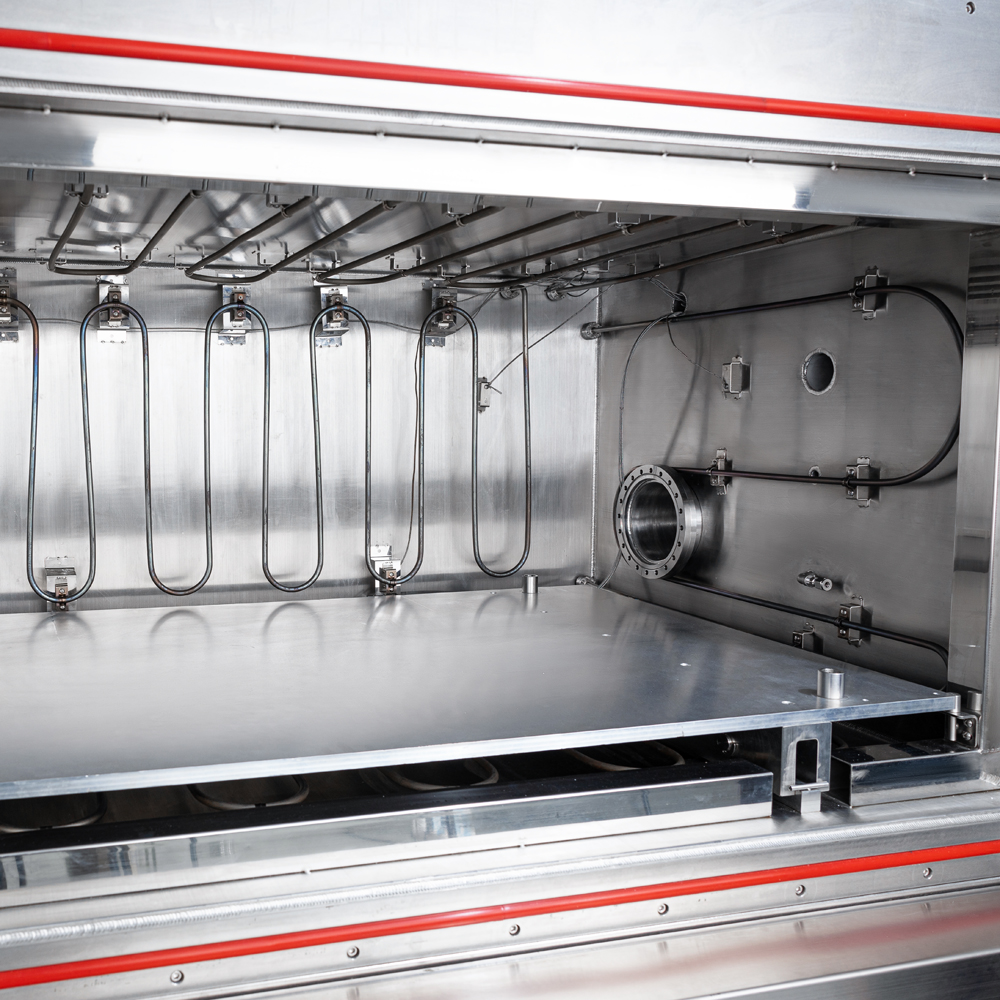

Structure:The furnace body is a horizontal single-chamber horizontal loading structure

Heating power: 45-300 (kW)

Loading amount:30-1000 (Kg)

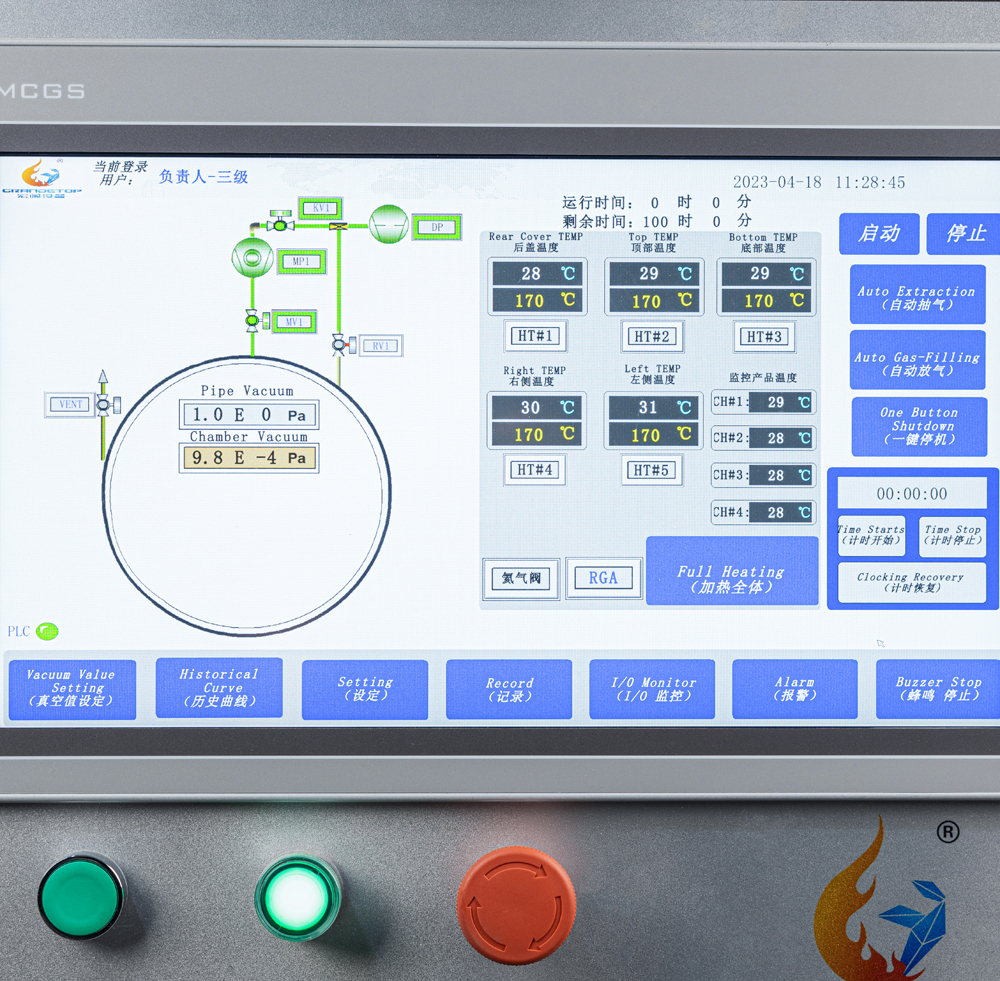

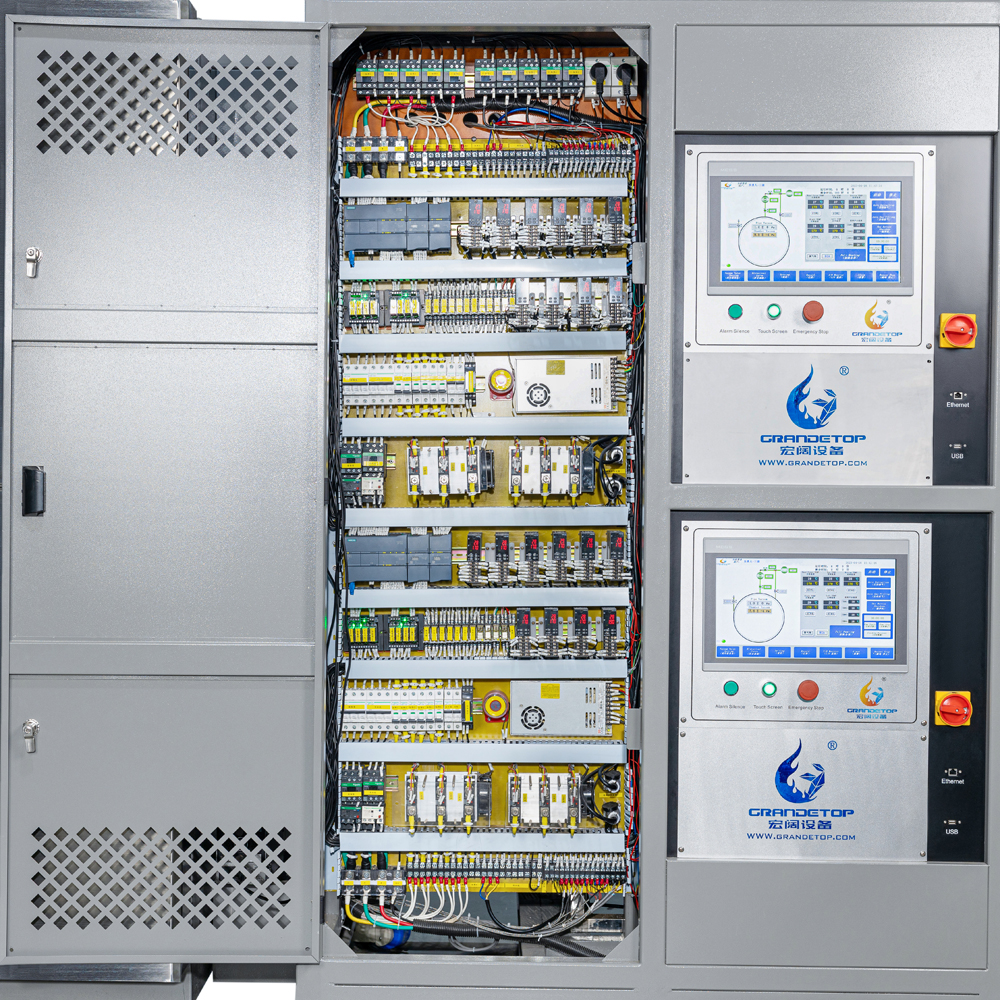

Operation panel:Touch screen / industrial computer

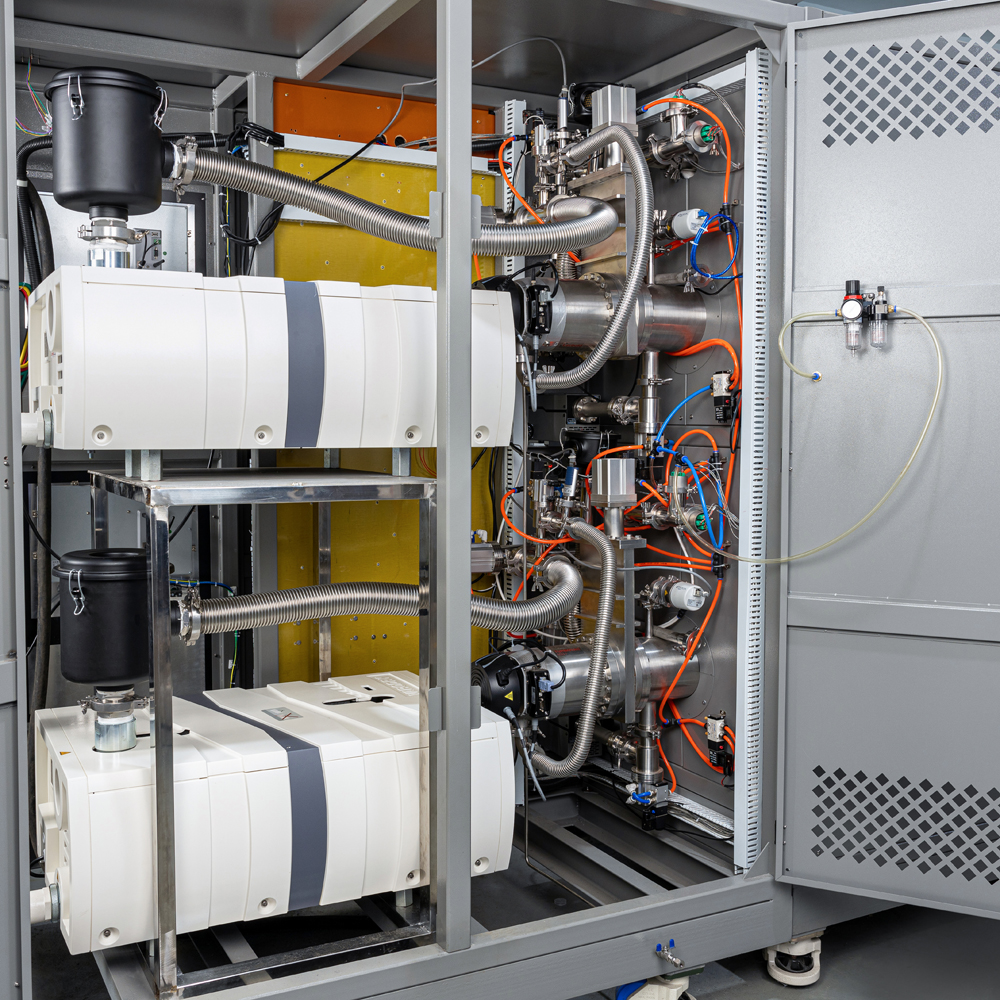

Vacuum pump:Foreign brands / Chinese brands

Furnace body:Full carbon steel / inner stainless steel / all stainless steel;
