Isostatic Pressing Sintering Furnace

Mainly used for pressure sintering of tungsten alloy, high specific gravity alloy, hard alloy, special ceramic and rare metal (such as tungsten, molybdenum, titanium) and other products. Sintered products, high density, good uniformity, excellent physical properties.

Technical Parameters:

(We can customize your own vacuum sintering furnace according to your special needs)

PRODUCT DETAIL PRESENTATION

The pressureless sintered silicon carbide sintering furnace is mainly used for ceramic non-metal firing. It is a high-purity, ultra-fine silicon carbide powder as a raw material, and a small amount of sintering aids such as boron, carbon, etc., in an inert gas or vacuum atmosphere at atmospheric pressure. In the case of sintering at a high temperature of 1950~2100 °C, the obtained product is almost completely dense and has a ceramic material with excellent mechanical properties.

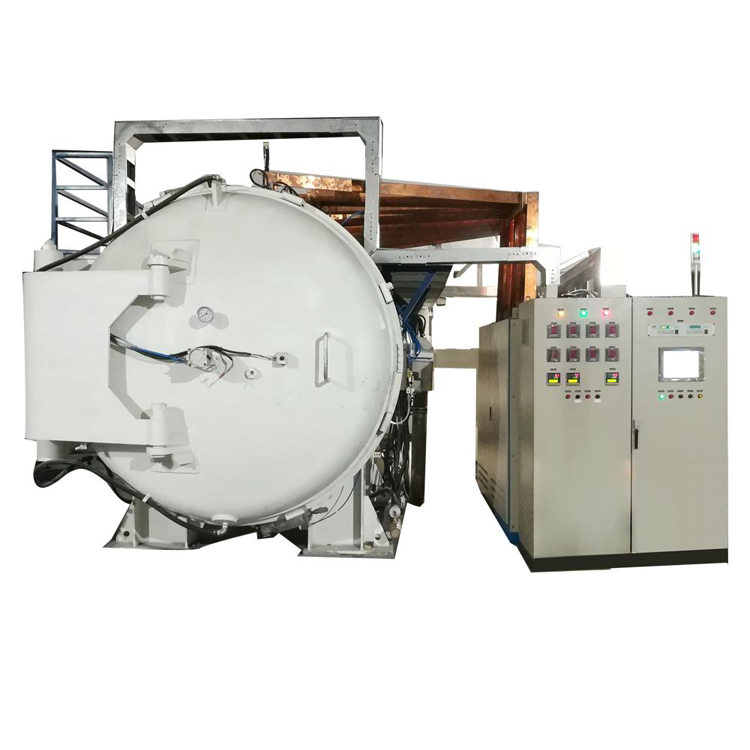

VEP ISOSTATIC PRESSING SINTERING FURNACE

Product Features and Special Configuration

Vacuum static pressure sintering furnace performance

It is used for isostatic pressing of sintered materials under high pressure gas and high temperature.

The hot isostatic pressing device is mainly composed of a pressure vessel, a gas pressurizing device, a heating furnace and a control system. The pressure vessel part mainly comprises a sealing ring, a pressure vessel, a top cover and a bottom cover; the gas pressurization equipment mainly comprises a gas compressor, a filter, a check valve, an exhaust valve and a pressure gauge; the heating furnace mainly comprises a heating body , sensor and thermometer or thermocouple; control system consists of power control, temperature control and pressure control; Sigma data processing software.

The equipment is designed to work at a pressure of 5-50 MPa and a maximum operating temperature of 2000 °C.

Working environment is nitrogen and inert gas

Product Features and Special Configuration:

Equipment technical characteristics:

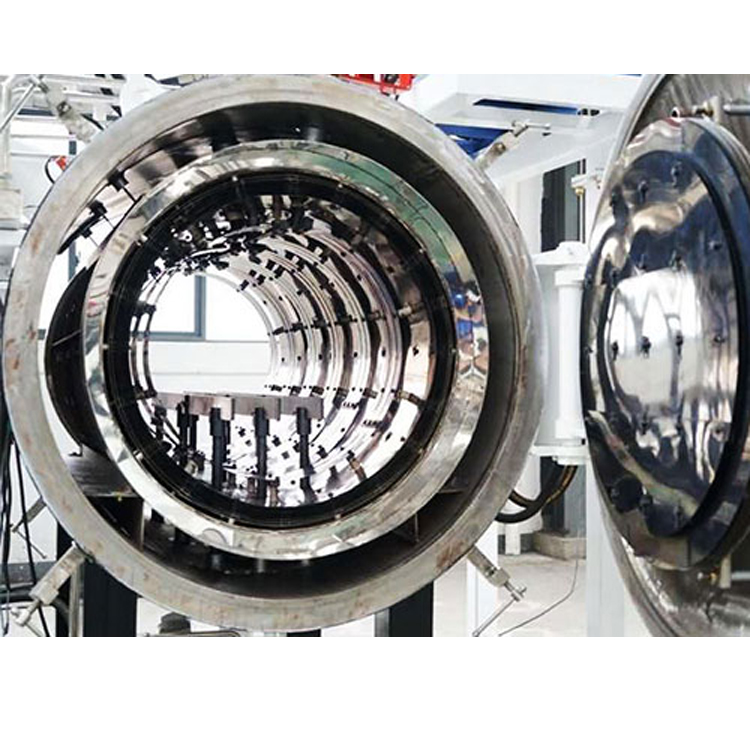

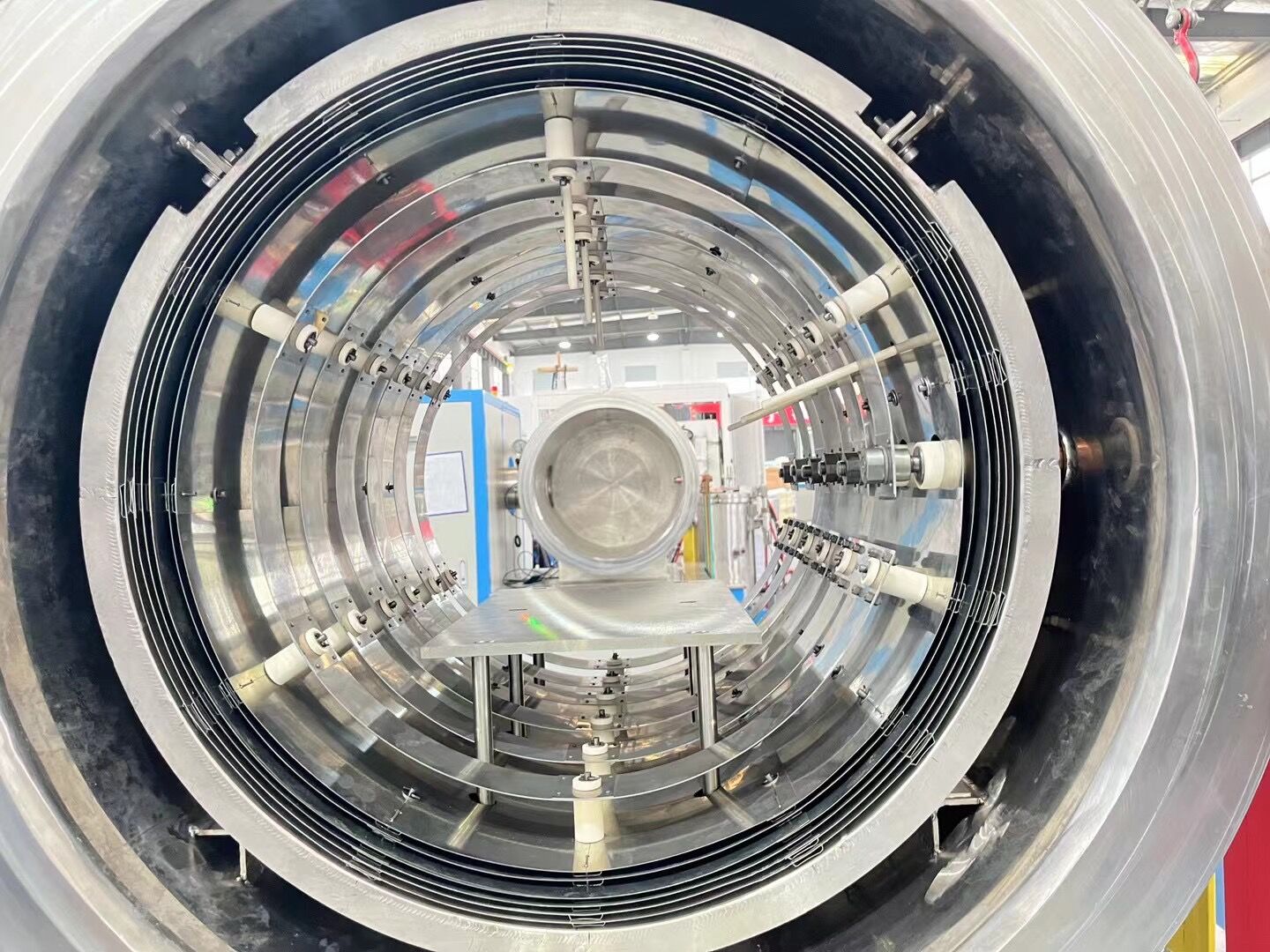

Sintering furnace using a special furnace structure and heater layout, good temperature uniformity;

Sintering furnace optional special structure degreasing box, sealing effect, degreasing completely, no pollution to the furnace components;

Sintering furnace with flexible vacuum, vacuum sintering, pressure sintering, a positive pressure sintering, partial pressure sintering and other functions;

With over-temperature over-temperature and other alarm, mechanical automatic pressure protection, interlocking and other functions, equipment, high safety;

Sintering furnace equipment with remote operation, remote fault diagnosis and remote software upgrades and other functions;

Vacuum static pressure sintering furnace features:

It adopts pneumatic furnace door locking system, which is easy to operate and safe.

The equipment is equipped with a two-level safety alarm system and an over-temperature alarm system. It has the functions of water cut, power off, phase loss and break alarm.

Equipped with RS-485 communication interface, Sigma data management software, with paperless recording history data and temperature rise curve, correcting temperature deviation error function, can manage multiple devices and remote fault diagnosis analysis.

With PID parameter self-tuning function, it can edit 30-section automatic heating program.

A variety of safety protection design, good safety performance and long service life.

Can be designed according to user requirements.

Optional configuration:

Furnace: all-carbon steel/ inner stainless steel / all stainless steel;

Vacuum pump: foreign brands / Chinese brands;

Operation panel: touch screen / industrial computer;

Temperature controller: SHIMADEN / EUROTHERM;

Inflatable pressure options: 30Bar / 60Bar / 100Bar;
