Silicon Carbide Pressureless Sintering Furnace for silicon carbide products without pressure sintering process. Mainly used in the production of non-pressure sintered silicon carbide seal ring, sleeve shaft, nozzle, impeller, bullet-proof products emerging ceramic products.
Pressureless silicon carbide has the following advantages: chemical corrosion resistance, high mechanical strength, high thermal conductivity, wear a good self-lubricating, it is widely used in petrochemical, power, light industry, aviation, automotive, paper, sewage treatment And other industrial areas.
Technical Parameters
| Model | Inner Size(mm) | Max Temp（℃） | Ultimate Vacuum(Pa) | Temp Uniformity(℃) | Leak Rate Pa*L/S | Loading Capacity（Kg） |
| VNPS225 | 200*200*500 | 2200 | 3.0*10-1 | ±5 | ≤0.5 | 80 |
| VNPS337 | 300*300*700 | 2200 | 3.0*10-1 | ±5 | ≤0.5 | 120 |
| VNPS449 | 400*400*900 | 2200 | 3.0*10-1 | ±5 | ≤0.5 | 200 |
| VNPS6620 | 600*600*2000 | 2200 | 3.0*10-1 | ±5 | ≤0.4 | 600 |
| VNPS6625 | 600*600*2500 | 2200 | 3.0*10-1 | ±5 | ≤0.4 | 800 |
| VNPS6630 | 600*600*3000 | 2200 | 3.0*10-1 | ±5 | ≤0.4 | 1000 |
| Power Supply:AC 1Ψ 110V;AC 1Ψ 220V;AC 3Ψ 220V;3Ψ380V; 3Ψ400V; 3Ψ480V＋N＋G, 60/50Hz. | ||||||
| The technical information will be subjected to change without notice | ||||||
| Customized Service:Welcome to Non-standard,Special requirements,OEM/ODM orders. | ||||||
(We can customize your own vacuum sintering furnace according to your special needs)
PRODUCT DETAIL PRESENTATION
The pressureless sintered silicon carbide sintering furnace is mainly used for ceramic non-metal firing. It is a high-purity, ultra-fine silicon carbide powder as a raw material, and a small amount of sintering aids such as boron, carbon, etc., in an inert gas or vacuum atmosphere at atmospheric pressure. In the case of sintering at a high temperature of 1950~2100 °C, the obtained product is almost completely dense and has a ceramic material with excellent mechanical properties.

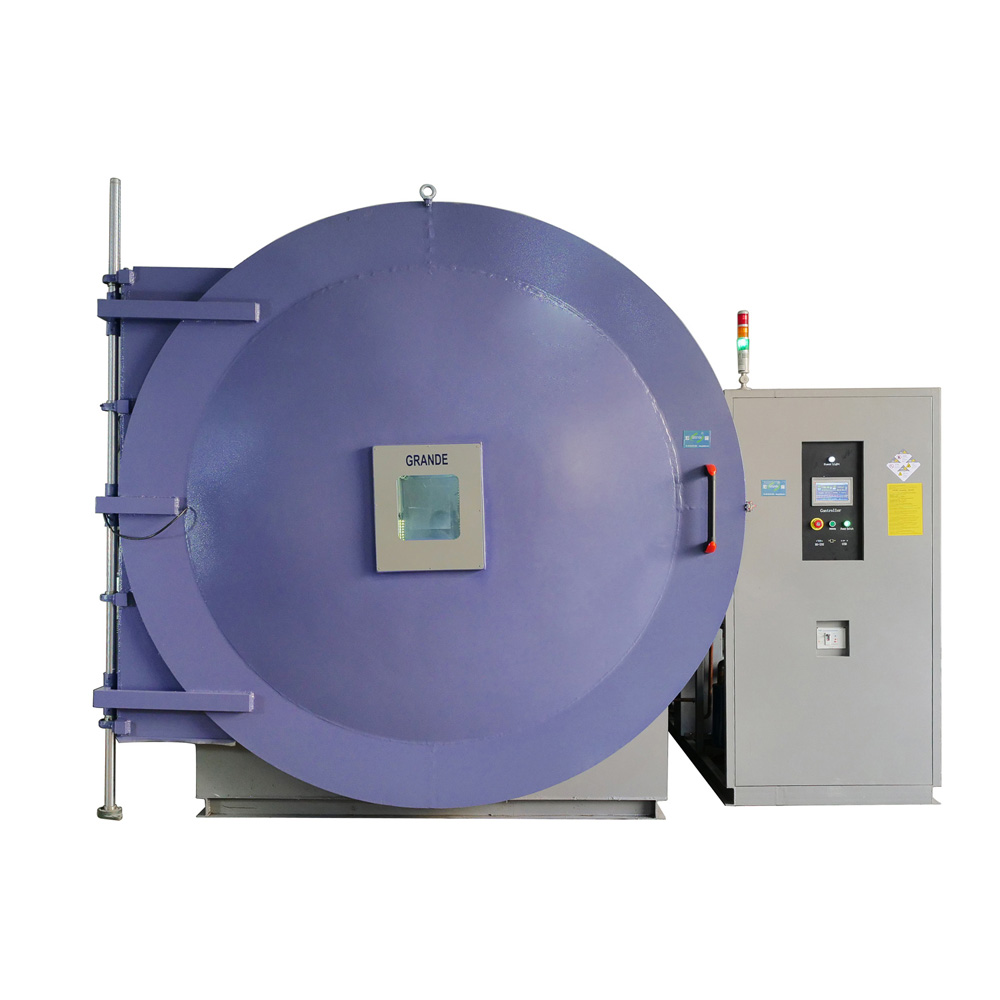

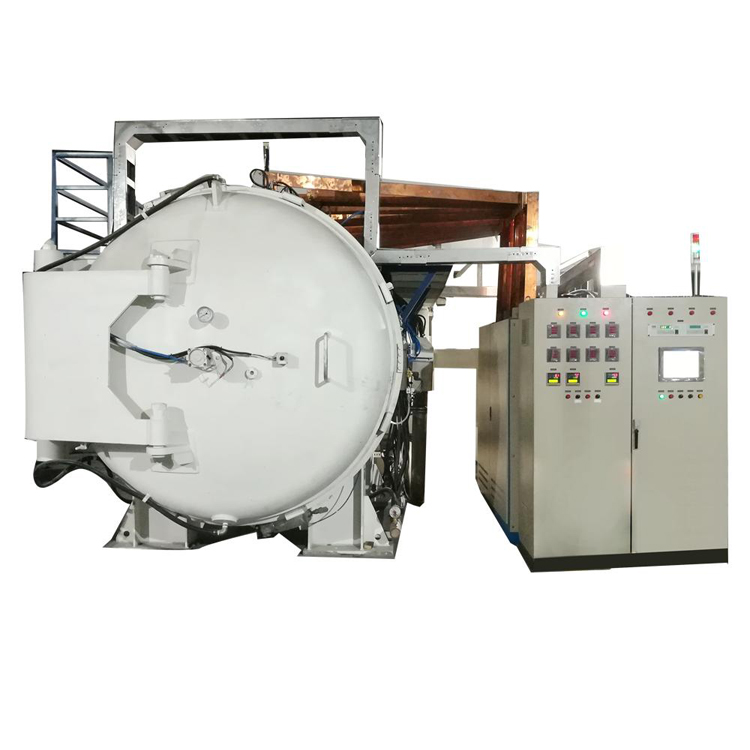

VNPS PRESSURELESS SINTERING FURNACE
Product Features and Special Configuration
Application and characteristics of silicon carbide pressureless vacuum sintering furnace
It is widely used in the pressureless sintering process of silicon carbide (SiSIC) ceramics. The silicon carbide products produced by the pressureless sintering furnace have better wear resistance, high temperature resistance and corrosion resistance.
Efficient debinding/dusting device (with a new structure of air intake system).
Advanced, fast and maintenance-free rapid cooling structure. (avoiding the drawbacks of old-fashioned structures with low efficiency and easy water leakage)
A variety of temperature measurement methods (K, WRe and other thermocouples, infrared thermometers) or a combination of choices.
For the speciality of silicon carbide grinding cylinder, our company can customize vertical silicon carbide reaction sintering furnace; if necessary, telephone consultation; horizontal furnace, single-side / double-side reclaiming method; vertical furnace, upper/lower reclaiming
Optional configuration
Furnace: all-carbon steel / inner stainless steel / all stainless steel·
Vacuum pump: foreign brands / Chinese brands
Operation panel: touch screen / industrial computer
Temperature controller: SHIMADEN / EUROTHERM
Knowledge point
Chinese name: Pressureless sintered silicon carbide ceramics
English name: pressureless sintered silicon carbide ceramics
Definition: Using high-purity, ultra-fine silicon carbide powder as raw material, adding a small amount of sintering aids, such as boron, carbon, etc., in an inert gas or vacuum atmosphere at atmospheric pressure, sintering at a high temperature of 1950~2100 °C, the obtained product is almost completely dense. , ceramic materials with excellent mechanical properties.
Applied science Materials science and technology (a subject), inorganic non-metallic materials (two subjects), ceramics (three subjects), advanced ceramics (four subjects), first-level disciplines, materials science and technology, secondary disciplines, inorganic non-metallic materials
Product Features and Special Configuration
Equipment technical characteristics:
Furnace furnace heating chamber with square design to ensure a good temperature uniformity and high temperature stability
Equipped with vacuum sintering and partial pressure sintering function
The furnace is equipped with temperature, pressure, water pressure, vacuum and other interlocking features, with a high degree of safety protection and prevention
With remote control operation, remote fault diagnosis and remote program updates and other functions
