Silicon Carbide Sintering Furnace

The main purpose
Mainly used in the production of silicon carbide ceramic roller, beam, desulfurization nozzle, nozzle, cold air pipe, shed, concrete, heat pipe, radiant pipe and outer pipe, nozzle, bushing, seal and high temperature, wear resistant, corrosion resistant silicon carbide ceramic Shaped parts, surface treatment, sealing, heat exchange and solar energy industry.

PRODUCT ADVANTAGES

1. High strength, high hardness, wear and corrosion resistance

2. Antioxidation, thermal shock resistance and thermal conductivity

3.Product performance is more stable when sintered at high temperature

4.Excellent performance against high temperature creep

PRODUCT PROPERTIES

In the future, components produced from reaction-sintered silicon carbide will increasingly be used in the fields of ultra-high temperature, thermal shock, wear and high corrosion materials.

1.  Product:Nitride silicon carbide kiln furniture Stainless steel powder metallurgy parts

2. Product size:Up to .400x400x30 mm

3. Heating temperature:Up to 2500 ° C

4. High temperature zone volume:0.01m3, 0.02m3, 0.03m3, 0.05m3, 0.1m3, 0.15m3, 0.2m3, 0.3m3, 0.5m3, 0.6m3, 0.8m3 1m3

5. Temperature uniformity:≤±10°C temperature measurement: 1800° or less using tungsten-rhodium thermocouple to measure temperature, over 1800 degrees using far-infrared optical temperature measurement range is 1000-3000°C; temperature measurement accuracy is 0.2~0.75%

6. temperature control:Program control and manual control; Temperature control accuracy: ±1 °C

7. Furnace type:Horizontal vacuum furnace, protective atmosphere Sintering furnace

8. Working atmosphere in the furnace:Vacuum, hydrogen, nitrogen, inert gas, etc.

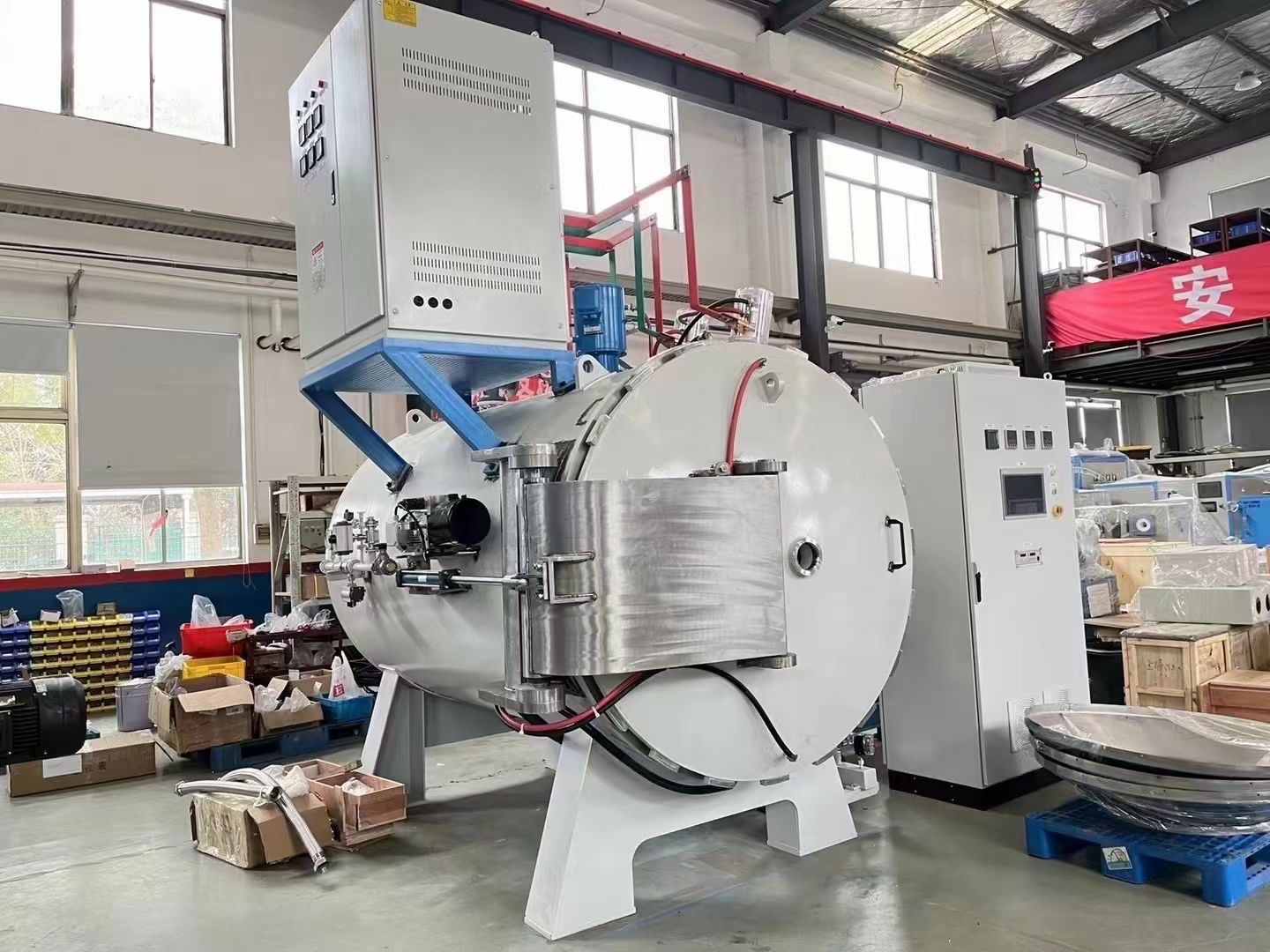

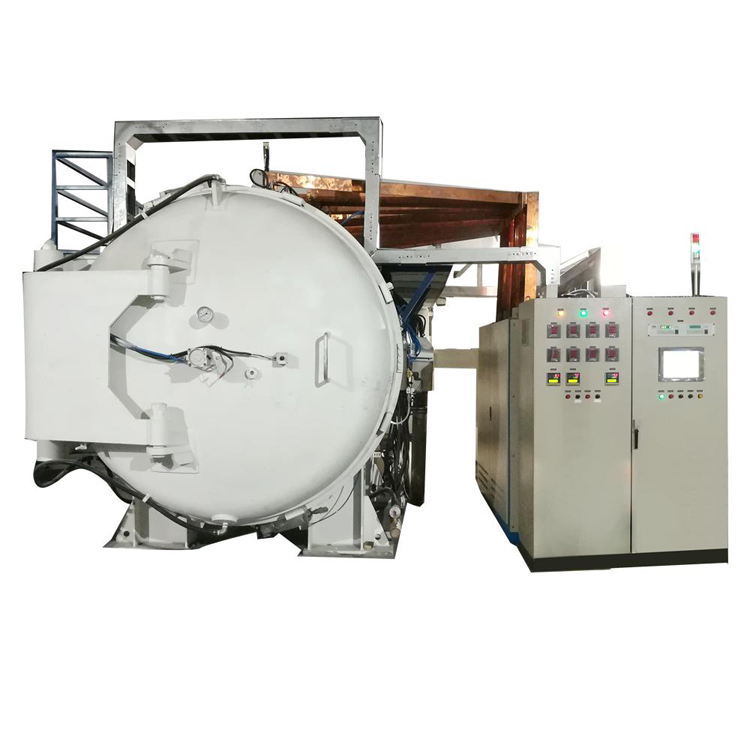

SILICON CARBIDE Sintering FURNACE

Product Features and Special Configuration

1. The sintered silicon carbide material is formed by Sintering atomic crystals composed of strong covalent bonds of Si-C and flexible carbon at 2100 ° C in a vacuum Sintering furnace, corresponding to new energy, chemical, shipbuilding, scientific research and defense military technology. Important role

2. Pressureless sintered silicon carbide has the characteristics of corrosion resistance, wear resistance, high electrical conductivity and high temperature stability of the original pressureless silicon carbide material. The addition of carbon improves the self-lubricating property, reduces the friction coefficient, and is more suitable for instantaneous drying

3.The digital display intelligent temperature control system is used to complete the temperature measurement and temperature control process automatically and accurately. The system can heat up according to the given heating curve and can store 20 different heating curves of 400 sections

4.Comprehensive water, electricity and gas automatic control and protection system, using internal circulation pure water cooling system, digital flow monitoring system uses high-performance IF contactor to automatically convert furnace body
