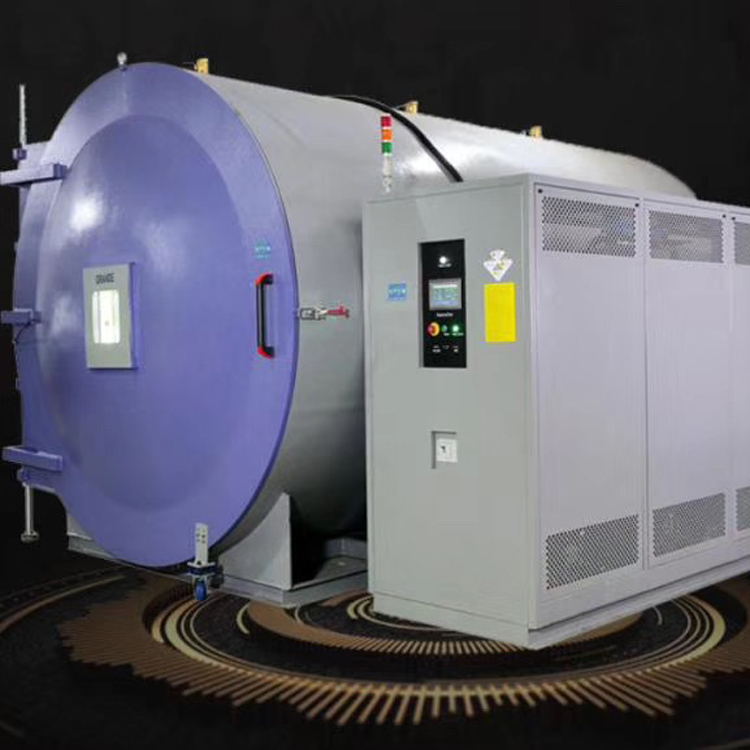

Solvent Degreasing Furnace

It is mainly used in stainless steel-based and iron-based powder metallurgy injection molding (MIM) products before sintering degreasing (wax) process.
SDF SOLVENT DEGREASING FURNACE
Product Features and Special Configuration

Main technical parameters

Dissolved tank storage: 250Lor 500 L；

Dissolved tank load: Each 5 or 10 baskets( 250*300*300)；

Loading Method:Lid together with the shelf up, hydraulic forklift removed one time；

Liquid storage capacity: 1000 L；

Distillate storage capacity: 1000 L；

Dissolved distillation tank heating: five water bath heating, the maximum temperature of 70 ℃；

The main box material: high-quality corrosion-resistant stainless steel (316L)；

Diaphragm pump flow: 50 L/ min, two sets；

Solvent separation methods: copper condenser distillation condensation；

Operation interface: touch screen operation

Working Principle:

Solid-liquid extraction, also called leaching, separating components in a solid mixture with a solvent, such as leaching sugar from sugar beet with dichloro water; digesting soybean oil from soybeans with alcohol to increase oil yield; using water from traditional Chinese medicine Leaching the active ingredient to make a flow extract is called “leaching” or “leaching”. The compound is transferred from one solvent to another by utilizing the difference in solubility or partition coefficient of the compound in two mutually incompatible (or slightly soluble) solvents.

Application performance

1: Solvent degreasing tank using organic solvents to achieve 100% purity, distillation to avoid the old solvent degreasing equipment diluted distillation recovery, to avoid solvent degreasing organic solvent impure shortcomings, improve the quality of degreasing efficiency.

2: continuous degreasing, high degreasing efficiency, reducing the recovery time of the  distillation. The solvent degreasing tank can be directly degreased after the last degreasing, and the equipment has high utilization efficiency. Solvent degreasing tank, distillation tank using water as the heating medium, hot largetemperature control, reducing the risk of overheating lead to scorch, burn through; According to many years of experience, high degree of automation, basically achieved automation; Distillation, recovery principle is reasonable, high recovery efficiency, reduce organic solvent waste, scientific and environmental protection;
Equipment advantage

Equipment advantage: After the extraction solvent degreasing solution, using the principle of distillation, recovering clean, pure organic solvent; The use of different roles of the sub-tank (solvent degreasing tank, distillation tank, tank), to achieve two objectives: The use of different roles of the sub-tank (solvent degreasing tank, distillation tank, tank), to achieve two objectives
