VSF Vacuum Sintering Furnace is mainly used for the sintering of metal and ceramic injection molded parts (MIM) of stainless steel (nickel base), iron-based, titanium alloy, alloy steel and high-speed steel. The heating element and the thermal insulation material are metal molybdenum, which can ensure the atmosphere in the vacuum chamber to be more pure, and is particularly suitable for the processing and manufacturing of medical device components (dental orthodontic products and living sampling pliers, etc.).
Configure rapid cooling system, improve product quality, shorten the production cycle, improve production efficiency. Dedicated skim seal furnace gall and grease catcher to reduce the furnace wall, heat shield and heating body pollution, degreasing and fat collection more effective, dedicated seal furnace gall is conducive to improving the uniformity of the furnace. Directional air degreasing, enhanced degreasing effect, degreasing more thoroughly.
Technical Parameters:
| Model | Inner Size(mm) | Max Temp(℃) | Vacuum Limit(Pa) | Temp Uniformity(℃) | Leak Rate Pa*L/S | Loading Capacity(Kg) |
| VSF003 | 120*120*200 | 950//1200/1400/1600/1800/2200/2300/2600 | ≦3.0*10﹣1Pa, 2.0* 10–3Pa, 10Pa，133Pa，0.000001Pa，-0.1MPa，0.001mmHg，0.05Torr，1*10-5Pa，1*10-6Pa，1*10-7Pa, 1*10-9Torr, 1*10-9mbar. | ≦±5 | ≦1.0*10﹣6 | 30 |
| VSF012 | 200*200*300 | 80 | ||||
| VSF036 | 300*300*400 | 200 | ||||
| VSF096 | 400*400*600 | 350 | ||||
| VSF175 | 500*500*700 | 500 | ||||
| VSF324 | 600*600*900 | 700 | ||||
| VSF588 | 700*700*1200 | 1000 | ||||
| VSF1200 | D1000*L1200 | 1000 | ||||
| VSF2000 | D1200*L2000 | 1000 | ||||
| Power Supply:AC 1Ψ 110V;AC 1Ψ 220V;AC 3Ψ 220V;3Ψ380V; 3Ψ400V; 3Ψ480V＋N＋G, 60/50Hz. | ||||||
| The technical information will be subjected to change without notice | ||||||
| Customized Service:Welcome to Non-standard,Special requirements,OEM/ODM orders. | ||||||

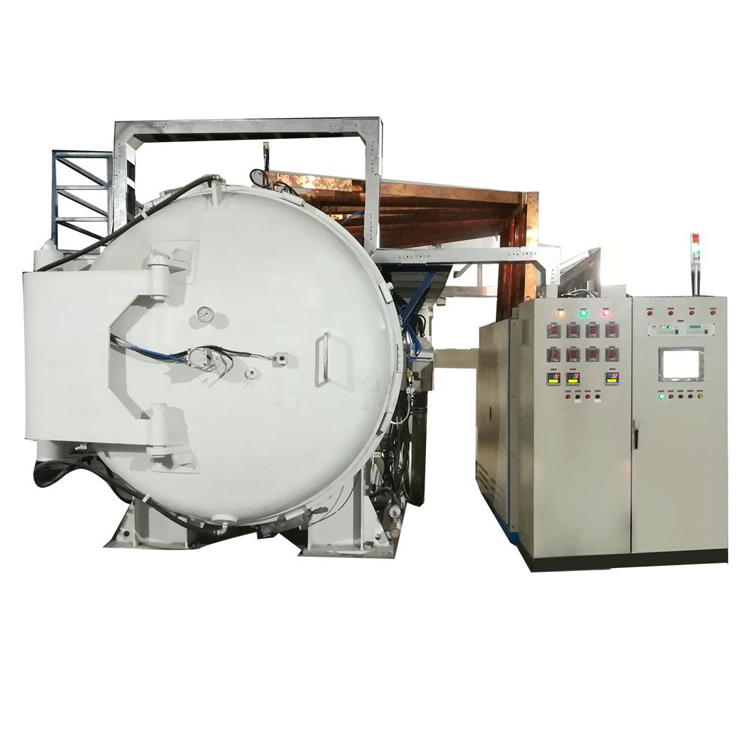

VSF Vacuum Sintering Furnace
Product Features and Special Configuration
Optional configuration:
1. Sintering furnace with molybdenum heating element, the heating chamber full molybdenum screen insulation or heat-resistant steel with molybdenum screen all-metal insulation, both to ensure a good temperature uniformity and to ensure the purity of the vacuum chamber;
2. Equipped with vacuum sintering, micro positive pressure sintering, partial pressure sintering, micro-vacuum degreasing and micro-positive pressure degreasing function;
3. The furnace with temperature, pressure, water pressure, vacuum and other interlocking features, with a high degree of safety protection and prevention functions;
4. With remote control operation, remote fault diagnosis and remote program updates and other functions;
Optional configuration:
1. Furnace: full carbon steel/inner stainless steel/full stainless steel;
2. Vacuum pump: Foreign brand / Chinese brand;
3. Operation panel: touch screen / industrial computer;
4. Temperature Controller:GRANDE5600
5. The degree of vacuum can be selected 1*10-1Pa or 2*10-3Pa;
6. Heating material: Molybdenum / Isostatic graphite
