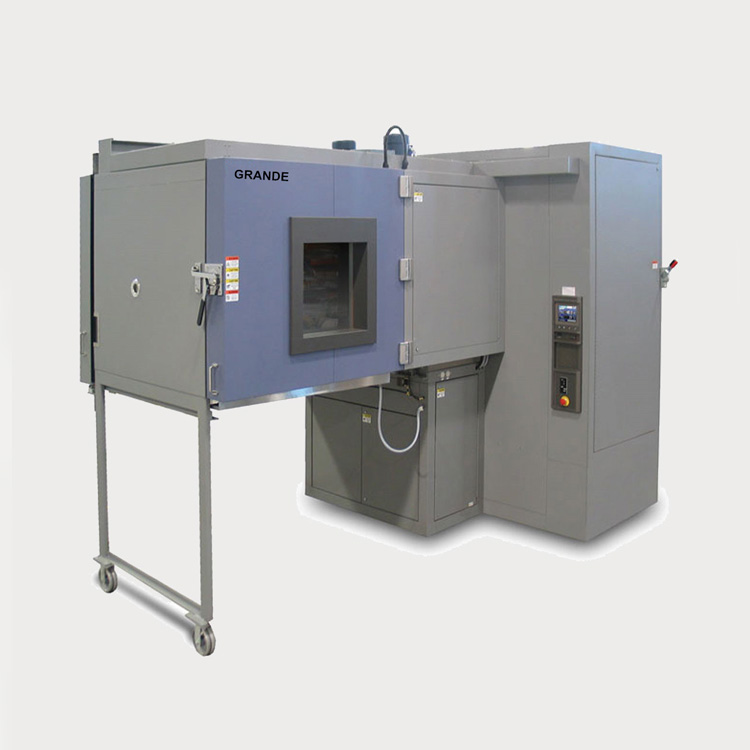

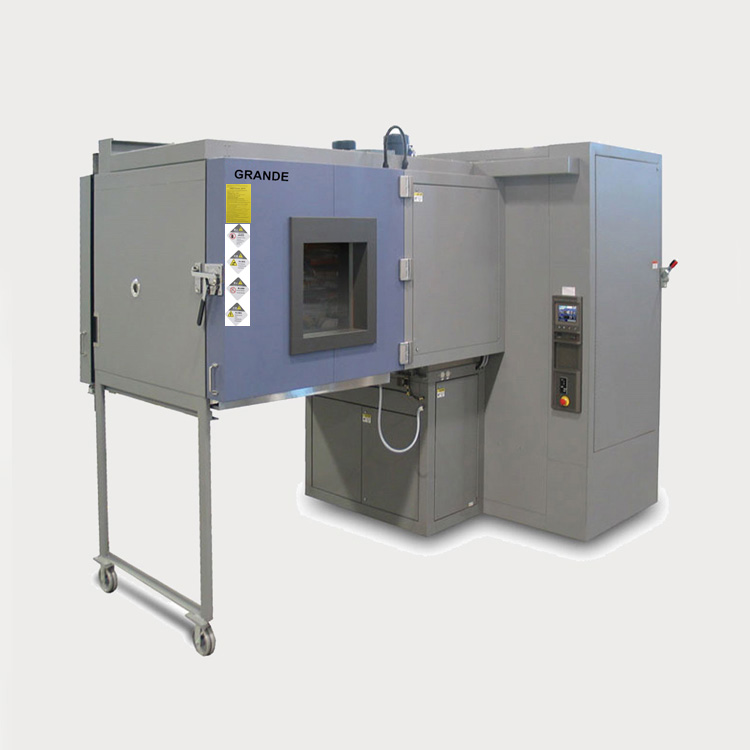

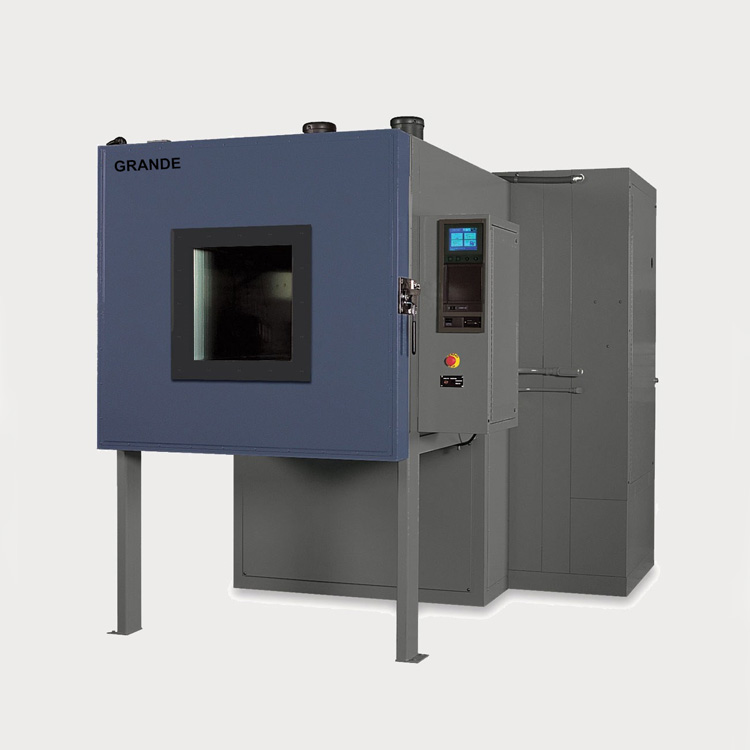

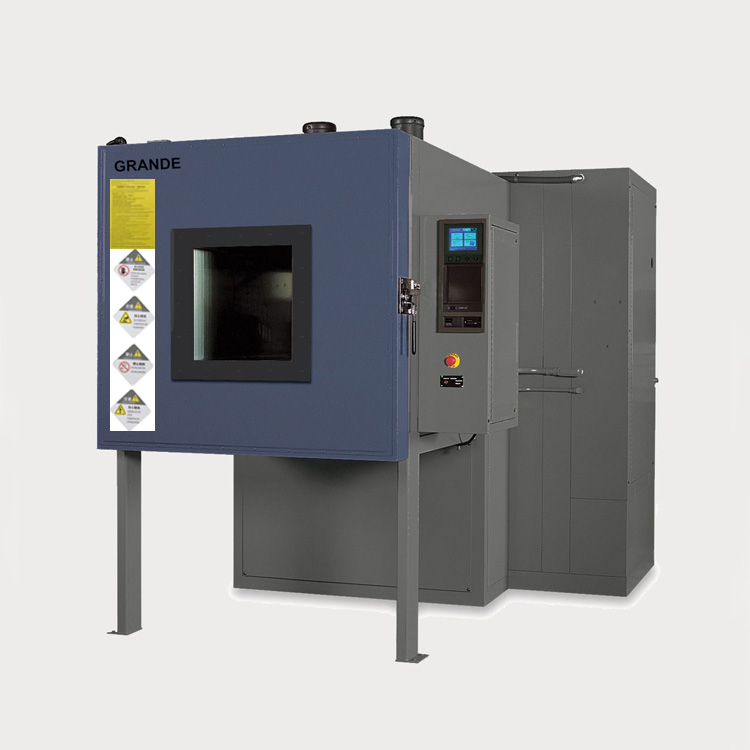

Temp.Humidity and Vibration Test Chamber/Temp.Humidity and Vibration Compatible Chambers

For years Temp.humidity and vibration compatible Chambers have been the workhorses of the environmental test chamber industry. Originally created to meet military test standards, their flexible design has made them suitable for a wide variety of applications.

Product Details

Industrial-quality chambers for combination testing with vibration systems

For years Temp. humidity and vibration compatible Chambers have been the workhorses of the environmental test chamber industry. Originally created to meet military test standards, their flexible design has made them suitable for a wide variety of applications. Fast temperature changes of 5 to 25°C/m. are possible, even with significant loads. The chambers have a removable floor, allowing integration with vibration test systems. Custom designs are common, allowing configuration to meet your exact requirements.

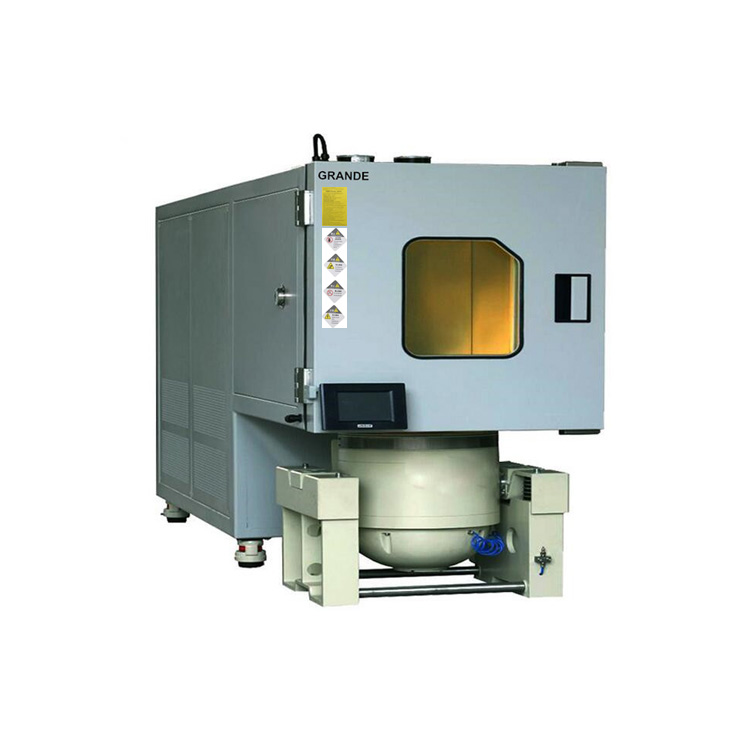

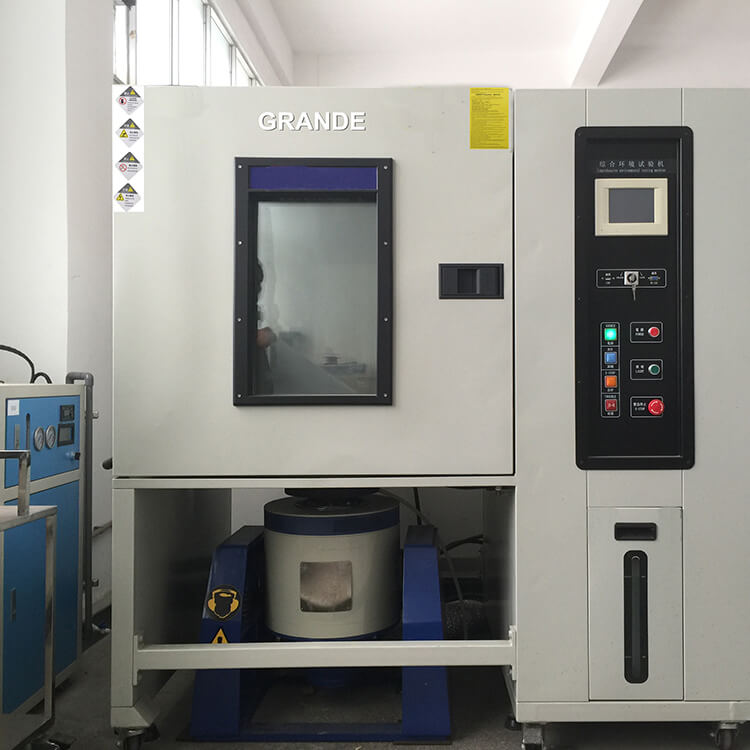

Special model can interface with both vertical and horizontal vibration systems

In addition, the touch-screen controller makes running an Grande environmental test chamber a breeze. The full-color, touch-screen interface is remarkably easy to use and understand. The Touch Screen Controller can be managed remotely via our new Ethernet/LAN-based Web Controller, serial port, or GP-IB/Lab View.


Nearly every Agree chamber we build is designed per the application. Here is a review of what is possible with a custom designed chamber from Grande.


Feature

· Capacity: 63 L to 6000L

· Temperature Range: -70 to 180C

· Humidity Range: 10-99%RH

· Cooling rate: 2-3C/min (standard), 5C/min, 10C/min , 20C/min as option

· Vibration: maximum up to 5000kgf , 100g


Cabinet

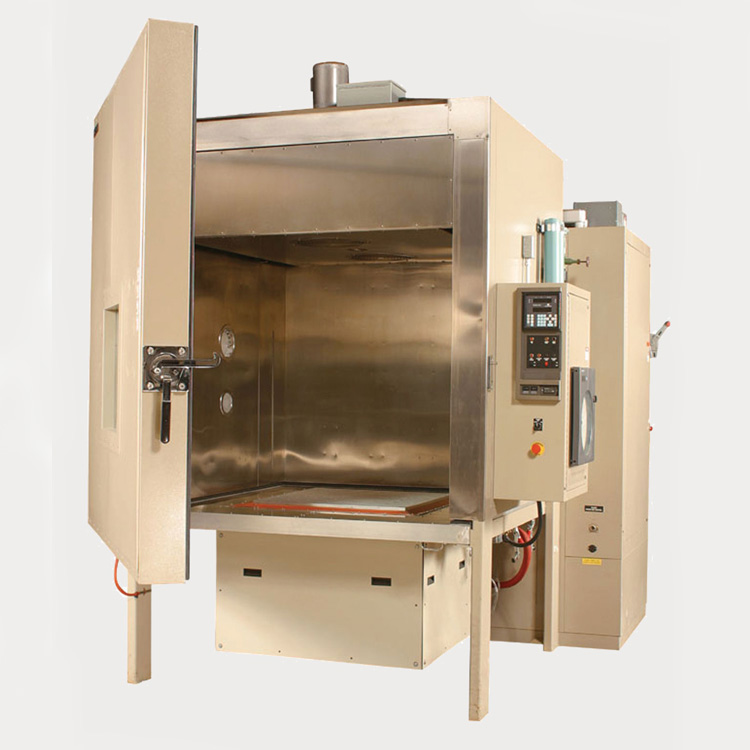

· Full-opening door with multi-panel heated window & interior light

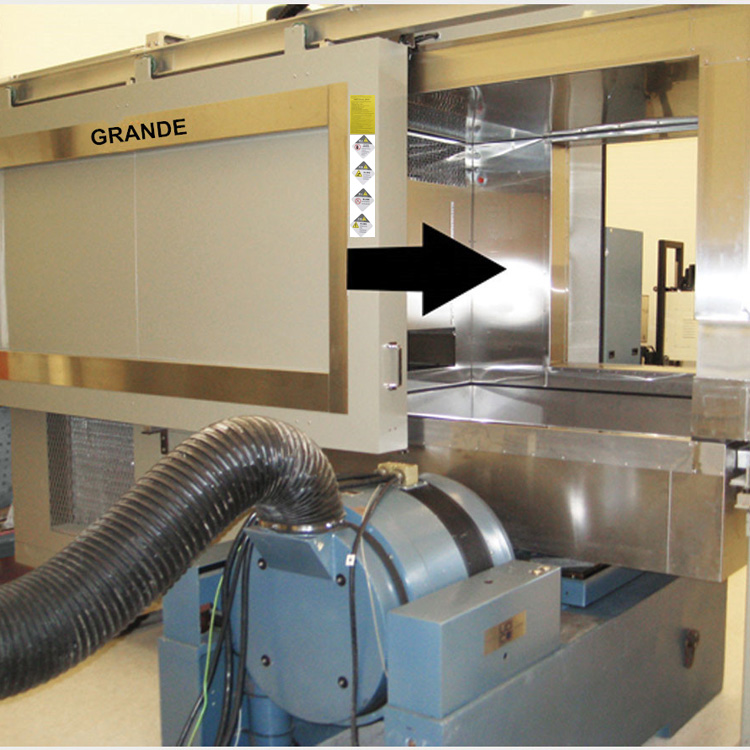

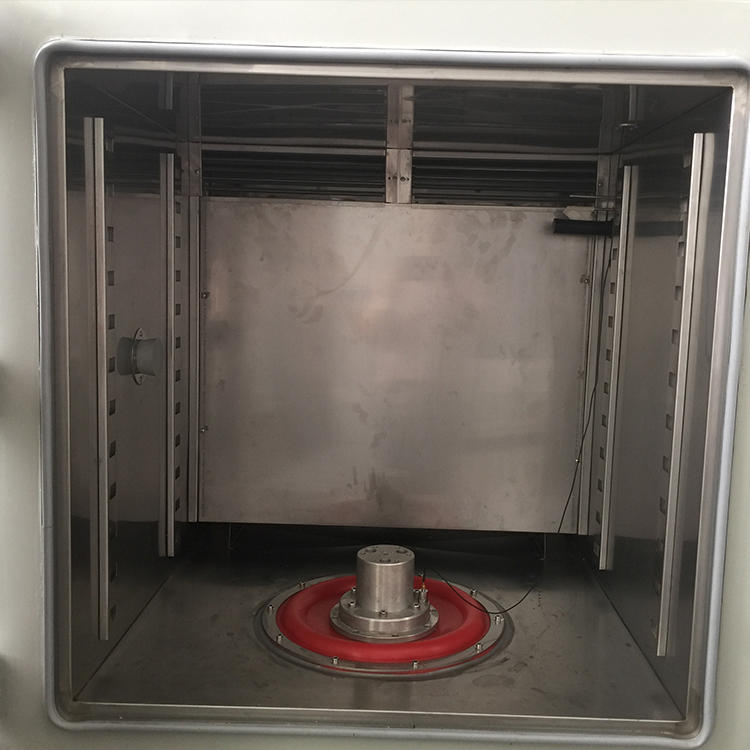

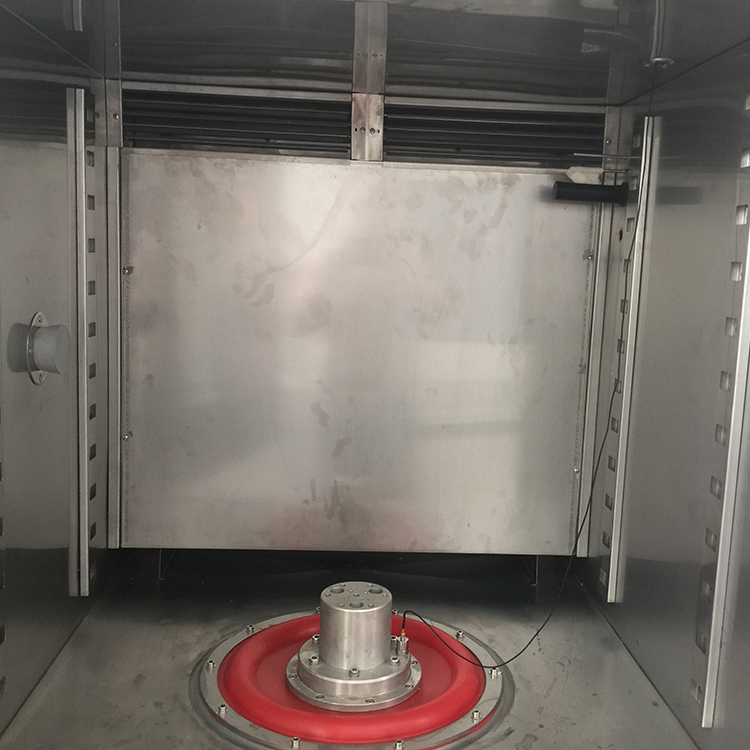

· Chamber floor designed to be changeable to accommodate different “floor plugs” for vibration systems. Standard floor plug provided is “solid” for non-vibration applications (other floors optional). Embedded perimeter heaters in floor plugs to avoid condensation and freeze-up, plus Teflon glides in floor slot make floor replacement very easy.

· One 50mm cable port with flexible plug centered in the left hand wall (additional ports optional)


Refrigeration and Plenum

· Rear-mounted plenum with cooling coil and nichrome wire heaters

· Two ¾ h0p blower motors with one-piece stainless steel shafts

· Non-CFC cascade refrigeration system using semi-hermetic Copeland Discus compressors

· Hinged service access doors with lockable snap-action latches



Technical parameters:

Model No  GTHV-306GTHV-408GTHV-800GTHV-1000
Inner chamber size(mm)W*H*D 850*600*600850*600*8001000*1000*8001000*1000*1000
Exterior chamber size(mm)W*H*D1750*800*10201750*800*13201900*1200*13201900*1200*1520
Max table-board size of Vibrostand(mm)Horizontal:400*400
Vertical:400*400
PerformanceTemperature range-70℃~150℃(S), -40℃~150℃(L),-20℃~150℃(R),+180℃,+200℃
Humidity range20%~98%R.H (10%~98%R.H;5%~98%R.H Optional).
Temp.&Humi fluctuation±0.5℃, ±2%.
Temp.Humi.Uniformity±1℃, ±2%.
Temp.humi Deviation≤±2℃/ ±3%RH.
Heating up timeAbout 3~4℃/min.(Customized requirements:Fast temperature change rate:5℃~25℃/min,linear average or nonlinear average).
Cooling down time约About 0.7℃~1℃/min (Customized requirements:Fast temperature change rate:5℃~25℃/min,linear average or nonlinear average).
MaterialInner chamber materialSUS#304 stainless steel plate
Exterior chamber materialStainless steel plate+ powder coated
Insulation MaterialPU & Fiberglass wool
SystemAir circulation systemCooling fan
FanSirocco fan
Heating SystemSUS#304 stainless steel high-speed heater
Air flowForced Air Circulation(It enters at bottom and leaves at top)
Humidification systemSurface evaporation system
Refrigeration systemImported compressor,Tecumseh compressor(or Bizer Compressor),finned type evaporator,air(Water)-cooling condenser
Refrigerating fluidR23/ R404A USA Honeywell.
CondensationAir(Water)-cooling condenser
Dehumidifying systemADP critical dew point cooling/dehumidifying method
Controlling systemDigital electronic indicators+S.S.R.With PID automatic calculation capability
Operation interfaceGrande Expertise in Temperature & Humidity Controller,Chinese-English Shift.
ControllerProgrammable capabilitySave 120 profiles with up to 1200 steps each
Setting rangeTemperature:-100℃+300℃
Reading accuracyTemperature:0.01℃
InputPT100 or T Sensor
ControlPID control
Communication interfaceEquipped with standard communication interface devices USB,RS-232 and RS-485,enable the test chamber to be connected with personal computer(PC),to achieve multi-machine control and management at the same time.Standard: USB external memory port.Optional: RS-232, RS-485, GP-IB, Ethernet
Print functionJapan Yokogawa Temperature Recorder(Optional accessories)
AuxiliaryLimit Alarm,Self Diagnosis,Alarm Display(Failure Cause),Timing device(Automatic Switch)
AccessoriesMulti-layer vacuum glass observation window,Cable port(50mm),Controlling status indicator lamp,Chamber light,Specimen loading shelf(2pcs,position adjustable),Guaze 5pcs,Operation manual 1 set.
Safety protection deviceOver-heat protection circuit breaker,Compressor overload protection,Control system overload protection,Humidifying system overload protection,Overload indicator lamp.
Power supplyAC 1Ψ 110V;AC 1Ψ 220V;3Ψ380V 60/50Hz
Customized serviceWelcome to Non-standard,Specail requirements,OEM/ODM orders.
The technical information will be subjected to change without notice

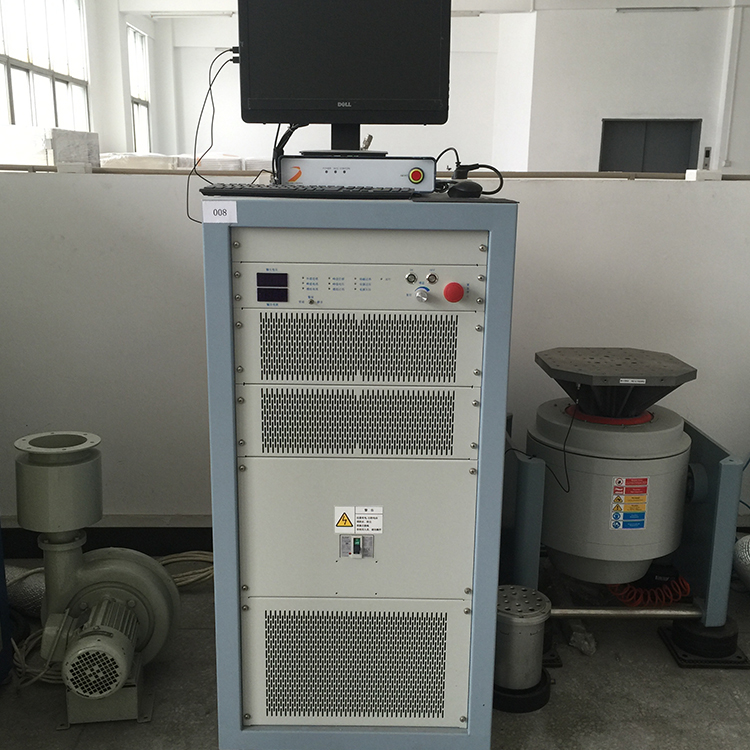

Parameters of Vibration system:


Model NoGTHV-11GTHV-12GTHV-13GTHV-14GTHV-15GTHV-16
Model No of Vibration exciterGV100/25GV200/25GV300/25GV300/40GV500/25GV600/25
Frequency range(Hz)2-40002-40002-40002-25002-30002-2500
Max shock excitation(kg.f)100200300300500600
(MMp-p)Maximum displacement252525402525
Max accelerated speed(G)4080803383100
Max speed(cm/s)15015060120150150
Loading(kg)6565110120190190
Mass of moving coil(kg)2.52.54966
Circumference of moving coil(mm)140140150225202202
Gross weightVibration exciter(kg)220250240760690700
Size(mm)675*560*660675*560*660675*560*660675*560*660800*600*710800*600*710
Model no of Power amplifierSA1KSA2KSA3KSA3KSA5KSA5K
G.W of Power amplifier(kg)210210250300300320
CondensationForced Cooling
(mm)Size of power amplifier720*545*1625720*545*1625720*545*1625720*545*1625720*545*1625720*545*1625
Power supply[K.W.]AC 1Ψ 220V/50Hz; 3Ψ 380V 50Hz
Total power(KVA)56691718
